OEM Table Top Hydraulic Tensile Testing Machine Tester For Building Materials

Name: OEM Table Top Hydraulic Tensile Testing Machine Tester For Building Materials
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-1000S
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-1000S
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-1000S

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Test Width:

400mm(Optional)

Power Unit:

N,Kg,Lb,kN...

Power:

220V/50Hz

Protected Mode:

Computer Printout

Transport Package:

Wooden Package

Specification:

86*73*216cm

Trademark:

Origin:

China

Package Gross Weight:

220.000kg

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

OEM hydraulic tensile testing machine

Tabletop hydraulic tensile testing machine

building materials table top tensile tester

Product Description

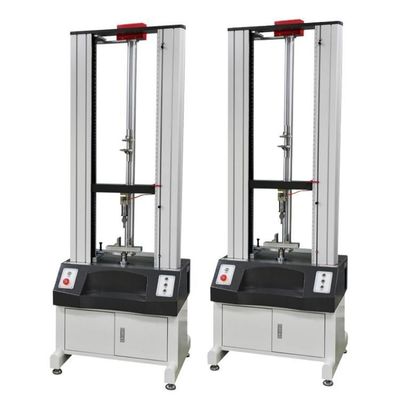

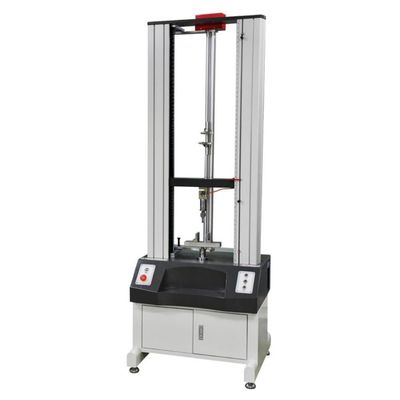

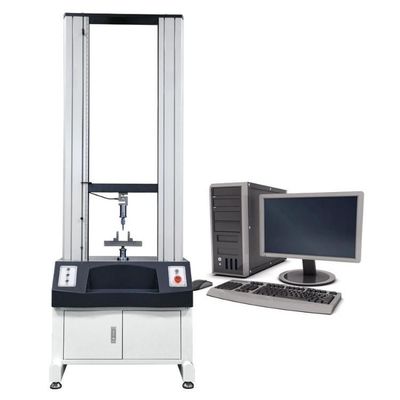

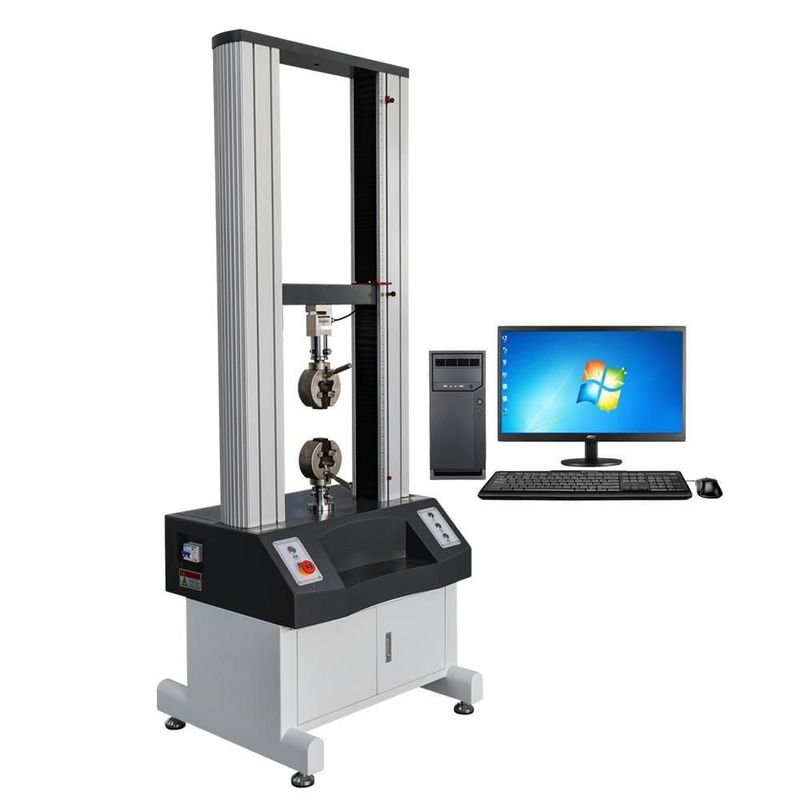

Double-Column Universal Tensile Testing Machine

Servo universal tensile test machine is suitable for rubber and plastic materials for stretching, compression, bending, shearing, tearing, stripping, etc.

It is widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber, plastics, textile, home appliances and other industries of material inspection and analysis.

Model	GC-WS-1000S
Type	Double column (gantry-type)
Load range	0~10KN(0-1000KG optional )
Control Motor	AC Servo Motor
Servo drivers	AC drives
Test Speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc

·GB/T 1040-2006 Test mothod for tensile properties
·GB/T 9341-2008 Test method for bending properties of plastics
·ISO 527-1993 Plastics - determination of tensile properties
·GB/T 13022-91 Methods of tensile test for plastic films
·ISO 178-2004 Plastics bending test
·ASTM D 638-2008 Standard test method for tensile properties of plastics

Paremeter configuration:

High-precision force sensor: 0~20KN. The force accuracy is within ±0.5%.
Full strength maximum resolution 1/1000,000
Capacity segmentation: seven gears in the whole process: ×1, ×2, ×5, ×10, ×20, ×50, ×100
Adopt high precision 24 bits A/D
Power system: servo motor + Japanese planetary reducer + Taiwan rolling stone ball screw + polished rod linear bearing + High-precision sensor.
The speed control system adopts AC servo speed control system and AC servo motor, with stable and reliable performance, and has protection devices such as overcurrent, overvoltage and overload.
Control system: Pulse Command control method is adopted to make the control more precise. The speed control range is 0.001~1000 mm/min.
Data transmission mode: RS232 transmission
Display mode: UTM107+WIN-XP test software computer screen display
Safety devices: overload emergency shutdown device, upper and lower travel limiting device, leakage automatic power-off system, automatic breakpoint shutdown
