Single Column Universal Wire Tensile Testing Machine For Plastic 500Kg

Name: Single Column Universal Wire Tensile Testing Machine For Plastic 500Kg
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-500S
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-500S
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-500S

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Control Motor:

AC Servo Motor

Power Unit:

N,Kg,Lb,kN...

Servo Drivers:

AC Drive

Transport Package:

Wooden Package

Specification:

46*45*138cm

Trademark:

Origin:

China

Package Gross Weight:

220.000kg

Customization:

Available

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Plastic wire tensile testing machine

500Kg wire tensile testing machine

500Kg universal tensile machine

Product Description

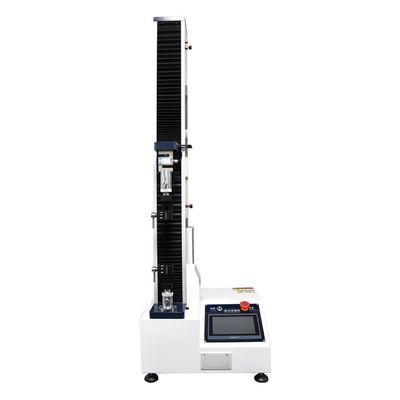

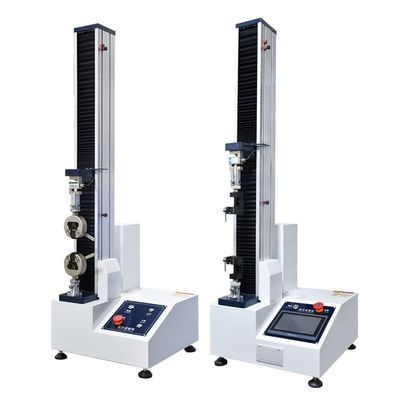

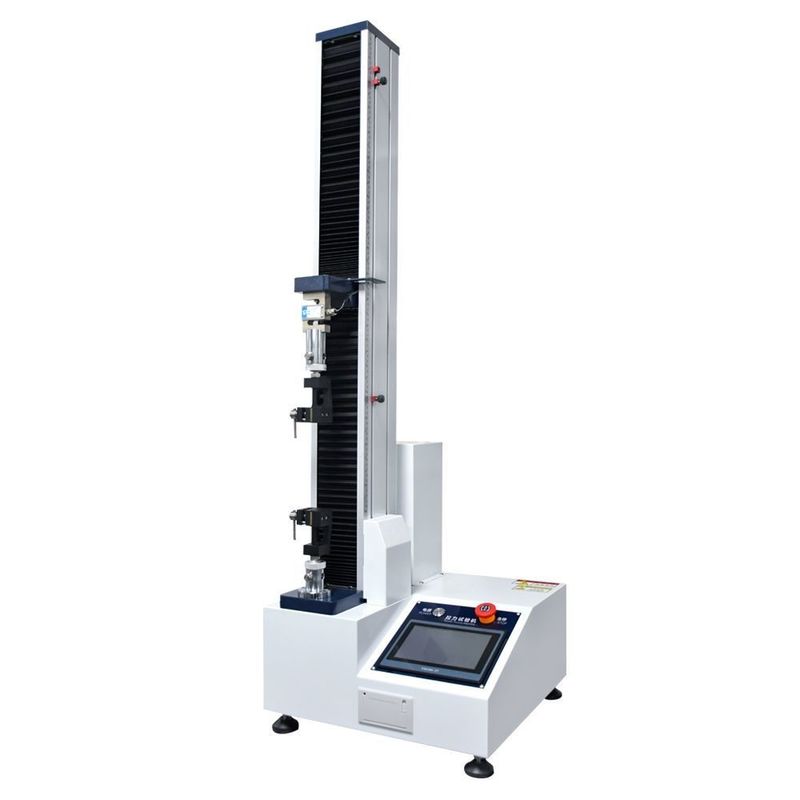

Single Column Tensile Testing Machine For Plastic

-The single-column universal tensile testing machine is a type of testing device used to measure the tensile strength of materials.
It consists of a single vertical column with a movable crosshead that applies a tensile force to a sample material.
-The machine is commonly used in materials testing laboratories to evaluate the mechanical properties of various materials such as metals, plastics, rubber, and composites. The test results obtained from the machine can be used to determine the material's tensile strength, elongation, and other mechanical properties.

Single Column Universal Wire Tensile Testing Machine For Plastic 500Kg 0

Model	GC-WD-500S
Type	Single column (gantry-type)
Load Range	0~50KN(0-500KG optional )
Control Motor	AC servo motor
Servo drivers	AC drive
Test Speed	0.01~500mm/min
Power Accuracy	≤0.5%
Resolution	1/250000
Power Unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test Stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Proctective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Protected mode	Mirco printout
Power	220V/50HZ

Configuration list:

	Name	Brand
1	AC motor	Taiwan Delta
2	AC drive	Taiwan Delta
3	Low-noise, high-efficiency deceleration system	Turbine worm
4	Ball screw rod	Rolling Stones (Taiwan)
5	Relay	Omron (Delta)
6	Force sensor	China
7	Limit protection switch	FOTEK(Taiwan)
8	Control system	All-digital closed-loop control system
9	Encoder	Taiwan Delta
10	High strength rack	Rolling Stones (Taiwan)
11	computer	A set of industrial computers
12	Test fixture	Specify a set of fixtures
13	tool	Provide special tools and checklists required for installation, maintenance and operation
