Digital UTM Universal Testing Machine High Low Temperature 220V

Name: Digital UTM Universal Testing Machine High Low Temperature 220V
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-2HL
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-2HL
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-2HL

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Static Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Temperature Range:

-40~150degrees

Tensile Strenth:

5~50kn

Strength Accuracy:

≤0.5%

Strength Resolution:

1/300000

Transport Package:

Wooden Packaging

Trademark:

Origin:

Guangdong, China

Package Size:

100.00cm * 130.00cm * 220.00cm

Package Gross Weight:

400.000kg

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

UTM universal testing machine

220V universal testing machine

Digital utm testing machine

Product Description

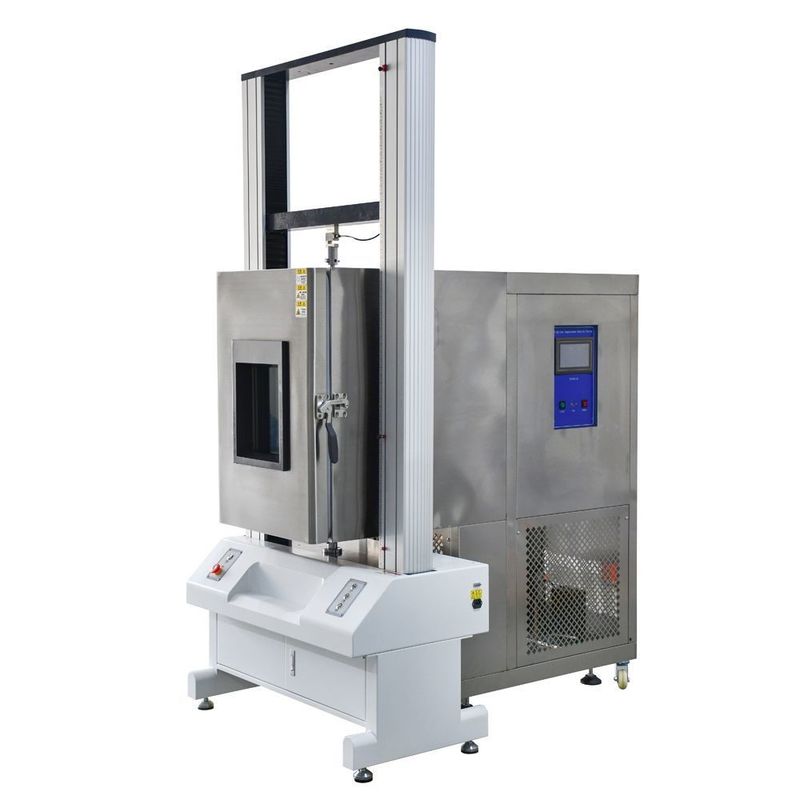

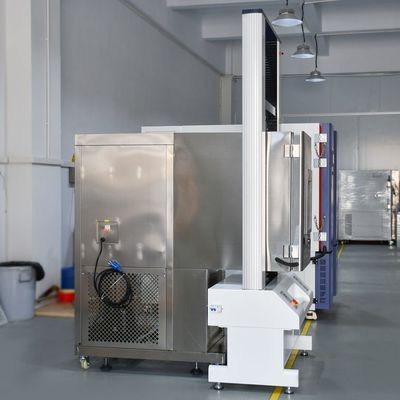

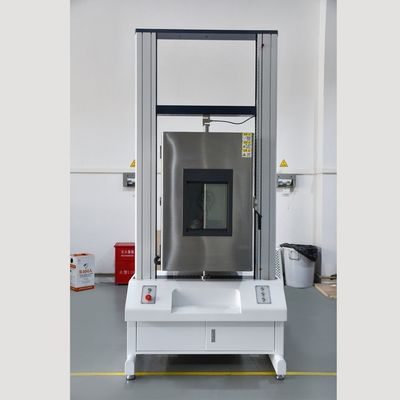

Tensile Tester With High And Low Temperature Tensile testing machine

Digital UTM Universal Testing Machine High Low Temperature 220V 0

Model: GC-WS-2HL

1. Product introduction

A high and low temperature tensile testing machine is a specialized equipment used to test the mechanical properties of materials under extreme temperature conditions. We designed it to measure the tensile strength, elongation, and other properties of a material at both high and low temperatures.

During the test, it subjected the material to a constant tensile force while being exposed to the desired temperature. The machine measures the force applied and the resulting elongation of the material. This data is then used to calculate various mechanical properties, such as tensile strength, yield strength, and modulus of elasticity.

2. Component

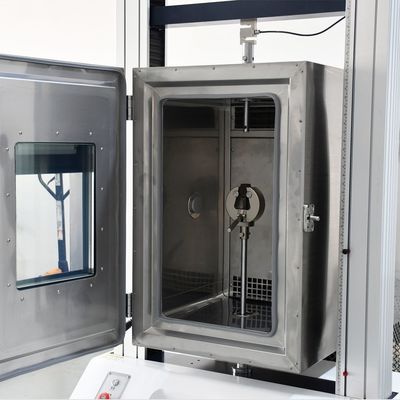

The machine comprises a load frame, grips, and a temperature control system. The load frame is used to apply a controlled tensile force to the material being tested. The grips securely hold the material in place during the test.

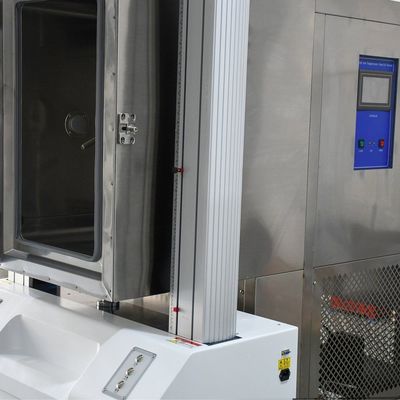

The temperature control system allows the machine to operate at both high and low temperatures. It typically includes heating and cooling elements, as well as sensors to monitor and control the temperature within the test chamber.

3. Application

They commonly used high and low temperature tensile testing machines in industries such as aerospace, automotive, and materials research, where materials may be subjected to extreme temperature conditions during their application. These machines help to determine the performance and reliability of materials in such conditions, ensuring that they meet the required specifications and standards.

4. Parameter

Model	GC-WS-2HL
Type	Double column (gantry-type)
Load range	0~50KN(0-5000KG optional )
Control motor	AC Servo Motor
Servo drivers	AC drive
Temperature range	-40~150degrees
Test speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Protected mode	Computer printout
Power	220V/50HZ

5.Test Standard

GB/T 1040-2006	Tensile Properties Test Methods
GB/T 1041-2008	Test method for compression properties of plastics
GB/T 9341-2008	Test method for flexural properties of plastics
IS0 527-1993	Determination of tensile properties of plastics
GB/T 13022-91	Plastic film tensile test method
ISO 604-2002	Plastics - Determination of Compression
ISO 178-2004	Plastic bending determination
ASTM D 638-2008	Standard Test Method for Tensile Properties of Plastics
