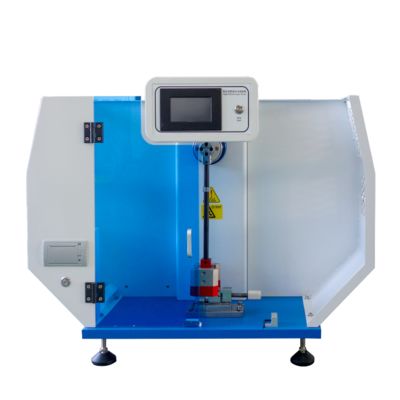

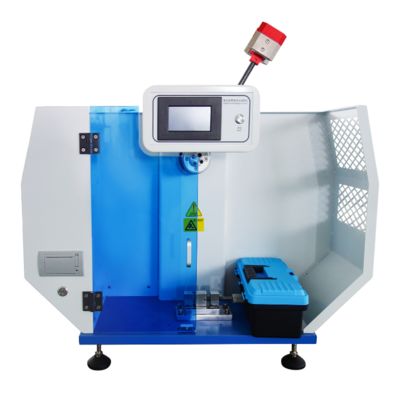

I. Product Introduction:

The IZOD impact tester is used to measure the impact toughness of nonmetallic materials such as plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, plastic electrical appliances and insulation materials. Pendulum impact testing machine is a scientific research units, colleges and universities, non-metallic materials manufacturers on the quality inspection of commonly used equipment, this machine is a kind of simple structure, convenient operation, high test precision of the instrument, digital impact tester encoder technology with high precision, has high precision, good stability and large measurement range etc, digital measurement shows that the impact strength and average energy loss automatic correction, print test reports, and other functions.

II. Standard

ISO180-2000 "Determination of Impact Strength of Plastic-Rigid Cantilever Beams"

GB/ T1843-2008 Impact Test Method for Rigid Plastic Cantilever Beams

JB/T8761 -- 1998 Plastic Cantilever Impact Testing Machine

ASTM D256-2010 Test Method for Determination of Impact Strength of Plastic IZOD Pendulum

III. Product Features:

·High precision intelligent controller, and equipped with LCD, can be intuitive, accurate data reading

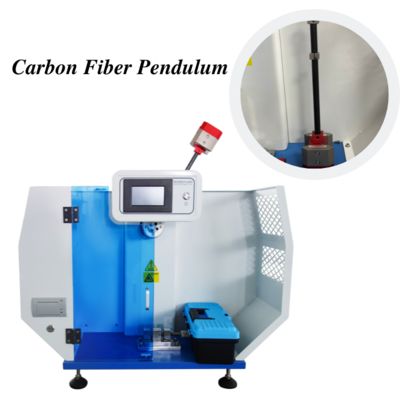

·The first domestic use of carbon fiber pendulum rod (patent applied), in the impact direction, improve the rigidity of the material, and the maximum impact mass concentrated on the center of mass of the pendulum, truly achieve no shock impact test, and the life of the increase.

·Adopt imported high resolution digital encoder, the Angle measurement accuracy is higher and more stable

·The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by the machinery

·The final results are automatically calculated, and 24 sets of data can be saved and averaged from the test data

·IZOD impact testing machine can choose the Chinese-English operation interface, test results can choose J/ M,KJ/㎡, Kg-cm /cm, FT-IB /in and other units

·Built-in micro printer. 24 test data values can be printed one by one or the average value can be printed.

IV.Technical specifications:

Ø Display mode: Color touch screen (Chinese and English)

Ø Angle sensor brand and precision: the original imported Omron encoder, precision to 0.01°

Ø Energy display accuracy: 0.01j

Ø Impact velocity: 3.5m/s;

Ø Pendulum energy : 2.75j, 5.5j,11j,22j

Ø Pendulum Angle: 150°

Ø Distance from the center of the pendulum to the impact blade: 335mm

Ø Distance from impact blade to upper plane of clamp mouth: 22mm

Ø Radius of rounded edge: R=0.8±0.2mm

Ø Machine weight: 85kg

Ø Supply voltage: AC220V±10% 50HZ
