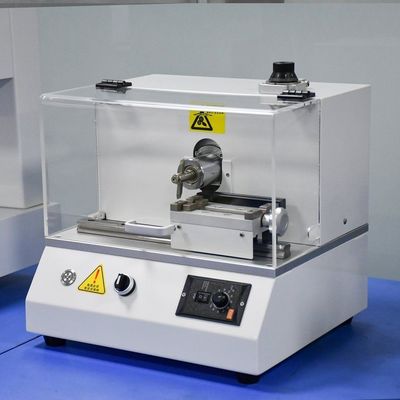

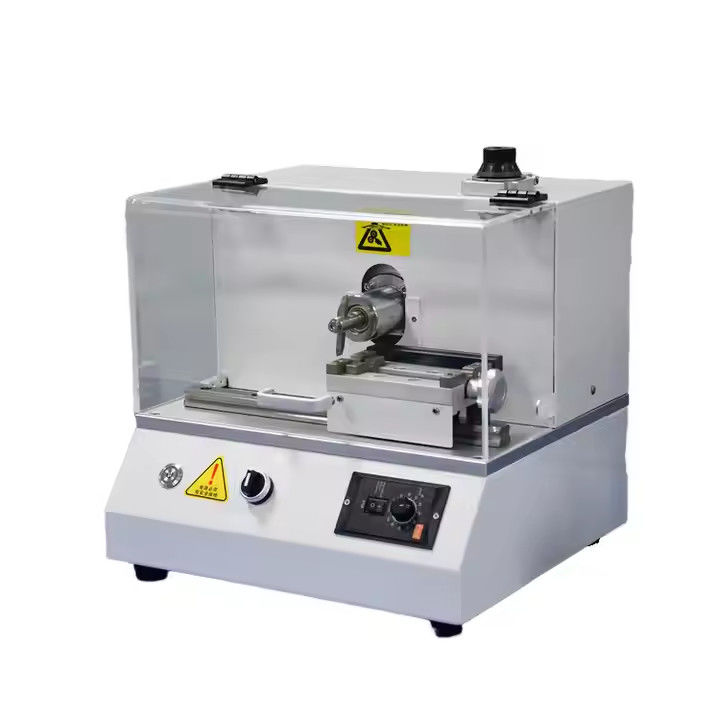

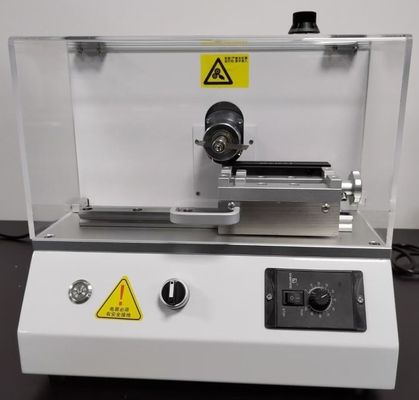

Automatic Power Plastic Testing Machine Pendulum Impact Tester For Sample Notching Cutting

Name: Automatic Power Plastic Testing Machine Pendulum Impact Tester For Sample Notching Cutting
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-QK-Z
Availability: InStock

Brand Name:	GC
Model Number:	GC-QK-Z
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-QK-Z

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Sample Notch Cutting Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Manual Control

Weight:

0-100Kg

Power Source:

AC220V

Table Stroke:

>160mm

Typeb:

45±1 R=1.0±0.025

Typea:

45±1° R=0.25±0.025

Typec1:

45±1 R=0.1±0.02

Transport Package:

Wooden Package

Specification:

45*45*42cm

Origin:

China

Package Gross Weight:

40.000kg

Customization:

Available

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Pendulum Impact plastic testing machine

Sample Notching plastic testing machine

Automatic pendulum impact tester

Product Description

A sample notch cutting machine is a device used to create notches or grooves in various materials such as metal, wood, or plastic. It is commonly used in industries like manufacturing, construction, and woodworking.

. Cutting capacity: It can cut notches of different sizes and depths depending on the machine's design and specifications.
. Cutting mechanism: It may use a rotating blade, a reciprocating saw, or a milling cutter to create the notches.
. Control system: It have manual controls or be autopmatic controlled for precision and accuracy.
. Safety features: It include safety guards to protect the operator from potential hazards.
. Durability: The machine made of sturdy materials to withstand the cutting force and ensure long-lasting performance.
. Maintenance: It have easy access for maintenance and blade replacement.

Product Name	Automatic Sample Impact Notch Machine
Table stroke	>160mm
Feed speed	30mm/min
Sample type	Type 1,Type 2,Type 3
Gap type	TypeA,TypeB(optional),TypeC(optional)
TypeA	45±1° r=0.25±0.025
TypeB	45±1 r=1.0±0.025
TypeC1	45±1 r=0.1±0.02
TypeC2	thickness 1=2±0.1 r<=0.1
TypeC3	thickness 2=0.8±0.1 r=0.2±0.05

Reference standard for tool notch of prototype

·ISO180—2000 Plastics - Hard materials - Determination of IZOD impact strength

·GB/T1843—2008 Rigid plastics - IZOD impact testing machine

·JB/T8761—1998 Impact test machine for plastic IZOD

·ASTM D256-2010 Test Method for Determining IZOD Pendulum Impact Strength of Plastics

·ISO179—2000 Determination of Impact Strength of Plastic-Hard Material Simply Supported Beams

·GB/T1043—2008 Impact Test Method for Rigid Plastic Simply Supported Beam

·JB/T8762—1998 Plastic Simply Supported Beam Impact Testing Machine

Tags:
