Vulcanized Rubber DIN 53512 Elasticity Testing Machine For Rubber Industry

Name: Vulcanized Rubber DIN 53512 Elasticity Testing Machine For Rubber Industry
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-RET
Availability: InStock

Brand Name:	GC
Model Number:	GC-RET
MOQ:	1
Price:	USD CNY
Delivery Time:	7 Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong ,China

Certification:

ISO, CE

Name:

Rubber Elasticity Testing Machine

Model:

GC-RET

Indication Range:

0~100%

Marked Scale:

Adjustable Range Of Specimen Thickness:

0-60mm

Packaging Details:

Wooden Package

Supply Ability:

In stoke

Highlight:

DIN 53512 Elasticity Testing Machine

Vulcanized Rubber Elasticity Testing Machine

Rubber Industry Elasticity Testing Machine

Product Description

Rubber Elasticity Testing Machine

GC-RET

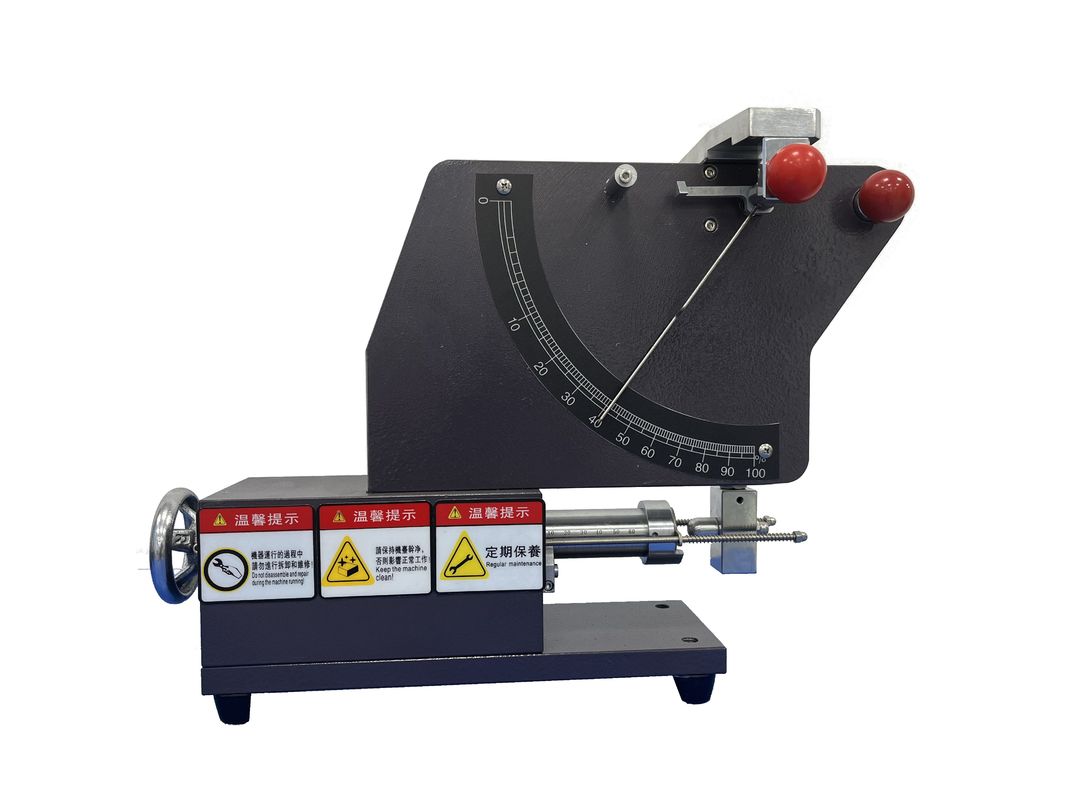

Vulcanized Rubber DIN 53512 Elasticity Testing Machine For Rubber Industry 0

1. Equipment Overview:

This machine is an energy 0.5J / 0.2J pendulum impact elasticity testing machine, suitable for the rebound value of vulcanized rubber with a rated hardness of 30-85IRHD .

2. Main Features:

Ø After the test, the machine can display the test results and automatically store or print directly;

Ø After the test, the machine can display the angular energy value;

Ø It is equipped with a safety protection device and an electric shock button to ensure the safety of the test .

3. Standard: It meets the requirements of GB/T 1681 "Determination of Resilience of Vulcanized Rubber" and ISO4662 and other standards.

4. Application industry: rubber industry

5. Technical Parameters:

Indication range	0~100﹪
Marked scale	1%
Adjustable range of specimen thickness	0~60mm
Scale mark	1mm
Elasticity testing device	Elasticity testing device (according to DIN53512 and ISO4662 specifications)
Body product	62×12×33cm
Heavy quantity	38kg

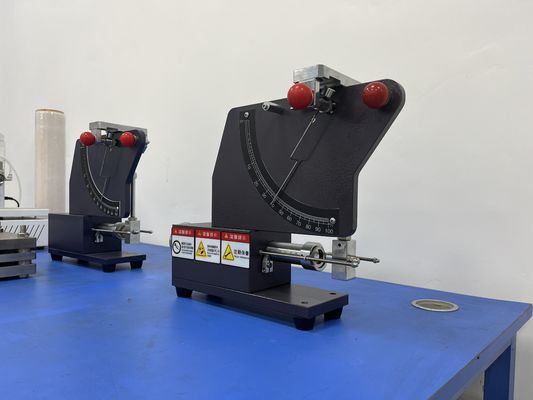

Vulcanized Rubber DIN 53512 Elasticity Testing Machine For Rubber Industry 1

6. Equipment Installation Requirements

1. Installation site

The ground is flat, well ventilated, there is no strong vibration around the equipment, no strong electromagnetic field influence around the equipment, no flammable, explosive, corrosive substances and dust around the equipment, and a proper space for use and maintenance is left around the equipment, as shown in the following figure

1. External temperature: 27℃±3℃

Relative humidity: ≤85%

Air pressure: 86KPA~106KPA

2. There must be a certain space around the equipment to facilitate maintenance

2. Requirements for storage environment

When the equipment is not working, the ambient temperature should be kept within 5°C~+30°C
