Servo LCD Display Screen Universal Tensile Strength Machine Material Testing Machine

Name: Servo LCD Display Screen Universal Tensile Strength Machine Material Testing Machine
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WD-200D
Availability: InStock

Brand Name:	GC
Model Number:	GC-WD-200D
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WD-200D

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Control Motor:

AC Servo Motor

Power Unit:

N,Kg,Lb,kN...

Servo Drivers:

AC Drive

Transport Package:

Wooden Package

Trademark:

Origin:

China

Package Size:

46.00cm * 45.00cm * 138.00cm

Package Gross Weight:

220.000kg

Customization:

Available

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

LCD tensile strength machine

Material Testing tensile strength machine

Tensile material testing machine

Product Description

Single-Column Servo Lcd Display Screen Universal Tensile Test Machine

-The single-column universal tensile testing machine is a type of testing device used to measure the tensile strength of materials.
It consists of a single vertical column with a movable crosshead that applies a tensile force to a sample material.

-The machine is commonly used in materials testing laboratories to evaluate the mechanical properties of various materials such as metals, plastics, rubber, and composites. The test results obtained from the machine can be used to determine the material's tensile strength, elongation, and other mechanical properties.

Product Features:

Plastic tensile machine for rubber material tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of the test, but also can be isometric loading, isometric deformation, isometric displacement automatic control test, and has the function of low cycle load cycle, deformation cycle, displacement cycle. Get elongation, tensile strength, bending modulus, elastic modulus, yield strength, net energy, reentry energy, total energy and other indicators. Can equipped with high and low temperature test chamber, high-temperature furnace and other expansion devices.

It uses PC for data processing and analysis, and it can automatically save the test results. After the test, the test curve can be reset, and curve traversal, or curve comparison and amplification can reproduce the test process. Windows, VISIT platform test software, with strong data and graphics processing function, can immediately print out a complete test report and test curve.

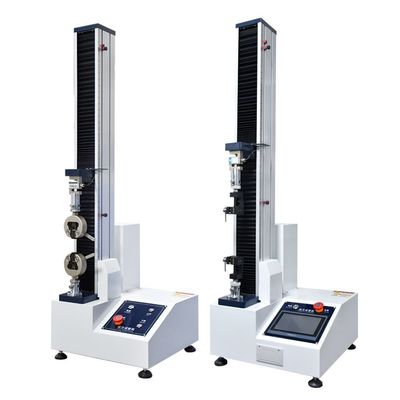

Servo LCD Display Screen Universal Tensile Strength Machine Material Testing Machine 0

Model	GC-WD-500S
Type	Single column (gantry-type)
Load Range	0~50KN(0-500KG optional )
Control Motor	AC servo motor
Servo drivers	AC drive
Test Speed	0.01~500mm/min
Power Accuracy	≤0.5%
Resolution	1/250000
Power Unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test Stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Proctective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Protected mode	Mirco printout
Power	220V/50HZ

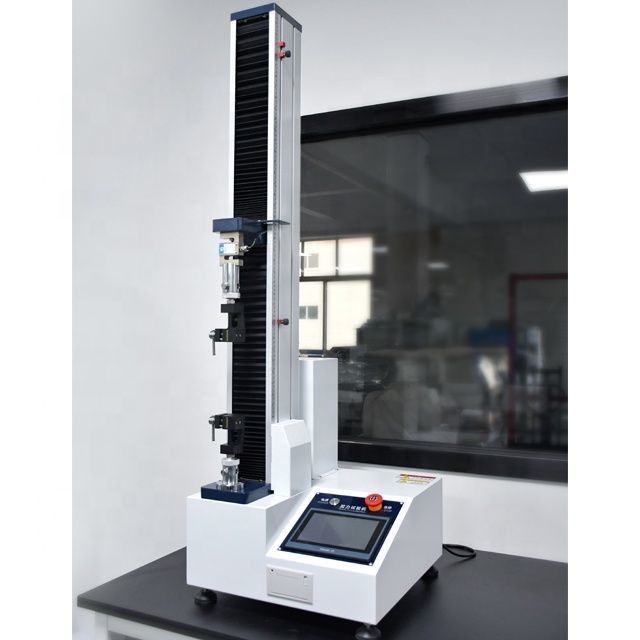

Servo LCD Display Screen Universal Tensile Strength Machine Material Testing Machine 2

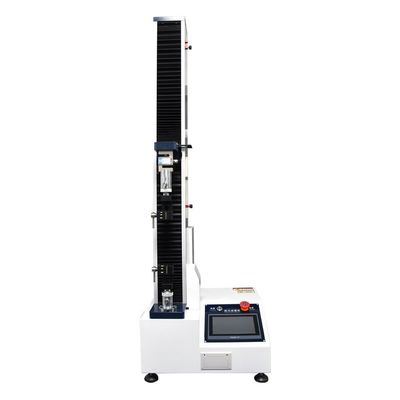

Servo LCD Display Screen Universal Tensile Strength Machine Material Testing Machine 4
