AC Servo Motor Pull Strength Tensile Compression Testing Machine Customized

Name: AC Servo Motor Pull Strength Tensile Compression Testing Machine Customized
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-1000S
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-1000S
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-1000S

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Test Width:

400mm(Optional)

Power Unit:

N,Kg,Lb,kN...

Power:

220V/50Hz

Protected Mode:

Computer Printout

Transport Package:

Wooden Package

Specification:

86*73*216cm

Trademark:

Origin:

China

Package Size:

86.00cm * 73.00cm * 216.00cm

Package Gross Weight:

220.000kg

Customization:

Available

Warranty:

12 Months

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Servo Motor tensile compression testing machine

customized tensile compression testing machine

AC Servo tensile pull test machine

Product Description

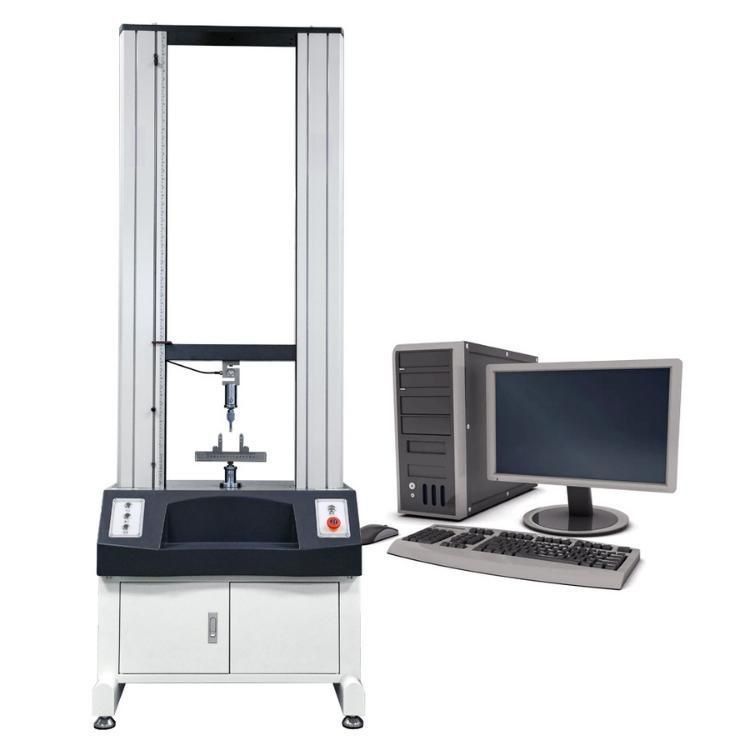

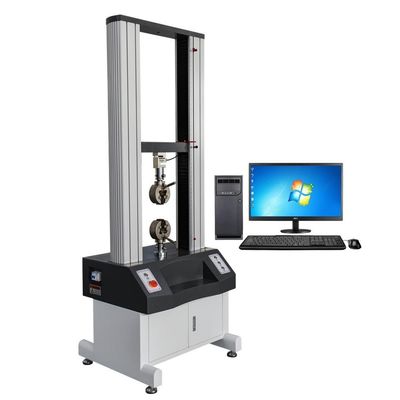

AC Servo Motor Universal Double-Column Strength Tensile Testing Machine

-The Double-Column Universal tensile test machines are available in various configurations, including hydraulic, electromechanical, and servo-hydraulic systems.

-They can perform a wide range of tests, including tension, compression, bending, and fatigue testing, making them essential tools for quality control, research, and development in many industries.

AC Servo Motor Pull Strength Tensile Compression Testing Machine Customized 2

Model	GC-WS-1000S
Type	Double column (gantry-type)
Load range	0~50KN(0-500KG optional )
Control Motor	AC Servo Motor
Servo drivers	AC drives
Test Speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc

·GB/T 1040-2006 Test mothod for tensile properties
·GB/T 9341-2008 Test method for bending properties of plastics
·ISO 527-1993 Plastics - determination of tensile properties
·GB/T 13022-91 Methods of tensile test for plastic films
·ISO 178-2004 Plastics bending test
·ASTM D 638-2008 Standard test method for tensile properties of plastics

AC Servo Motor Pull Strength Tensile Compression Testing Machine Customized 6

AC Servo Motor Pull Strength Tensile Compression Testing Machine Customized 9
