Universal Tensile Strength Mechanical Testing Machine Plastic Wire Tensile Tester

Name: Universal Tensile Strength Mechanical Testing Machine Plastic Wire Tensile Tester
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-1000S
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-1000S
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-1000S

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Test Width:

400mm(Optional)

Power Unit:

N,Kg,Lb,kN...

Power:

220V/50Hz

Protected Mode:

Computer Printout

Transport Package:

Wooden Package

Specification:

86*73*216cm

Trademark:

Origin:

China

Package Gross Weight:

220.000kg

Customization:

Acceptable

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Universal mechanical testing machine

Plastic mechanical testing machine

Mechanical wire tensile tester

Product Description

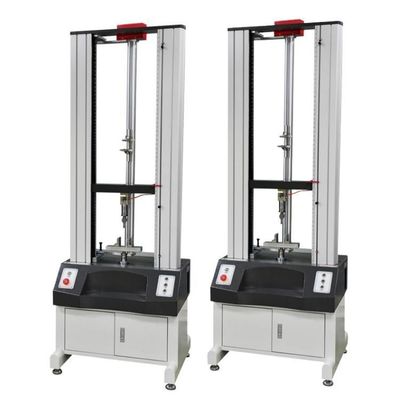

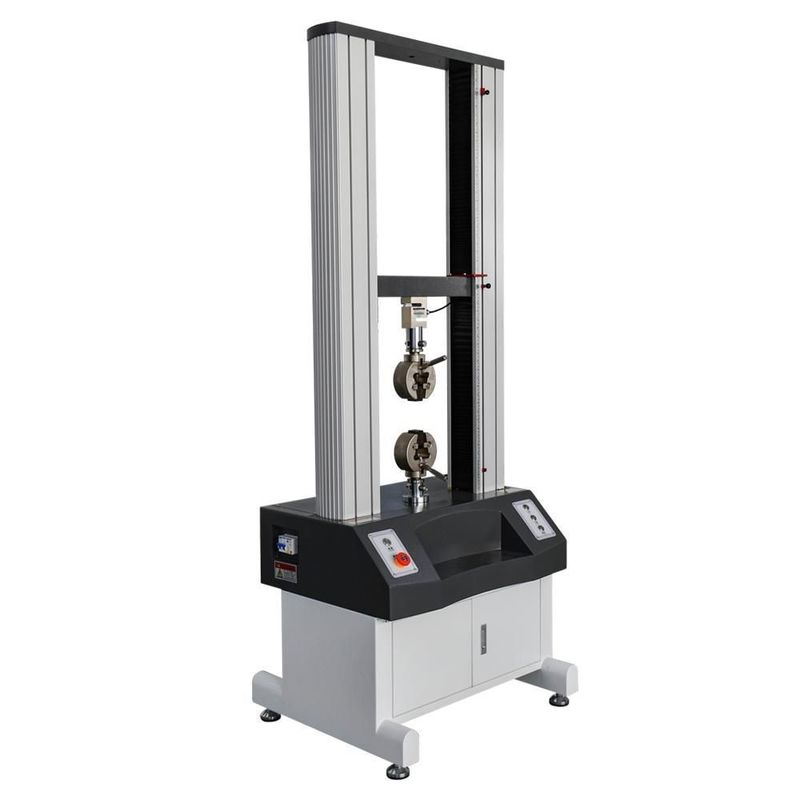

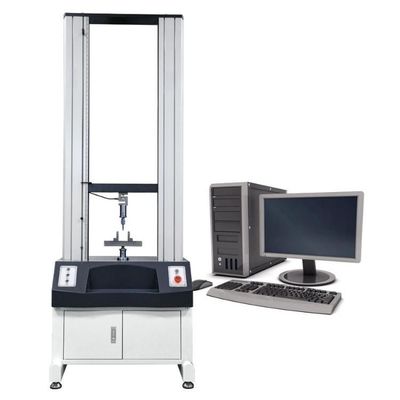

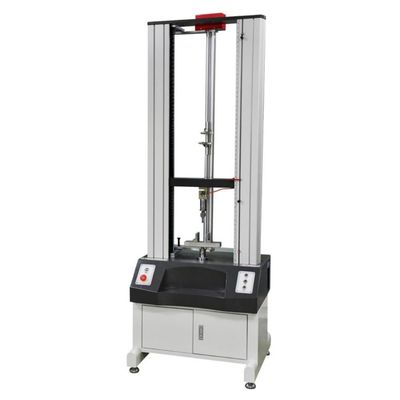

Double-Column Universal Tensile Strength Testing Machine for plastic

-The Double-Column Universal tensile test machines are available in various configurations, including hydraulic, electromechanical, and servo-hydraulic systems.

-They can perform a wide range of tests, including tension, compression, bending, and fatigue testing, making them essential tools for quality control, research, and development in many industries.

-WS type computer servo system double-column universal material testing machine is a new generation of dual-space computer-controlled electronic universal testing machine specially designed for colleges and universities and scientific research institutes.

-The design of the main engine and auxiliary equipment of the testing machine draws on international advanced technology, with beautiful appearance, convenient operation and stable and reliable performance.

-The computer system controls the rotation of the AC servo motor through the controller and the speed regulating system.

-After deceleration by the deceleration system, the moving beam is driven up and down by the precision screw pair to complete the tensile, compression, bending, shearing and other mechanics of the sample.

-Performance test, no pollution, low noise, high efficiency, very wide speed regulation range and beam moving distance, and equipped with a wide variety of test accessories, in the mechanical properties test of metal, non-metal, composite materials and products, with Very broad application prospects.

-This machine is widely used in material inspection and analysis of building materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, home appliances and other industries.

Model	GC-WS-1000S
Type	Double column (gantry-type)
Load range	0~10KN(0-1000KG optional )
Control Motor	AC Servo Motor
Servo drivers	AC drives
Test Speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc

GB/T 1040-2006	Tensile Properties Test Methods
GB/T 1041-2008	Test method for compression properties of plastics
GB/T 9341-2008	Test method for flexural properties of plastics
IS0 527-1993	Determination of tensile properties of plastics
GB/T 13022-91	Plastic film tensile test method
ISO 604-2002	Plastics - Determination of Compression
ISO 178-2004	Plastic bending determination
ASTM D 638-2008	Standard Test Method for Tensile Properties of Plastics
