Elongation Strength Tensile Testing Machine Meter For Aerospace Industry

Name: Elongation Strength Tensile Testing Machine Meter For Aerospace Industry
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-2000S
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-2000S
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-2000S

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Test Width:

400mm(Optional)

Power Unit:

N,Kg,Lb,kN...

Power:

220V/50Hz

Protected Mode:

Computer Printout

Transport Package:

Wooden Package

Specification:

86*73*216cm

Trademark:

Origin:

China

Package Gross Weight:

220.000kg

Customization:

Available

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

elongation Tensile Testing Machine

aerospace Tensile Testing Machine

elongation tensile strength meter

Product Description

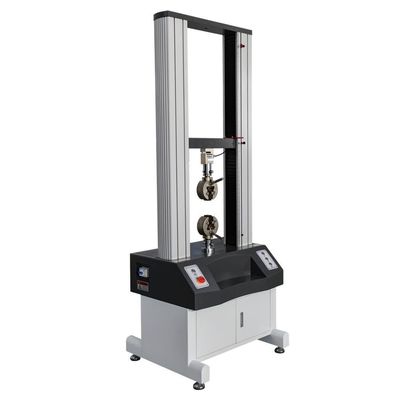

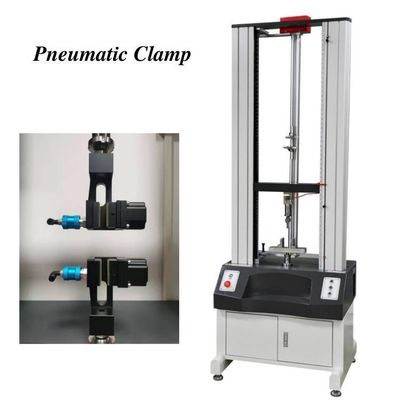

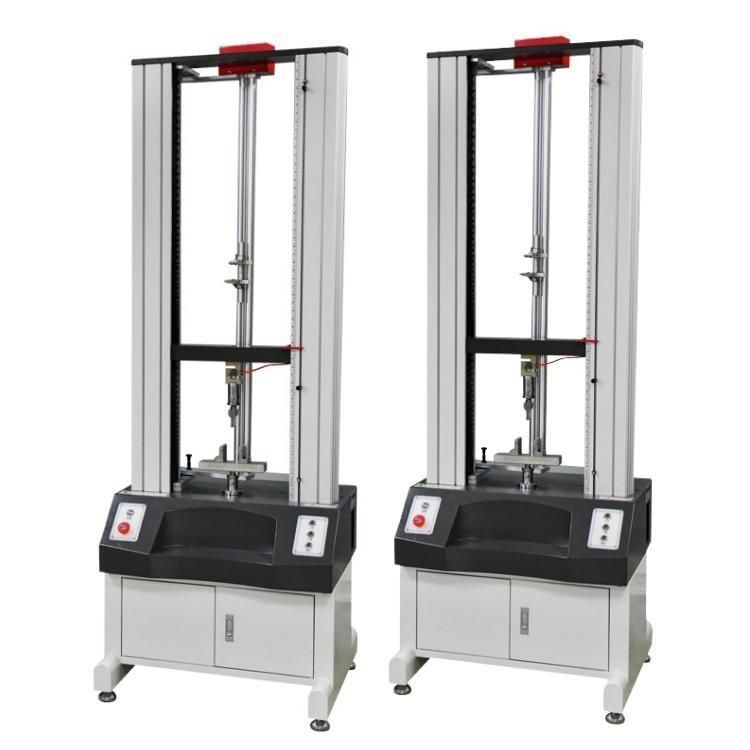

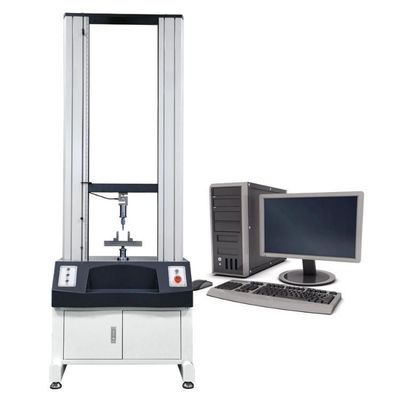

Double-Column Strength Tensile Testing Machine for tensile test

-The double-column universal tensile test machine applies a controlled force to a specimen, typically a metal, plastic, or composite material, and measures the resulting deformation or elongation.

-This allows engineers and researchers to evaluate the material's performance under various conditions and make informed decisions about its suitability for specific applications.
-It is commonly used in industries such as aerospace, automotive, construction, and manufacturing to determine the tensile strength, yield strength, elongation, and other properties of materials.

Model	GC-WS-2000S
Type	Double column (gantry-type)
Load range	0~20KN(0-2000KG optional )
Control Motor	AC Servo Motor
Servo drivers	AC drives
Test Speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc

·GB/T 1040-2006 Test mothod for tensile properties
·GB/T 9341-2008 Test method for bending properties of plastics
·ISO 527-1993 Plastics - determination of tensile properties
·GB/T 13022-91 Methods of tensile test for plastic films
·ISO 178-2004 Plastics bending test
·ASTM D 638-2008 Standard test method for tensile properties of plastics

1.Guangdong Guangdce Instrument Technology Company Limited, located in Dongguan City, is a technology-based private enterprise engaged in research and development, production, OEM and sales of scientific and technological equipment manufacturing.

2.The company has 15 years of production experience, has various software and hardware design and research and development capabilities, and also have experienced and high-quality technical team and professional sales team.

3.The company's main business includes plastic physical properties, mechanics, environmental reliability, aging, and flame retardant testing instruments, among which the annual output of plastic polymer physical properties testing instruments ranks among the top in the country. Products comply with GB, ASTM, ISO, JIS, EN, DIN, UL and other testing standards.

4.The company covers an area of about 5,000 square meters, with more than 30 staff members, including 10 research and development personnel, 8 professional technicians, and about 2,000 sets of equipment manufactured annually.
