Plastic Servo Hydraulic Strength Tensile Testing Machine Desktop Tester

Name: Plastic Servo Hydraulic Strength Tensile Testing Machine Desktop Tester
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-2000S
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-2000S
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-2000S

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Test Width:

400mm(Optional)

Power Unit:

N,Kg,Lb,kN...

Power:

220V/50Hz

Protected Mode:

Computer Printout

Transport Package:

Wooden Package

Specification:

86*73*216cm

Trademark:

Origin:

China

Package Gross Weight:

220.000kg

Customization:

Available

Warranty:

12 Months

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

servo hydraulic Tensile Testing Machine

Plastic Tensile Testing Machine

Plastic desktop tensile tester

Product Description

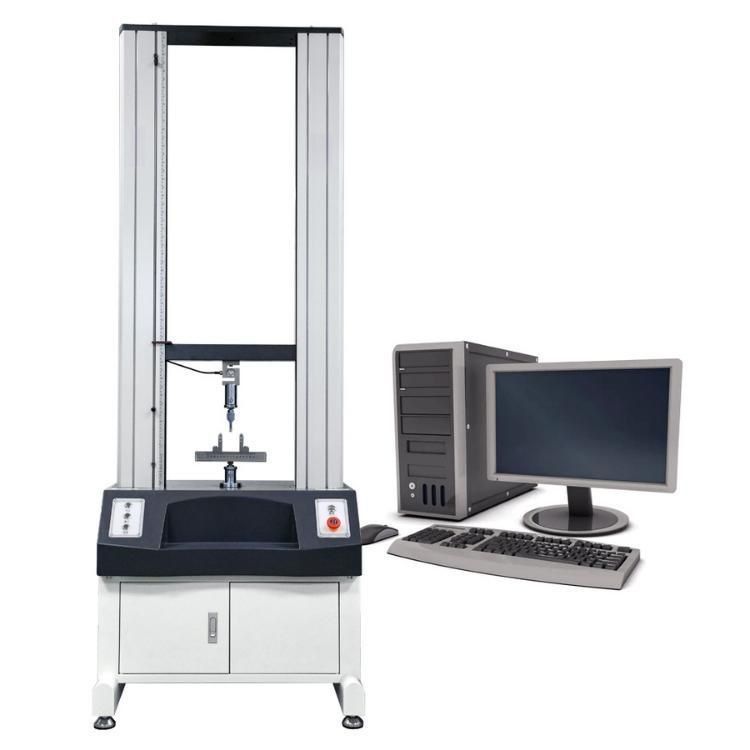

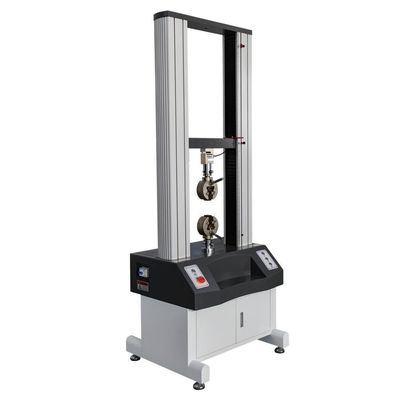

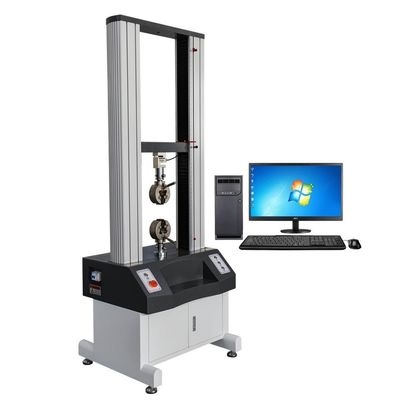

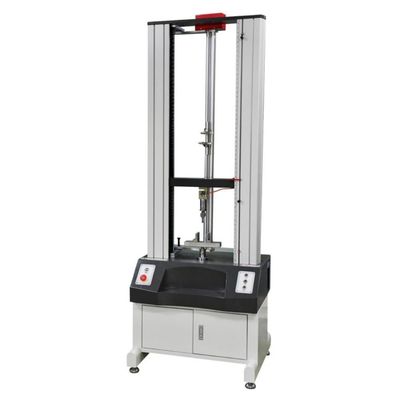

Plastic Universal Double-Column Strength Tensile Testing Machine

1.Introduction:

-The Double-Column Universal Tensile Strength Testing Machine are available in various configurations, including hydraulic, electromechanical, and servo-hydraulic systems.

-They can perform a wide range of tests, including tension, compression, bending, and fatigue testing, making them essential tools for quality control, research, and development in many industries.

2. Feature:

-The plastic tensile machine is suitable for testing the mechanical properties of rubber materials such as tension, compression, bending, shearing, tearing and peeling.

-The functions of cycle load cycle, deformation cycle and displacement cycle. Obtain elongation, tensile strength, flexural modulus, elastic modulus, yield strength, net energy, return energy, total energy and other indicators.

-It can be equipped with high and low temperature test chambers, high temperature furnaces and other expansion devices.

-PC is used for data processing and analysis, and the test results can be automatically saved. After the test, the test curve can be recalled, and the test process can be reproduced through the curve traversal, or the curve comparison and curve amplification can be performed.

-The test software under Windows and visit platforms has strong data and graphics processing functions, and can print out complete test reports and test curves in real time.

Model	GC-WS-1000S
Type	Double column (gantry-type)
Load range	0~20KN(0-1000KG optional )
Control Motor	AC Servo Motor
Servo drivers	AC drives
Test Speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc
