50KN Universal Material Tensile Testing Equipment High And Low Temperature

Name: 50KN Universal Material Tensile Testing Equipment High And Low Temperature
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-2HL
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-2HL
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-2HL

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Static Load

Display:

Digital

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Temperature Range:

-40~150degrees

Tensile Strenth:

5~50kn

Strength Accuracy:

≤0.5%

Strength Resolution:

1/300000

Transport Package:

Wooden Packaging

Trademark:

Origin:

Guangdong, China

Package Gross Weight:

400.000kg

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

50KN tensile testing equipment

Static Load tensile testing equipment

50KN universal material testing machine

Product Description

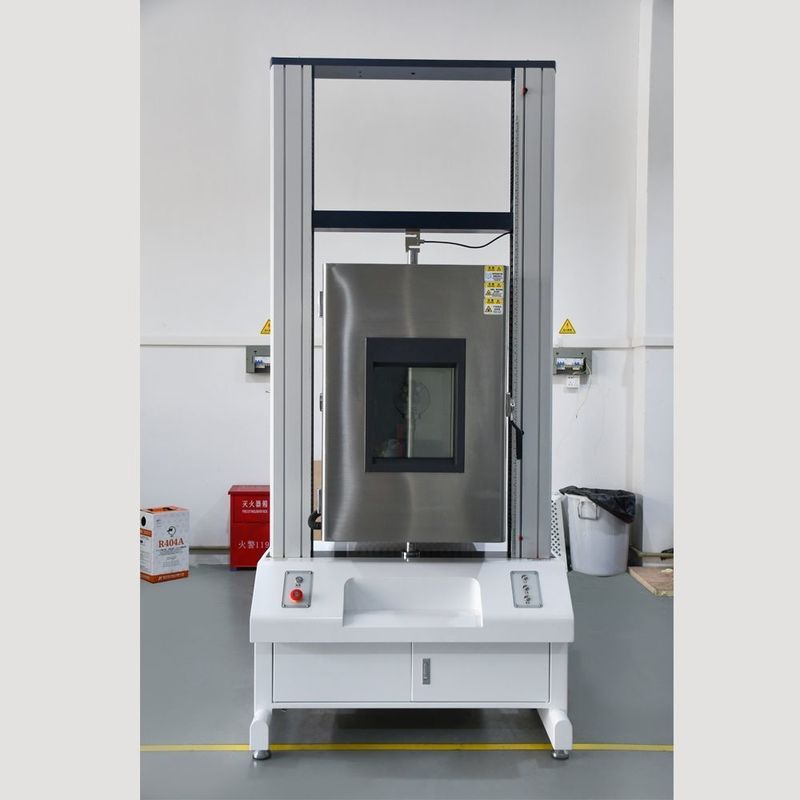

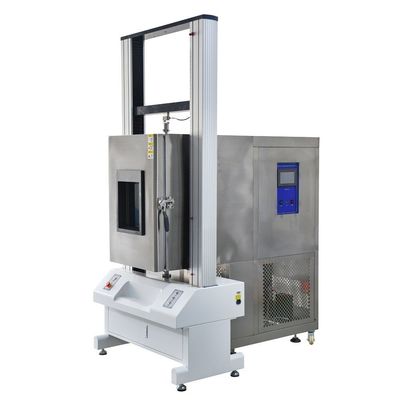

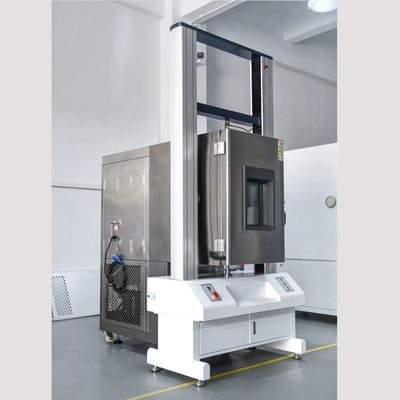

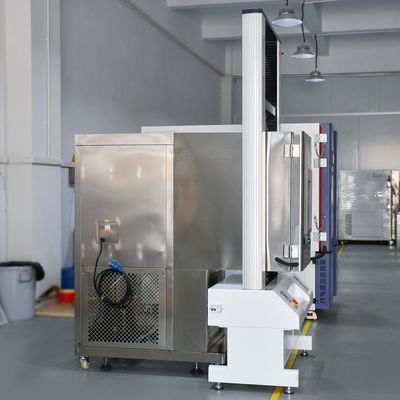

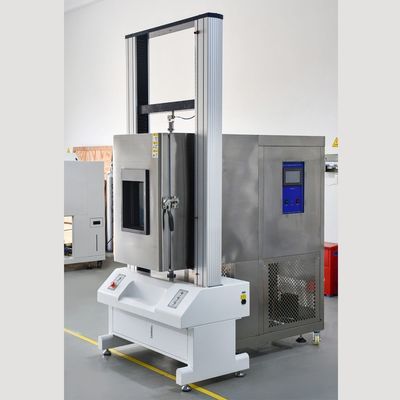

High and Low Temperature Tensile Test Machine

Model: GC-WS-2HL

1. Product introduction
A high and low temperature tensile testing machine is a specialized equipment used to test the mechanical properties of materials under extreme temperature conditions. We designed it to measure the tensile strength, elongation, and other properties of a material at both high and low temperatures.

During the test, it subjected the material to a constant tensile force while being exposed to the desired temperature. The machine measures the force applied and the resulting elongation of the material. This data is then used to calculate various mechanical properties, such as tensile strength, yield strength, and modulus of elasticity.

2. Component

The machine comprises a load frame, grips, and a temperature control system. The load frame is used to apply a controlled tensile force to the material being tested. The grips securely hold the material in place during the test.

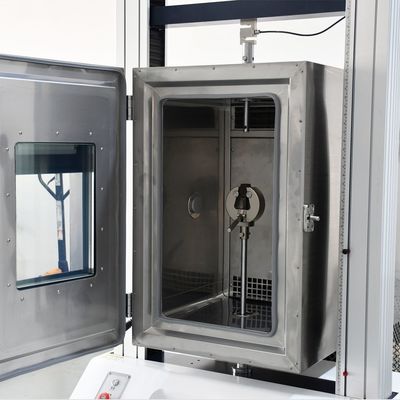

The temperature control system allows the machine to operate at both high and low temperatures. It typically includes heating and cooling elements, as well as sensors to monitor and control the temperature within the test chamber.

3. Application

They commonly used high and low temperature tensile testing machines in industries such as aerospace, automotive, and materials research, where materials may be subjected to extreme temperature conditions during their application. These machines help to determine the performance and reliability of materials in such conditions, ensuring that they meet the required specifications and standards.

Model	GC-WS-2HL
Type	Double column (gantry-type)
Load range	0~50KN (0-5000KG optional )
Control motor	AC Servo Motor
Servo drivers	AC drive
Temperature range	-40~150degrees
Test speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Professional Large Deformation Extensometer (optional)
Extensometer accuracy	±0.01mm(optional)
Test stroke	800mm(optional)
Test width	400mm(optional)
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Protected mode	Computer printout
Power	220V/50HZ

50KN Universal Material Tensile Testing Equipment High And Low Temperature 0

1. Q: Are you a factory or a trading company?
A: We are a professional OEM testing equipment manufacturer.
2. Q: Why choose us?
  A: We are a professional OEM manufacturer with 15 years of experience in R&D and production of testing equipment, and can provide production and processing customization.
3. Q: How can we guarantee the quality?
  A: Always a pre-production sample before mass production and always a final inspectionbefore shipment.
4. Q: What's the delivery time?
  A: Within 10 working days after deposit is received. If we have products in stock or urgentorders the delivery time will be shortened.
5. Q: What about the after-sale service?
A: Every machine from our factory has 12 months warranty. And we also provide life-longpaid repair or service. When customers encounter problems, solutions will be provided as soon as possible within 12 hours on working days.
