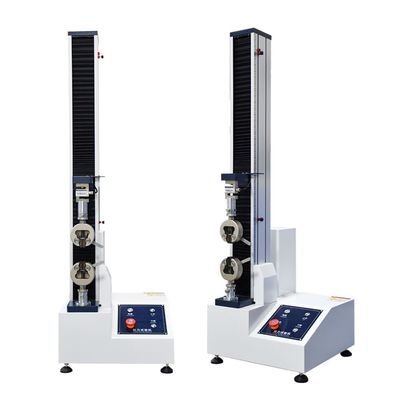

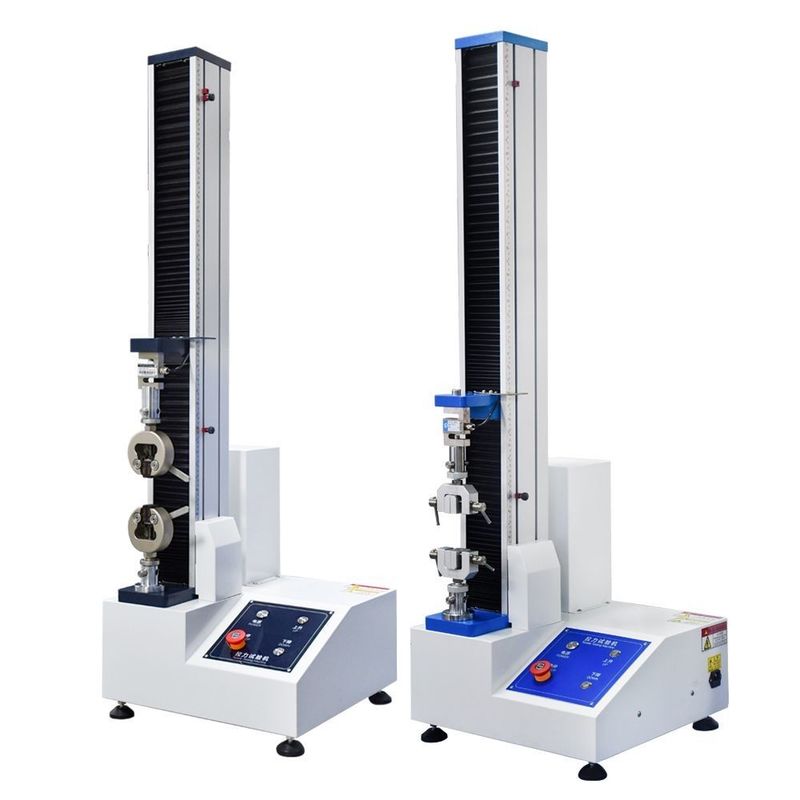

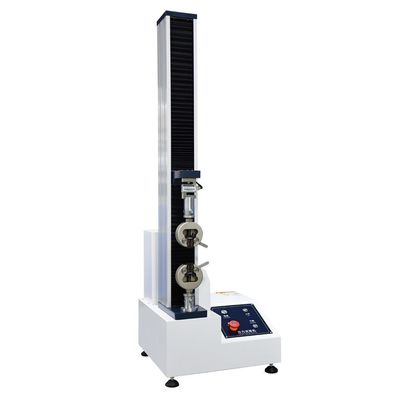

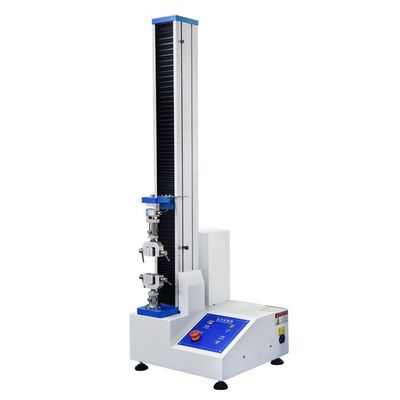

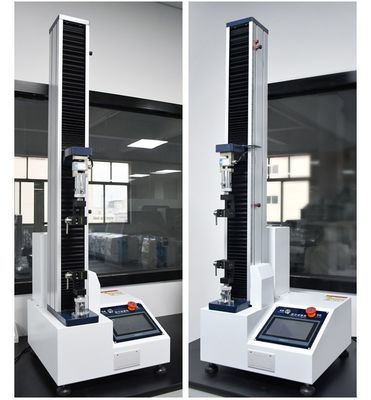

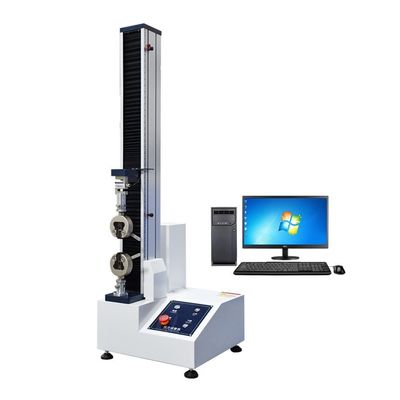

Microcomputer Control Desktop Universal Tensile Tester 220V 50Hz High Precision

Name: Microcomputer Control Desktop Universal Tensile Tester 220V 50Hz High Precision
Brand: Guangdong Guangce Instrument Technology Co., Ltd
Availability: InStock

Brand Name:	GC
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WD-500D

Motor:

Taiwan Delta

Control Mode:

Computer Control / Touch Screen

Transport Package:

Wooden Packages

Specification:

500KG

Trademark:

Origin:

Guangdong

Supply Ability:

300PCS/Month

Package Size:

65.00cm * 55.00cm * 150.00cm

Package Gross Weight:

90.000kg

Customization:

Available

Power:

220V 50Hz

Load:

0~5kn

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Support Payments In USD

Secure Payments:

Every Payment You Make On Made-in-China.com Is Protected By The Platform.

Refund Policy:

Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

microcomputer universal tensile tester

220V universal tensile tester

220V 50Hz universal tensile machine

Product Description

High Precision Desktop Adhesive Tape Peeling Strength Tensile Tester with 220V 50Hz Package Gross Weight 90.000kg

Model: GC-WD-500D

Product introduction
WD type single column universal material testing machine is specially designed for colleges and universities, scientific research institutes and a new generation of dual space microcomputer control electronic universal testing machine. The design of the main engine and auxiliary equipment of the testing machine is based on the international advanced technology, beautiful appearance, convenient operation, stable and reliable performance. Computer system through the controller, the speed control system to control ac motor rotation, after reduction system to slow down the move beam by precision ball screw pair drive up and down, to complete the sample of tensile, compression, bending, shear, and other mechanical properties test, no pollution, low noise, high efficiency, has a very wide speed range and beams moving distance. In addition, it is equipped with a wide variety of test accessories, and has a very broad application prospect in the mechanical properties test of metals, nonmetals, composite materials and products. This machine is widely used in the material inspection and analysis of building materials, aerospace, machinery manufacturing, wire and cable, rubber and plastic, textile, household appliances and other industries. It is an ideal testing equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection arbitration and other departments.

Product Features
Plastic tensile machine for rubber material tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of the test, but also can be isometric loading, isometric deformation, isometric displacement automatic control test, and has the function of low cycle load cycle, deformation cycle, displacement cycle. Get elongation, tensile strength, bending modulus, elastic modulus, yield strength, net energy, reentry energy, total energy and other indicators. Can equipped with high and low temperature test chamber, high-temperature furnace and other expansion devices.
It uses PC for data processing and analysis, and it can automatically save the test results. After the test, the test curve can be reset, and curve traversal, or curve comparison and amplification can reproduce the test process. Windows, VISIT platform test software, with strong data and graphics processing function, can immediately print out a complete test report and test curve.

Test Standard:

GB/T 1040-2006	Tensile Properties Test Methods
GB/T 1041-2008	Test method for compression properties of plastics
GB/T 9341-2008	Test method for flexural properties of plastics
IS0 527-1993	Determination of tensile properties of plastics
GB/T 13022-91	Plastic film tensile test method
ISO 604-2002	Plastics - Determination of Compression
ISO 178-2004	Plastic bending determination
ASTM D 638-2008	Standard Test Method for Tensile Properties of Plastics

Parameters

Model	GC-WD-200D
Type	Single column
Load range	100kg, 200kg,300kg, 500kg
Control motor	AC Servo Motor
Servo drivers	AC drive
Test speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Large Deformation Extensometer
Extensometer accuracy	±0.01mm
Test stroke	700mm
Control mode	Computer software control
Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Protected mode	Computer printout
Power	220V/50HZ
