20kn 50kn Universal Tensile Testing Machine Plastic Tester AC Servo Motor

Name: 20kn 50kn Universal Tensile Testing Machine Plastic Tester AC Servo Motor
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WS-1000S
Availability: InStock

Brand Name:	GC
Model Number:	GC-WS-1000S
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-WS-1000S

Power Accuracy:

≤0.5%

Transport Package:

Wooden Package

Specification:

Trademark:

Origin:

China

Supply Ability:

300PCS/Month

Package Size:

83.00cm * 70.00cm * 220.00cm

Package Gross Weight:

200.000kg

Customization:

Available

Load Range:

10kn

Power:

220V, 50Hz

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Support Payments In USD

Secure Payments:

Every Payment You Make On Made-in-China.com Is Protected By The Platform.

Refund Policy:

Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

20kn Tensile Testing Machine

50kn Tensile Testing Machine

20kn universal tensile tester

Product Description

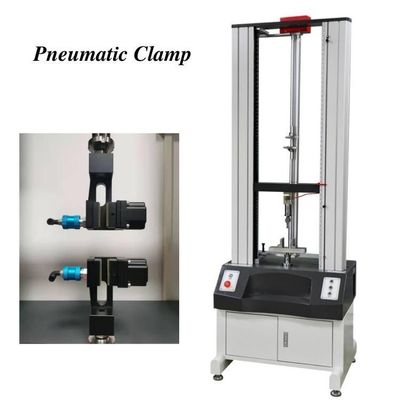

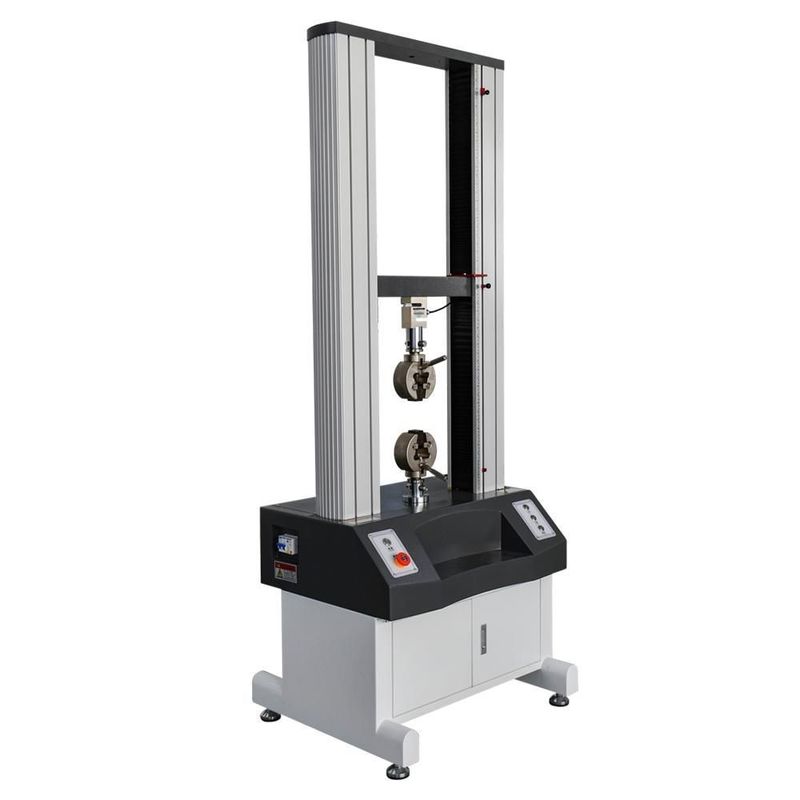

Double-Column Servo Universal Material Tensile Test Machine

Model: GC-WS-2000S

Product introduction

Servo universal tensile test machine is suitable for rubber and plastic materials for stretching, compression, bending, shearing, tearing, stripping, etc. It is widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber, plastics, textile, home appliances and other industries of material inspection and analysis.

Test standards

GB/T 1040-2006	Test mothod for tensile properties
GB/T 9341-2008	Test method for bending properties of plastics
ISO 527-1993	Plastics - determination of tensile properties
GB/T 13022-91	Methods of tensile test for plastic films
ISO 178-2004	Plastics bending test
ASTM D 638-2008	Standard test method for tensile properties of plastics

Specifications

Model	GC-WS-1000S
Type	Double column
Load range	5KN,10KN,20KN
Control motor	AC Servo Motor
Servo drivers	AC drive
Test speed	0.01~500mm/min
Power accuracy	≤0.5%
Resolution	1/250000
Power unit	N,kg,Lb,KN...
Extensometer	Large Deformation Extensometer
Extensometer accuracy	±0.01mm
Test stroke	800mm
Test width	400mm
Control mode	Computer software control

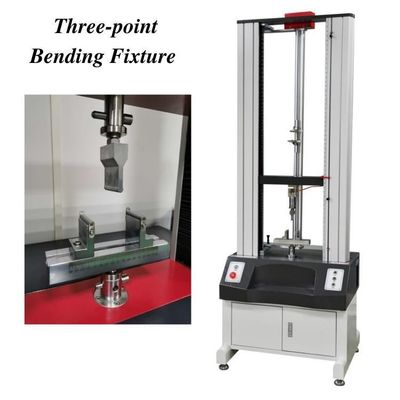

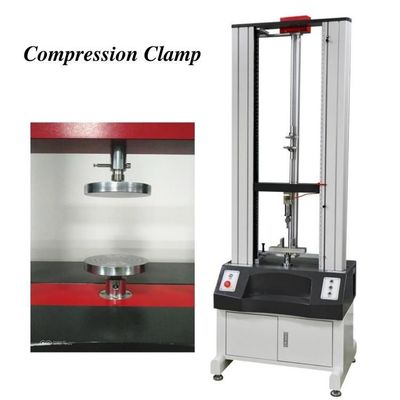

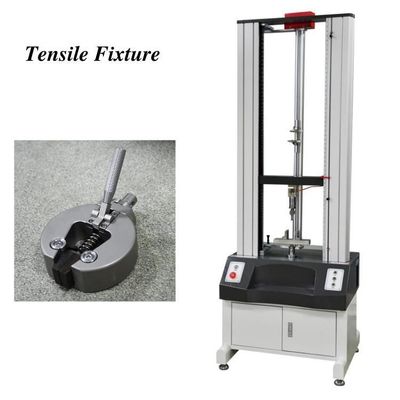

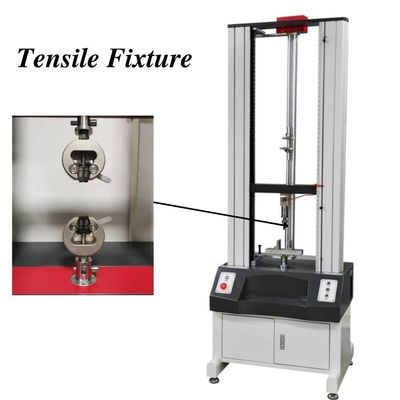

Fixture configuration	Including a set of conventional limit test fixture
Protective device	Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Protected mode	Computer printout
Power	220V/50HZ
