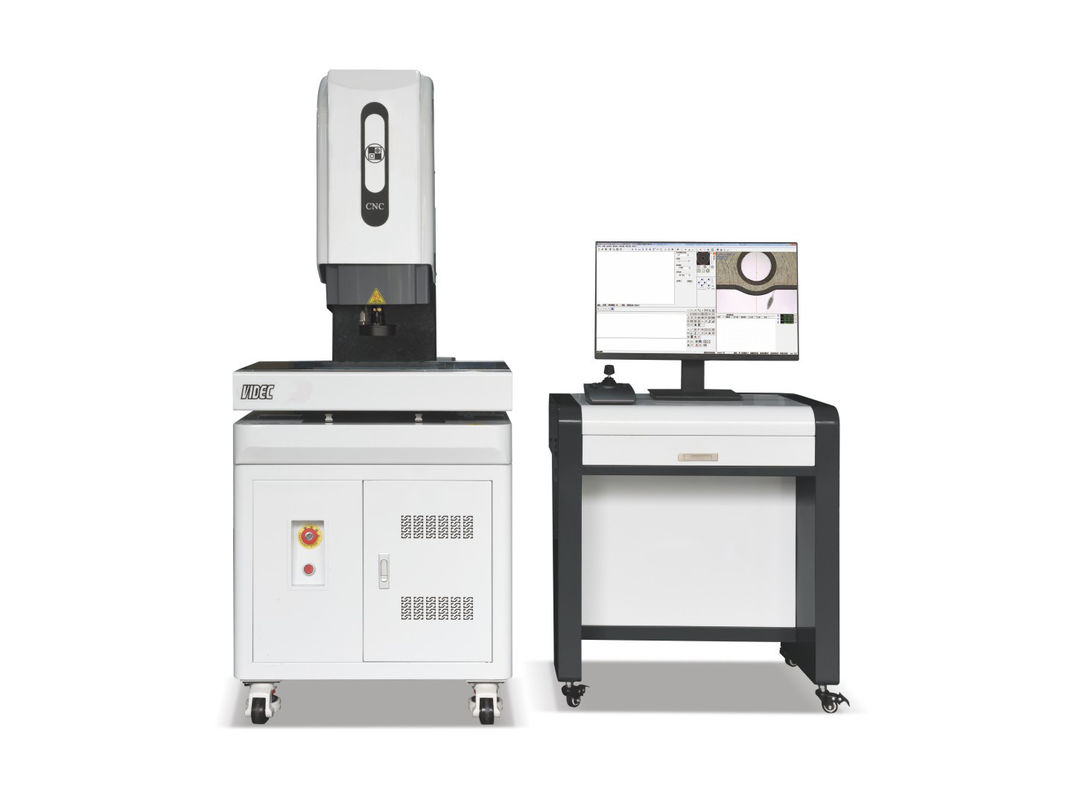

Linear Automatic Image Optical Measuring Instruments 220V 60Hz

Name: Linear Automatic Image Optical Measuring Instruments 220V 60Hz
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-432C
Availability: InStock

Brand Name:	GC
Model Number:	GC-432C
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Machine Size:

1350*660*1170mm

Rotation Range:

0~360°

Repeated Accuracy:

3μm

Guide Rail:

China Taiwan Uebank P Class

Wavelength Interval:

10nm

Wavelength Range:

400-700nm

Interface:

RS232

Weight:

1.5kg

Digital Resolution:

1um

Software:

Quick Measuring 2.0

Instrument Power:

110V/220V(AC),50/60HZ, Total Power 400W

Measuring Units:

Mm/inch

Customized Support:

OEM, ODM, OBM

Display Type:

Digital

Heating Rage:

>500℃/min

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

linear Optical Measuring Instruments

220V Optical Measuring Instruments

220V Automatic Image Measuring Instrument

Product Description

Automatic Image Measuring Instrument

Features

Ø All three axes are driven by Taiwan HIWIN high-precision linear guides and grinding-grade ball screws, with low noise and vibration, and minimal dynamic geometric error deformation.

Ø Adopts high-quality granite marble base and column, with good temperature stability and resistance to deformation of the real effect .

Ø Adopts granite marble + aviation aluminum worktable, small inertia, ensuring positioning accuracy and steady state performance for high-speed operation.

Ø Finite element structural analysis and optimized structural design for this series ensure the overall high precision and stability of the system.

Ø Adopts multi-functional integrated controller and imported high-performance servo motor drive to realize full closed-loop control.

Ø The has a measurement navigation function that makes it easy to quickly find the measurement location.

Technical parameters

Model number	432C
XYZ Measuring stroke	400300200
Working distance	90mm
Overall dimensions LxLyLz	81511601710
Maximum Load	30Kg
Instrument weight	360Kg
Power supply	AC220V±10%, 10A, 50/60Hz
Measurement Accuracy	X/Y轴:(2.5＋L/200)μm,Z轴:(5+L/200)μm
Repeatability	2μm
Computer	motherboard H 81 M CPU Intel Core i5 4590 8 Grandom access memory ,500 Gsolid state drive,Kanawada Chassis Power Supply,HKC24＂ IPS
Z-axis optical altimetry	Z-axis non-contact optical altimetry is standard.
Drive Screws	X/Y/Z three-axis Taiwan TBI grinding quiet grade ball screws
Transmission Guideway	X/Y/Z three-axis Taiwan HIWIN silent linear guideway
Servo motor	X/Y/Z three-axis Taiwan Delta high-performance AC servo motor
Software	CNC-IN3D Multi-function Measurement Software
Controller	CNC-420 Full Closed Loop Motion Controller
Raster Scale	Metal Chip Scale,resolution 0.5μm
CCD Camera	130W pixel 1/2 HD digital color CCD camera
Navigation Lens	V-200 Large Field of View Wide Angle Navigation Lens
Optical Lens	Auto Zoom Lens/Lens Magnification 0.7-4.5X,Image Magnification 20-200X
Lighting Systems	256-level programmable five rings and eight zones ring surface light source + contour LED cold light source

Introduction of Guangdong Guangce Instrument Technology Co.,Ltd
