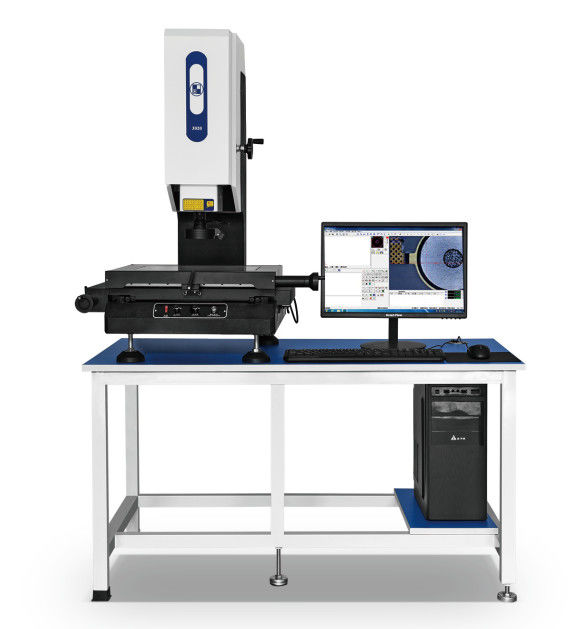

High Precision Digital Manual Image Measuring Instrument 30X~230X

Name: High Precision Digital Manual Image Measuring Instrument 30X~230X
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-3020C
Availability: InStock

Brand Name:	GC
Model Number:	GC-3020C
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Glass Table Size:

210 *160mm

Measurement Range:

0-1000mm

Display:

Digital

Repeat Accuracy:

0.002mm

Keyword:

Measurement Equipment

Battery Charging Time:

8 Hrs

Cooling Method:

Forced Air-cooled (3 Axial Fans)

Measuring Range:

X=200 , Z=100 ; Y=75( Focusing )

Port:

Shenzhen

Measuring Software:

QM4.1

Color:

Customer Required

Magnification:

10x-100x

Wavelength Interval:

10nm

Digital Magnification:

30~230X

Motor:

High-speed 3-axis CNC Driven

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Digital Manual Image Measuring Instrument

30X Manual Image Measuring Instrument

230X image measuring machine

Product Description

Manual Image Measuring Instrument

Features

All three axes adopt Taiwanese brand high-precision V-shaped guide rails and precision grade toothless screw transmission.
Adopting high-quality granite marble base and columns, it has good temperature stability and resistance to effective deformation.
Adopting an aluminum alloy integral die-casting worktable ensures accuracy while making X/Y axis movement lighter.
Finite element structural analysis and optimized structural design ensure the overall high precision and stability of the small stroke imaging system.
Adopting an integrated controller, different from traditional boards, it has a longer service life and more guaranteed after-sales service.
Equipped with a laser positioning pen as standard, it is convenient to quickly find the measurement position, making it easier for beginners to operate.

Technical parameters

Model	3020C
XYZ Measurement stroke	300200150
Working distance	90mm
Sizes LxLyLz	700740920
maximum load	≤30Kg
Weights	150Kg
Power	AC220V±10%, 5A, 50HZ/60HZ
measurement accuracy	X/Y:(3＋L/200)μm
repeatability	≤3μm
drive	X/YAxis West high-precision toothless screw
rail	Tiwan LEPINHigh precision linear guide rail
controller	HD- 600 -Function Controller
App	SD-2D/2.5D Multi functional measurement software
Grating ruler	Yihao 0.5 μ m enclosed glass grating ruler
CCD	SONY-CCD/700TVL high-definition color 1/3 "camera+image card with image magnification of 20 X -150X
LENS	Les HD continuous zoom lens/magnification 0.7-4.5X Optional: 0.5X objective lens Optional: 2X objective lens
Power	LED circular surface light source+parallel contour LED cold light source
Laser positioning	Red dot laser positioning indicator
Computer

Introduction of Guangdong Guangce Instrument Technology Co.,Ltd


High Precision Digital Manual Image Measuring Instrument 30X~230X 3

High Precision Digital Manual Image Measuring Instrument 30X~230X 4

High Precision Digital Manual Image Measuring Instrument 30X~230X 5
