220V Ring Stiffness Plastic Hdpe Pipe Pressure Testing Machine Meter

Name: 220V Ring Stiffness Plastic Hdpe Pipe Pressure Testing Machine Meter
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-RS-1
Availability: InStock

Brand Name:	GC
Model Number:	GC-RS-1
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Certifications:

CE, ISO

Testing Methods:

Hydrostatic Pressure Test, Burst Pressure Test, Tensile Test

Temperature Range:

0-60°C

Power Supply:

220V, 50Hz

Display:

Digital

Dimensions:

1000mm X 500mm X 800mm

Maximum Pressure:

10 Bar

Weight:

50kg

Warranty:

1 Year

Material:

Plastic

Accuracy:

±1%

Testing Standards:

ASTM D1598, ISO 4427

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

220V hdpe pipe pressure testing machine

Ring Stiffness hdpe pipe pressure testing machine

220V ring stiffness testing machine

Product Description

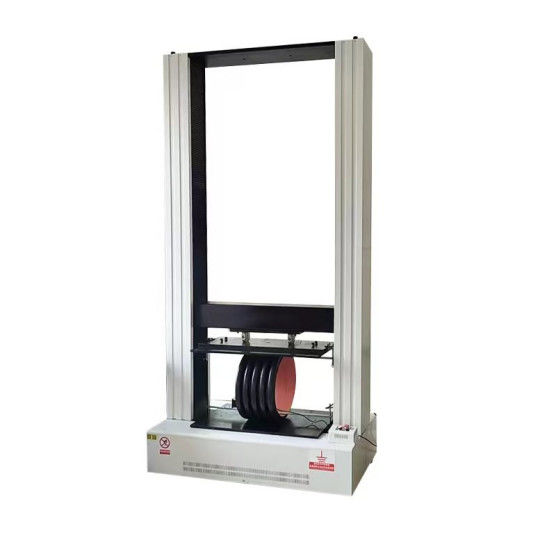

220V Ring Stiffness Plastic Hdpe Pipe Pressure Testing Machine Meter

1. Principle

Microcomputer control universal testing machine is according to GB/T1040, GB/T9647-2015, GB/T 19472.1.2-2004, GB/T1041-2008, GB/T8804, GB/T19806-2005,GB/T328-2007, GB/T9341-2008, GB/T13022- 91, ISO9969-2007, IS0527-1993, GB/T14823 and other standard requirements for the design and manufacture of the machine, the machine adopts closed-loop control technology, the power drive using servo motors, force collection using imported force sensors, to achieve the stability and reliability of the operation of the equipment.

2. Equipment Usage

Used for the determination of thermoplastic pipe, composite pipe, etc., tensile, sewage pipe seam tensile performance testing, corrugated pipe steel belt pipe Clara pipe internal ribbed pipe hollow-wall winding pipe PVC pipe, etc., ring stiffness, ring flexibility, flat performance determination, electrical casing compression resistance determination, but also according to the requirements of customized test.

3. Technical indexes

● Test force: 50KN
● Number of sensors: 50KN double force transducer
● Equipment span 1200mm
● Precision inner diameter measuring instrument
● Multi-layer composite platen
● Measuring range: 0.4%-100% of the maximum test force
● Tester accuracy level: 0.5%-1%
● Test force accuracy: better than ±1% of the indicated value
● Displacement measurement: resolution of 0.001mm
● Deformation accuracy: better than ±1%
● Speed regulation range: 0.1-200mm/min
● Test space: effective stroke 2000mm. Suitable for 1500 and below inner diameter pipes.
● Weight: 1200Kg
● Working environment: room temperature ～45℃, humidity 20%～80%
● Test items: ring stiffness (including inner diameter measuring device), ring flexibility, flat
● Equipment external dimensions 1650*950*2500mm (length, width and height)

220V Ring Stiffness Plastic Hdpe Pipe Pressure Testing Machine Meter 0

220V Ring Stiffness Plastic Hdpe Pipe Pressure Testing Machine Meter 6

220V Ring Stiffness Plastic Hdpe Pipe Pressure Testing Machine Meter 8
