ISO 4427 Lab Ring Stiffness Plastic Pipe Testing Equipment 0-10MPa

Name: ISO 4427 Lab Ring Stiffness Plastic Pipe Testing Equipment 0-10MPa
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-RS-1
Availability: InStock

Brand Name:	GC
Model Number:	GC-RS-1
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Power Supply:

220V/50Hz

Testing Pressure Range:

0-10MPa

Communication Interface:

USB

Warranty:

1 Year

Software:

Included

Display:

LCD

Testing Standards:

ISO 4427, ASTM D3035, EN 12201

Maximum Pipe Diameter:

1200mm

Testing Accuracy:

±0.5%

Temperature Range:

5-40℃

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

ISO 4427 Plastic Pipe Testing Equipment

10MPa Plastic Pipe Testing Equipment

ISO 4427 stiffness testing machine

Product Description

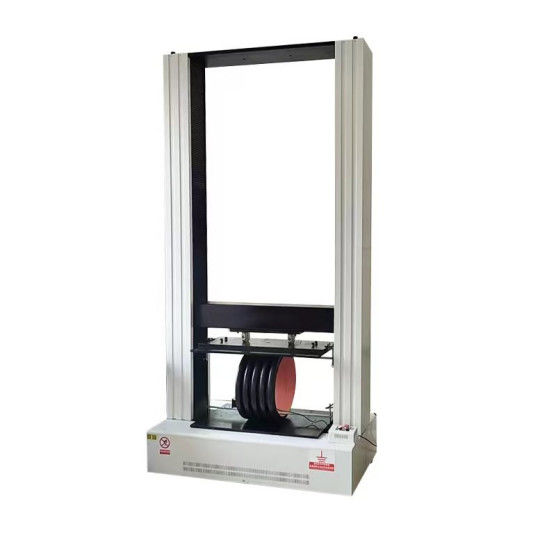

Plastic Ring Stiffness Testing Machine For Lab use

1. Principle

Microcomputer control universal testing machine is according to GB/T1040, GB/T9647-2015, GB/T 19472.1.2-2004, GB/T1041-2008, GB/T8804, GB/T19806-2005,GB/T328-2007, GB/T9341-2008, GB/T13022- 91, ISO9969-2007, IS0527-1993, GB/T14823 and other standard requirements for the design and manufacture of the machine, the machine adopts closed-loop control technology, the power drive using servo motors, force collection using imported force sensors, to achieve the stability and reliability of the operation of the equipment.

2. Equipment Usage

Used for the determination of thermoplastic pipe, composite pipe, etc., tensile, sewage pipe seam tensile performance testing, corrugated pipe steel belt pipe Clara pipe internal ribbed pipe hollow-wall winding pipe PVC pipe, etc., ring stiffness, ring flexibility, flat performance determination, electrical casing compression resistance determination, but also according to the requirements of customized test.

3. Technical indexes

● Test force: 50KN

● Number of sensors: 50KN double force transducer

● Equipment span 1200mm

● Precision inner diameter measuring instrument

● Multi-layer composite platen

● Measuring range: 0.4%-100% of the maximum test force

● Tester accuracy level: 0.5%-1%

● Test force accuracy: better than ±1% of the indicated value

● Displacement measurement: resolution of 0.001mm

● Deformation accuracy: better than ±1%

● Speed regulation range: 0.1-200mm/min

● Test space: effective stroke 2000mm. Suitable for 1500 and below inner diameter pipes.

● Weight: 1200Kg

● Working environment: room temperature ～45℃, humidity 20%～80%

● Test items: ring stiffness (including inner diameter measuring device), ring flexibility, flat

● Equipment external dimensions 1650*950*2500mm (length, width and height)

ISO 4427 Lab Ring Stiffness Plastic Pipe Testing Equipment 0-10MPa 0

ISO 4427 Lab Ring Stiffness Plastic Pipe Testing Equipment 0-10MPa 6

ISO 4427 Lab Ring Stiffness Plastic Pipe Testing Equipment 0-10MPa 8
