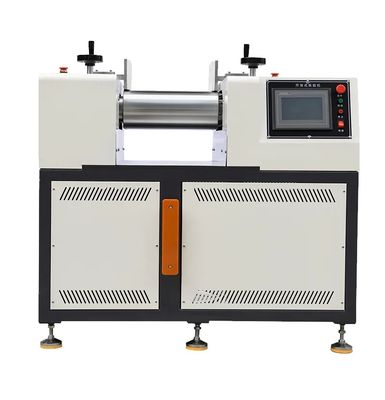

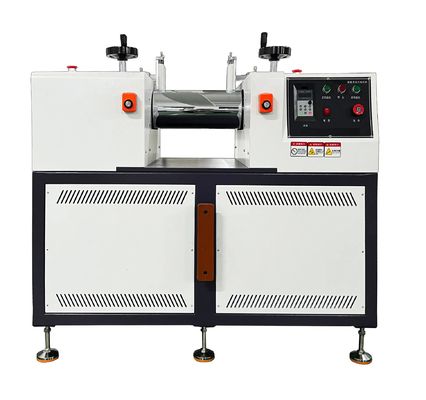

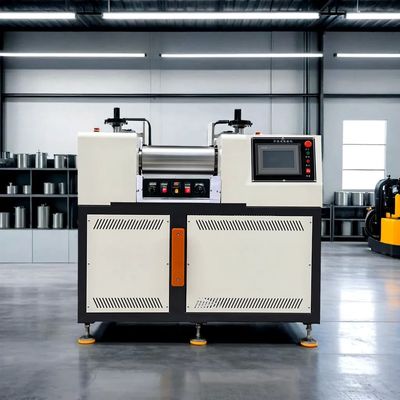

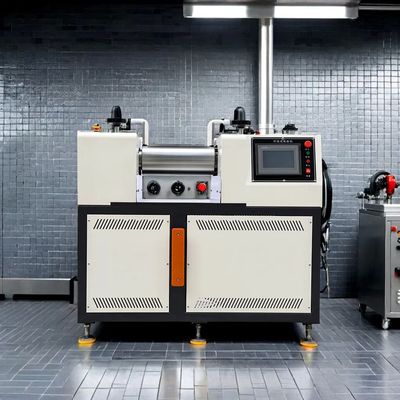

Two Roll Mill with SUS304 Stainless Steel Hopper Adjustable Roller Spacing and High Speed Mixer for Rubber Mixing

Name: Two Roll Mill with SUS304 Stainless Steel Hopper Adjustable Roller Spacing and High Speed Mixer for Rubber Mixing
Brand: Guangdong Guangce Instrument Technology Co., Ltd
Price: 3000 USD
Availability: InStock

MOQ:	1
Price:	3000

Detail Information

Product Description

Detail Information

Certification:

CE, ISO

Model NO.:

GC-6015D-6

Mixer Type:

Double Ribbon Mixer

Stirring Type:

Spiral

Layout Type:

Horizontal

Mixing Drum Shape:

Disc

Roller Hardness:

50 ~ 60HRC

Roller Handling:

Mirror Polished Chrome

Product Specification:

750*380*600mm

Roller Diameter:

150mm/6min

Roll Width:

500mm

Mixing Capacity:

0.5 ~5.5kg

Roller Temperature:

Normal Temperature/normal Temperature -250 ºC

Temperature Uniformity:

2.5 °C

Roller Speed Ratio:

1:1.22/1:1.35/1:1.4

Roller Spacing:

0.1 ~ 10mm Adjustable

Rotating Speed:

10-40r/min

Power:

4.3KW

Voltage:

3∮, AC380V

Highlight:

SUS304 Stainless Steel Hopper Two Roll Mill

Adjustable Roller Spacing Open Mill Rubber Mix Machine

High Speed Mixer Rubber Mixing Machine

Product Description

Superior Quality Stable Two Roll Mill for Plastic Processing

This rubber mixing machine features exposed rollers designed for plasticized rubber, mixed rubber, or heat-cured and extruded materials. The main components include two hollow rollers or drilling rollers rotating inward in opposite directions. The front roller (operator side) can be adjusted horizontally, while the rear roller remains fixed. Both rollers operate at different speeds to create strong shearing action for effective mastication or mixing. This versatile equipment is also suitable for plastics processing applications.

Key Features

Intuitive operation: Operators can directly observe material mixing and adjust parameters in real-time
Process flexibility: Handles various polymer materials including rubber, plastic, masterbatch, and composites with precise roller adjustments
Easy maintenance: Open structure allows cleaning without disassembly, featuring wear-resistant chrome-plated rollers for extended service life

Technical Specifications

Item model	GC-6015D-6
Roller diameter (metric/imperial)	150mm/6min
Roll width	500mm
Mixing capacity [soft rubber]	0.5 ~5.5kg
Material receiving device	SUS304 stainless steel hopper
Roller temperature	Normal temperature/normal temperature -250 ºC
Temperature uniformity	2.5 °C
Thermostat	PLC Touch Screen
Roller speed ratio [constant speed]	1:1.22/1:1.35 1:1.4
Roller hardness	50 ~ 60HRC
Roller Handling	Mirror polished chrome
Roller spacing	0.1 ~ 10mm adjustable
Rotating speed	10-40r/min
Spacing display method	Scale
Safety devices	Collision emergency stop
Number of safety devices	6
Special function	Emergency stop
Power	4.3KW
Voltage	3∮, AC380V

About Guangdong Guangce Instrument Technology Co., Ltd.

Based in Dongguan, we are a tech-driven private enterprise specializing in R&D, production, OEM, and sales of scientific testing equipment, with 17 years of industry expertise.

Our strengths include:

Strong software/hardware R&D capabilities with experienced technical team
Leading national output in plastic polymer physical property testing instruments
Compliance with global standards (GB, ASTM, ISO, JIS, EN, DIN, UL)
5,000 square meter facility with 30+ staff (10 R&D, 8 technicians)
Certifications: IS09001-2015(2017) and National High-Tech Enterprise (2022)
20+ national utility model patents and software copyrights

With branches in Suzhou, Ningbo, and Xiamen, our products are exported to 40+ countries including the U.S., Japan, and Germany.

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a professional manufacturer and provide OEM services to customers. Welcome to visit our company and factory.

Q: Why choose us?

A: We are a professional OEM manufacturer with 15 years of experience in R&D and production of polymer plastic testing instruments, and can provide production and processing customization.

Q: How can we guarantee the quality?

A: Always a pre-production sample before mass production and always a final inspection before shipment.

Q: What is your delivery time?

A: The test machines are mostly in stock, so we can deliver within 3-5 working days after receiving payment. We can also accept urgent orders for prompt shipment.

Q: What is the shipping method?

A: It could be shipped by sea, by air or by express (EMS, UPS, DHL, TNT, FEDEX etc). Please confirm with us before placing orders.

Q: What about the after-sale service?

A: Every machine from our factory has 12 months warranty. And we also provide life-long paid repair or service.
