30 Ton Pressure Capacity Plate Vulcanizer with Bilingual Software Support and Four Safety Devices

MOQ:	1
Price:	2499

Detail Information

Product Description

Detail Information

Power Voltage:

3∮,AC380V

Main Unit Volume:

1200*750*1650 Mm

Weight:

≈680kg

Pressure Capacity:

30 Ton

Pressure Adjustment Accuracy:

10%

Platen Size:

250*250/300*300/350*350/400*400/450*450/500*500/600*600mm

Platen Hardness:

50~60HRC

Platen Flatness:

≤0.03mm

Platen Parallelism:

≤0.16mm

Temperature Range:

Normal Temperature -250ºC

Temperature Uniformity:

2.5ºC

Temperature Display Accuracy:

±1.0ºC

Timer Range:

0.1S~99min~9.9hr

Cylinder Stroke:

Max 150mm

Cylinder Speed:

11mm/s

Highlight:

30 Ton Pressure Capacity Plate Vulcanizer

Bilingual Software Support Rubber Vulcanizing Machine

Four Safety Devices Rubber Testing Equipment

Product Description

Advanced Factory Plate Vulcanizer with Bilingual Software Support

Rubber Plate Vulcanizer

Model: GC-GREE-30

This series of plate vulcanizing machine is designed for press molding various rubber model products and non-model products. It can also process thermosetting plastics and foaming rubber/plastic products. Featuring an independent power mechanism and electrical system with push button centralized control, it offers adjustable working pressure and heating temperature. Available in manual and semi-automatic versions.

Heating Plate Features

Constructed with imported high-temperature resistant steel with deep carbonization and hard chrome plating surface treatment
Fast heat transfer and cooling capabilities
Corrosion resistant, high hardness, and deformation-resistant
Built-in heater and thermostat for fast warming and precise temperature control

Product Parameters

Parameter	Specification
Pressure capacity	30 Ton
Pressure gauge	Dual node pressure adjustable, pressure adjustment accuracy of 10%
Platen size (mm metric)	250250/300300/350350/400400/450450/500500/600*600mm (optional)
Hot platen material	High temperature resistant imported steel plate, surface carbide quenching, special treatment for fast heat conduction, pressure parallel non-deformation, wear-resistant
Platen hardness	50~60HRC
Platen Flatness	≤0.03mm
Platen flatness and parallelism	≤0.16mm
Temperature range	Normal temperature -250ºC (customizable up to 500ºC)
Temperature uniformity	2.5ºC (varies with platen size)
Temperature controller	Precision module with PLC touch screen control
Temperature control method	Precision control motherboard with high-precision sensors (±1.0ºC accuracy)
Timer	0.1S~99min~9.9hr range with touch panel display
Heater	Built-in cylindrical heating mold (power varies by platen area)
Rising time	Approximately 15mins from normal temperature to 160ºC
Two hot plates	Independent temperature control for each plate
Heating method	Electrical heating
Cooling method	Water cooling
Hydraulic system	CREE.6 hydraulic flow closed-loop control system with automatic pressure compensation
Cylinder Stroke	Max 150mm (customizable)
Cylinder speed	11mm/s
Pressure gauge	0~200kg/sq.cm
Mold opening method	Fully automatic rise and fall (manual-automatic dual function)
Safety device	Safety guards and doors (four total)
Main unit volume	1200×750×1650 mm (W×D×H)
Power Voltage	3∮, AC380V
Weight	≈680kg

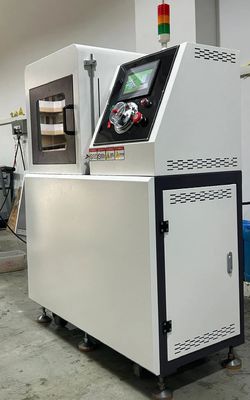

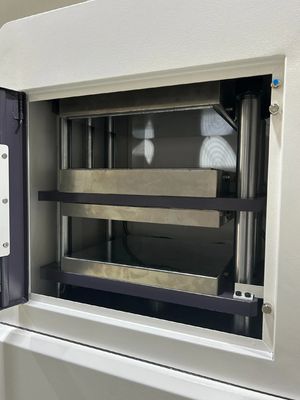

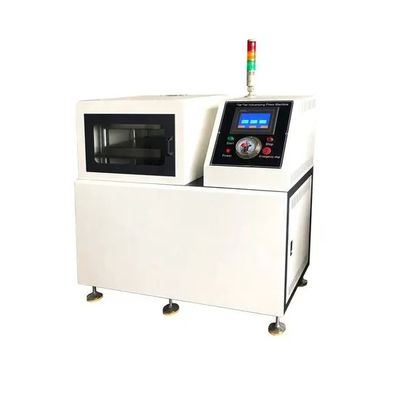

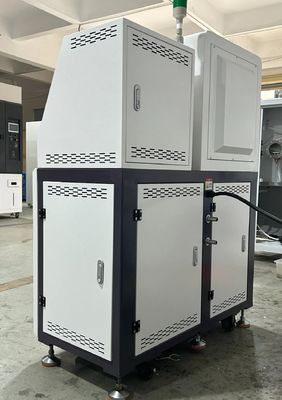

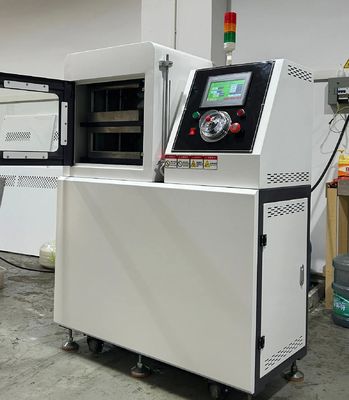

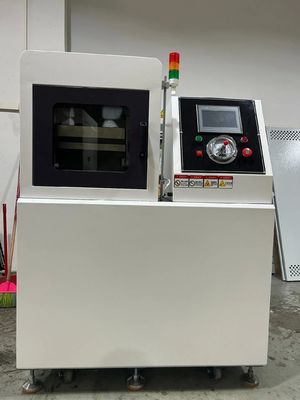

Detailed Photos

Company Profile

Introduction of Guangdong Guangce Instrument Technology Co.,Ltd

Packaging & Shipping

FAQ

Q: Are you a factory or a trading company?

A: We are a professional OEM testing equipment manufacturer.

Q: Why choose us?

A: We are a professional OEM manufacturer with 15 years of experience in R&D and production of polymer plastic testing instruments, and can provide production and processing customization.

Q: How can we guarantee the quality?

A: Always a pre-production sample before mass production and always a final inspection before shipment.

Q: What's the delivery time?

A: Within 10 working days after deposit is received. If we have products in stock or urgent orders, the delivery time will be shortened.

Q: What about the after-sale service?

A: Every machine from our factory has 12 months warranty. And we also provide life-long paid repair or service.

Q: What services can we provide?

A: Accepted Delivery Terms: EXW/FOB/CIF and so on. Accepted Payment Type: T/T/PayPal. Language Spoken: English, Chinese
