products details

Home Products

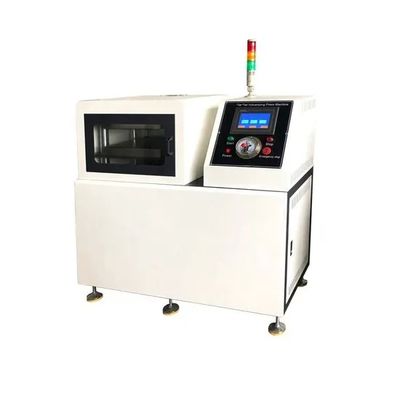

30 Ton Rubber Plate Vulcanizer with High Temperature Resistant Steel and PLC Touch Screen Control

MOQ:	1
Price:	2500

Detail Information

Product Description

Detail Information

Power Voltage:

3∮,AC380V

Main Unit Volume:

1200*750*1650 Mm

Weight:

≈680kg

Pressure Capacity:

30 Ton

Pressure Adjustment Accuracy:

10%

Platen Size:

250*250/300*300/350*350/400*400/450*450/500*500/600*600mm

Platen Hardness:

50~60HRC

Platen Flatness:

≤0.03mm

Platen Parallelism:

≤0.16mm

Temperature Range:

Normal Temperature -250ºC

Temperature Uniformity:

2.5ºC

Temperature Display Accuracy:

±1.0ºC

Timer Range:

0.1S~99min~9.9hr

Cylinder Speed:

11mm/s

Pressure Gauge Range:

0~200kg/sq.cm

Highlight:

High Temperature Resistant Steel Plate Vulcanizer

PLC Touch Screen Control Rubber Plate Vulcanizer

Dual Node Pressure Adjustable Plate Vulcanizing Machine

Product Description

Premium Lab Rubber Plate Vulcanizer for Durable Results

Model: GC-GREE-30

This series of plate vulcanizing machine is designed for pressing and molding various rubber model products and non-model products. It can also be used for pressing thermosetting plastics and foaming rubber/plastic products. The machine features an independent power mechanism and electrical system with centralized push-button control. Working pressure and heating temperature are adjustable within specified ranges. Available in manual and semi-automatic versions.

Heating Plate Features

Constructed with imported high-temperature resistant steel
Surface treated with deep carbonization and hard chrome plating
Fast heat transfer and cooling capabilities
Corrosion resistant with high hardness and no deformation
Built-in heater and thermostat for fast warming
Sensitive temperature measurement with uniform heat distribution

Product Parameters

Parameter	Specification
Pressure capacity	30 Ton
Pressure gauge	Dual node pressure adjustable, pressure adjustment accuracy of 10%
Platen size (mm metric)	250250/300300/350350/400400/450450/500500/600*600mm (optional)
Hot platen material	High temperature resistant imported steel plate, surface carbide quenching, special treatment for fast heat conduction, pressure parallel non-deformation, wear-resistant
Platen hardness	50~60HRC
Platen Flatness	≤0.03mm
Platen flatness and parallelism	≤0.16mm
Temperature range	Normal temperature -250ºC (customizable up to 500ºC)
Temperature uniformity	2.5ºC (uniformity decreases with larger platen size and higher temperature)
Temperature controller	Precision module with PLC touch screen control, display inside the touch screen, numerical value display
Temperature control method	Temperature control motherboard precision control, self-tuning with high-precision sensors, temperature display accuracy: ± 1.0 ºC
Timer	Setting display in touch panel, time range 0.1S~99min~9.9hr
Heater	Heating mold built-in cylindrical (power varies according to platen area configuration)
Rising time	Normal temperature~160ºC about 15mins
Two hot plates	The hot plate can be set to control the temperature separately
Heating method	Electrical heating
Cooling method	Water cooling
Hydraulic system	CREE.6 hydraulic flow closed-loop control system, oil pump drive high-performance electro-hydraulic with high-precision non-resistance cylinder piston execution rate control mode, with pressure automatic compensation function
Cylinder Stroke	Max 150mm (customizable)
Cylinder speed	11mm/s
Pressure gauge	0~200kg/sq.cm
Mold opening method	Fully automatic rise and fall (with manual-automatic dual function)
Safety device	Safety guards, safety doors
Number of safety devices	Four
Main unit volume	(W×D×H)1200×750×1650 mm
Power Voltage	3∮,AC380V
Weight	≈680kg

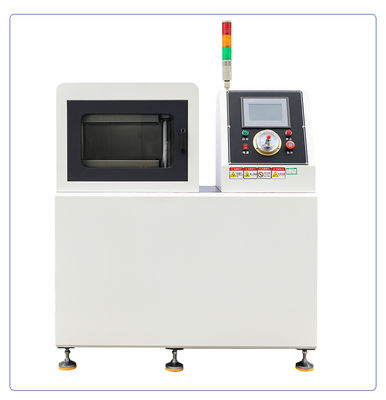

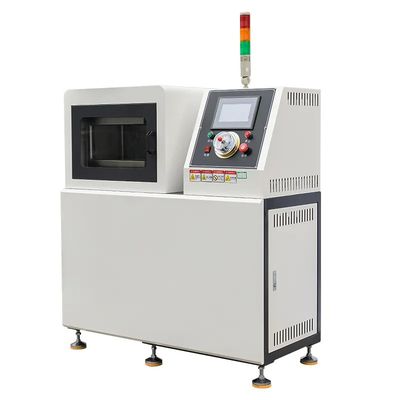

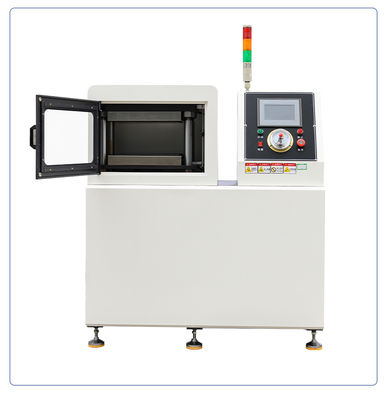

Detailed Photos

Packaging & Shipping

Frequently Asked Questions

Q: Are you a factory or a trading company?

A: We are a professional OEM testing equipment manufacturer.

Q: Why choose us?

A: We are a professional OEM manufacturer with 15 years of experience in R&D and production of polymer plastic testing instruments, and can provide production and processing customization.

Q: How can we guarantee the quality?

A: Always a pre-production sample before mass production and always a final inspection before shipment.

Q: What's the delivery time?

A: Within 10 working days after deposit is received. If we have products in stock or urgent orders, the delivery time will be shortened.

Q: What about the after-sale service?

A: Every machine from our factory has 12 months warranty. And we also provide life-long paid repair or service.

Q: What services can we provide?

A: Accepted Delivery Terms: EXW/ FOB/CIF and so on.
Accepted Payment Type: T/T.Pay Pal:
Language Spoken: English, Chinese
