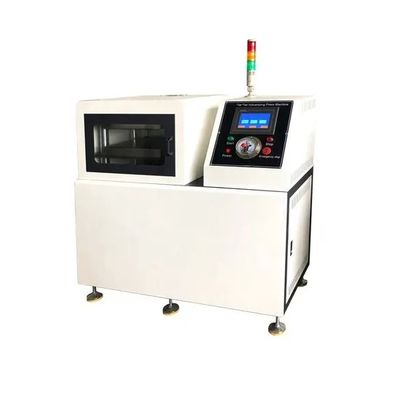

Touch Screen Rubber Plate Vulcanizer with CREE.6 Hydraulic Flow 150mm Cylinder Stroke and 11mm/s Cylinder Speed

MOQ:	1
Price:	2600

Detail Information

Product Description

Detail Information

Pressure Capacity:

30 Ton

Platen Size:

250*250/300*300/350*350/400*400/450*450/500*500/600*600mm

Platen Hardness:

50~60HRC

Platen Flatness:

≤0.03mm

Platen Parallelism:

≤0.16mm

Temperature Range:

Normal Temperature -250ºC

Temperature Uniformity:

2.5ºC

Timer Range:

0.1S~99min~9.9hr

Rising Time:

15mins (Normal Temperature~160ºC)

Cylinder Stroke:

Max 150mm

Cylinder Speed:

11mm/s

Pressure Gauge:

0~200kg/sq.cm

Main Unit Volume:

1200×750×1650 Mm

Power Voltage:

3∮,AC380V

Weight:

≈680kg

Highlight:

CREE.6 Hydraulic Flow Rubber Plate Vulcanizer

150mm Cylinder Stroke Plate Vulcanizing Machine

11mm/s Cylinder Speed Rubber Vulcanize Machine

Product Description

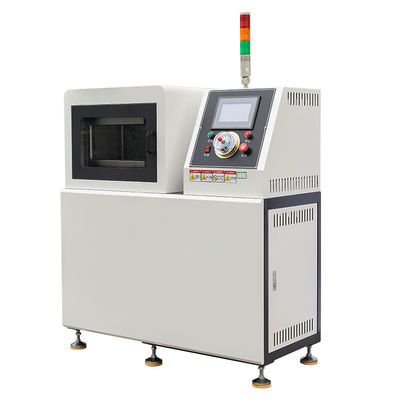

Touch Screen 30 Ton Lab Rubber Press Plate Vulcanize Machine

Rubber Plate Vulcanizer

Model: GC-GREE-30

This plate vulcanizing machine series is designed for press molding various rubber model products and non-model products. It also accommodates thermosetting plastics and foaming rubber/plastic products. Featuring an independent power mechanism and electrical system with push-button centralized control, it offers adjustable working pressure and heating temperature. Available in manual and semi-automatic versions.

Heating Plate Features

Constructed with imported high-temperature resistant steel with deep carbonization and hard chrome plating surface treatment
Fast heat transfer and cooling capabilities with corrosion resistance and high hardness
Built-in heaters and thermostats for rapid warming with sensitive, uniform temperature measurement
Minimal temperature error range for precise operations

Product Parameters

Pressure capacity	30 Ton
Pressure gauge	Dual node pressure adjustable, pressure adjustment accuracy of 10%
Platen size (mm metric)	250250/300300/350350/400400/450450/500500/600*600mm (optional)
Hot platen material	High temperature resistant imported steel plate, surface carbide quenching, special treatment for fast heat conduction, pressure parallel non-deformation, wear-resistant
Platen hardness	50~60HRC
Platen Flatness	≤0.03mm
Platen flatness and parallelism	≤0.16mm
Temperature range	Normal temperature -250ºC [customizable up to 500ºC]
Temperature uniformity	2.5ºC [varies with platen size and temperature]
Temperature controller	Precision module with PLC touch screen control, display inside the touch screen, numerical value display
Temperature control method	Temperature control motherboard precision control, self-tuning with high-precision sensors, temperature display accuracy: ± 1.0 ºC
Timer	Setting display in touch panel, time range 0.1S~99min~9.9hr
Heater	Heating mold built-in cylindrical [power varies according to platen area configuration]
Rising time	Normal temperature~160ºC about 15mins
Two hot plates	Separate temperature control for each hot plate
Heating method	Electrical heating
Cooling method	Water cooling
Hydraulic system	CREE.6 hydraulic flow closed-loop control system with high-performance electro-hydraulic drive and high-precision non-resistance cylinder piston execution rate control
Cylinder Stroke	Max 150mm [customizable]
Cylinder speed	11mm/s
Pressure gauge	0~200kg/sq.cm
Mold opening method	Fully automatic rise and fall (with manual-automatic dual function)
Safety device	Safety guards, safety doors (four safety devices total)
Main unit volume	(W×D×H)1200×750×1650 mm
Power Voltage	3∮, AC380V
Weight	≈680kg

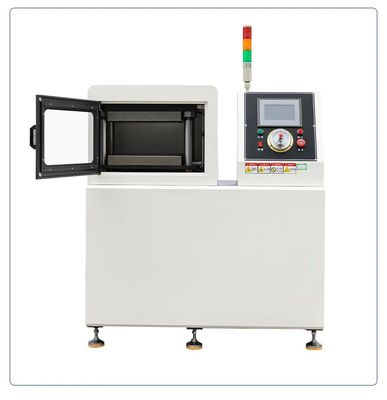

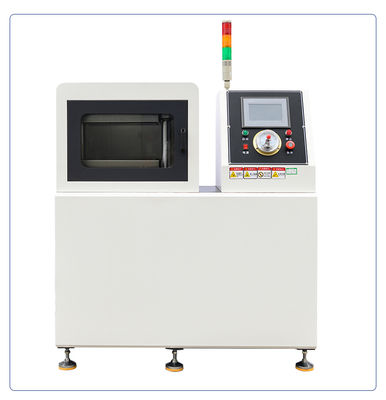

Detailed Photos

Company Profile

Introduction of Guangdong Guangce Instrument Technology Co.,Ltd

Packaging & Shipping

FAQ

Q: Are you a factory or a trading company?

A: We are a professional OEM testing equipment manufacturer.

Q: Why choose us?

A: We are a professional OEM manufacturer with 15 years of experience in R&D and production of polymer plastic testing instruments, and can provide production and processing customization.

Q: How can we guarantee the quality?

A: Always a pre-production sample before mass production and always a final inspection before shipment.

Q: What's the delivery time?

A: Within 10 working days after deposit is received. If we have products in stock or urgent orders, the delivery time will be shortened.

Q: What about the after-sale service?

A: Every machine from our factory has 12 months warranty. And we also provide life-long paid repair or service.

Q: What services can we provide?

A: Accepted Delivery Terms: EXW/ FOB/CIF and so on.
Accepted Payment Type: T/T.Pay Pal:
Language Spoken: English, Chinese
