High Precision 30 Ton Pressure Capacity Corrosion Resistant Vulcanizer Plate Vulcanizing Machine for Rubber and Plastic Manufacturing

MOQ:	1
Price:	2499

Detail Information

Product Description

Detail Information

Model NO.:

GC-GREE-30

Power Voltage:

3∮,AC380V

Main Unit Volume:

1200*750*1650 Mm

Weight:

≈680kg

Pressure Capacity:

30 Ton

Platen Size:

250*250/300*300/350*350/400*400/450*450/500*500/600*600mm

Platen Hardness:

50~60HRC

Platen Flatness:

≤0.03mm

Temperature Range:

Normal Temperature -250ºC

Temperature Uniformity:

2.5ºC

Heating Method:

Electrical Heating

Cooling Method:

Water Cooling

Cylinder Stroke:

Max 150mm

Cylinder Speed:

11mm/s

Pressure Gauge:

0~200kg/sq.cm

Highlight:

30 Ton Pressure Capacity Vulcanizer

High Precision Plate Vulcanizing Machine

Corrosion Resistant Vulcanizer

Product Description

Advanced High Precision Vulcanizers for Plastic and Rubber Manufacturing

Lab Rubber Plate Vulcanizer - Model GC-GREE-30

This series of plate vulcanizing machine is designed for press molding various rubber model products and non-model products. It can also process thermosetting plastics and foaming rubber/plastic products. The machine features:

Independent power mechanism and electrical system with push button centralized control
Adjustable working pressure and heating temperature within specified ranges
Available in manual and semi-automatic configurations

Heating Plate Features

Constructed with imported high temperature resistant steel
Surface treated with deep carbonisation and hard chrome plating processes
Fast heat transfer and cooling capabilities
Corrosion resistant, high hardness, and deformation-resistant
Built-in heater and thermostat for fast warming and precise temperature control

Product Specifications

Parameter	Specification
Pressure capacity	30 Ton
Pressure gauge	Dual node pressure adjustable, pressure adjustment accuracy of 10%
Platen size (mm metric)	250250/300300/350350/400400/450450/500500/600*600mm (optional)
Hot platen material	High temperature resistant imported steel plate with special surface treatment
Platen hardness	50~60HRC
Platen flatness	≤0.03mm
Platen flatness and parallelism	≤0.16mm
Temperature range	Normal temperature -250ºC (customizable up to 500ºC)
Temperature uniformity	2.5ºC
Temperature controller	Precision module with PLC touch screen control
Timer	0.1S~99min~9.9hr range
Heating method	Electrical heating
Cooling method	Water cooling
Cylinder Stroke	Max 150mm (customizable)
Main unit volume	1200×750×1650 mm (W×D×H)
Power Voltage	3∮, AC380V
Weight	≈680kg

Additional Features

Hydraulic system with CREE.6 hydraulic flow closed-loop control
Automatic pressurization, pressure preservation, and unpressurization
Fully automatic rise and fall mold opening (with manual-automatic dual function)
Four safety devices including safety guards and doors

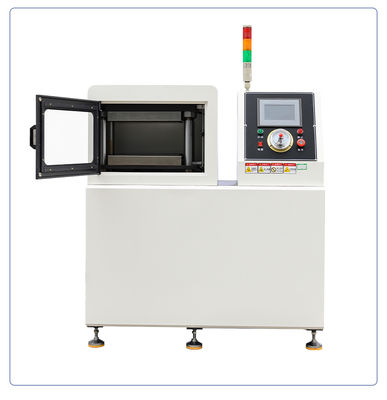

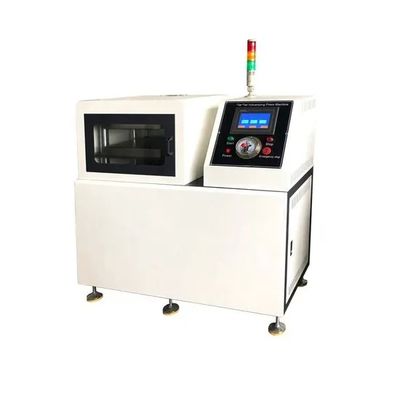

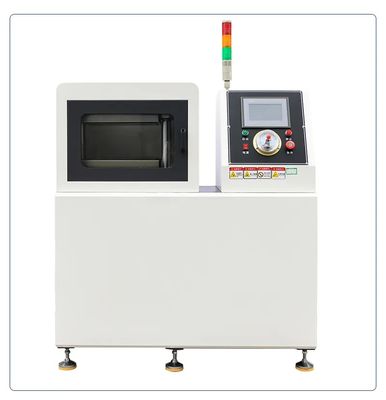

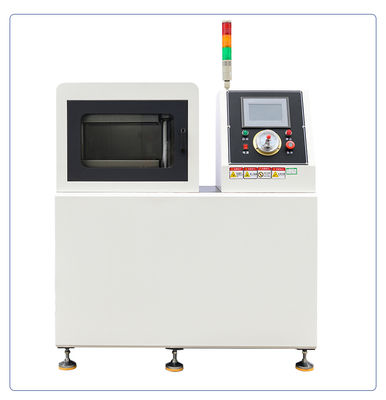

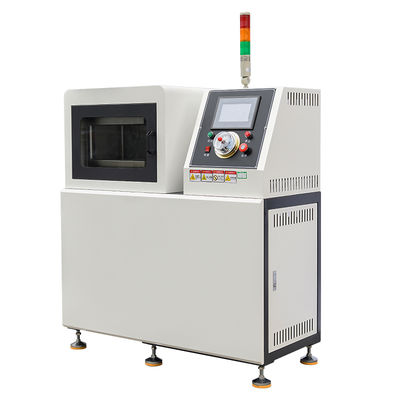

Product Images

About Guangdong Guangce Instrument Technology Co.,Ltd

Packaging & Shipping

Frequently Asked Questions

Q: Are you a factory or a trading company?

A: We are a professional OEM testing equipment manufacturer.

Q: Why choose us?

A: We are a professional OEM manufacturer with 15 years of experience in R&D and production of polymer plastic testing instruments, and can provide production and processing customization.

Q: How can we guarantee the quality?

A: Always a pre-production sample before mass production and always a final inspection before shipment.

Q: What's the delivery time?

A: Within 10 working days after deposit is received. If we have products in stock or urgent orders, the delivery time will be shortened.

Q: What about the after-sale service?

A: Every machine from our factory has 12 months warranty. And we also provide life-long paid repair or service.

Q: What services can we provide?

A: Accepted Delivery Terms: EXW/ FOB/CIF and so on. Accepted Payment Type: T/T.Pay Pal. Language Spoken: English, Chinese
