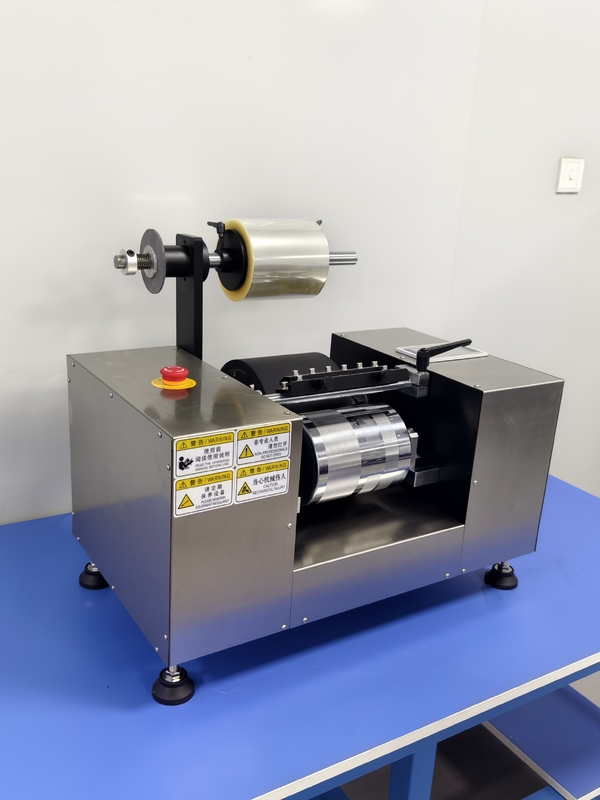

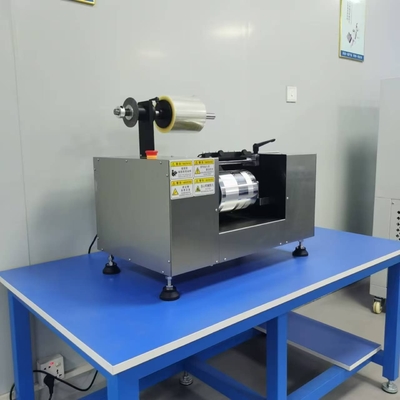

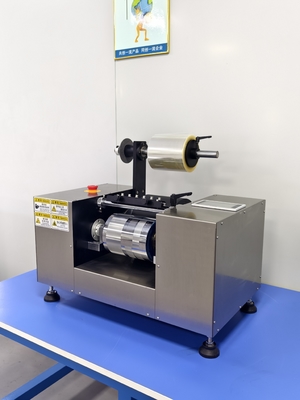

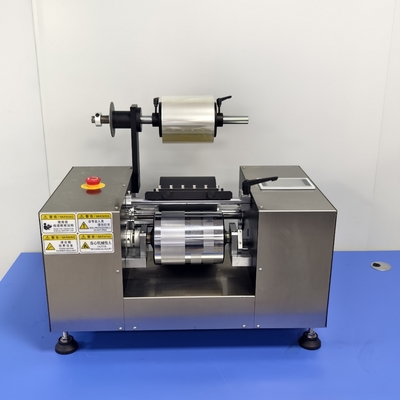

Gravure Ink Proofer (Electric)
  • name
  • name
  • name
  • name
  • name

Gravure Ink Proofer (Electric)

Brand Name: GC
Model Number: GC-AY-E
MOQ: 1
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Dongguan, China
2. Printing Pressure:
0-4mm
Printing Speed:
0–100 M
Net Weight:
100KG
Voltage:
220V 50Hz
Gravure Roller Size:
Length 180mm
Packaging Details:
Exported plywood packaging
Supply Ability:
300 sets / month
Product Description

Gravure Ink Proofer (Electric)

Product Description

  1. Electric Pressure System
  2. Operation via Rotogravure (Circumferential) Printing Method
  3. Printing Pressure (0-4mm); Pressure at 1mm: 0.06mm; Printing Speed (Approx. 0-100m/min); Capable of Low-Precision Registration
  4. Adjustable Pressure and Speed for Printing Doctor Blade; Computer-Programmed Control System
  5. Suitable for Gravure Printing Ink Proofing (Applicable to Water-Based Inks, Solvent-Based Inks, and Conductive Ink Testing); Easy to Operate
  6. Spectrodensitometer for Ink Color Detection



Parameters

Net Weight 100KG
Height 240 mm
Length 380 mm
Width 690 mm
Voltage 220 V 50 Hz
Gravure Cylinder Length 180 mm;  Diameter: 140 mm
Rubber Roller  Width: 120 mm;  Diameter: 220 mm
Power (W) 450 W
Color Sample Size 45×45 mm per Grid (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 85%, 90%, 95%, 100%, Gray Scale)



Details

Gravure Ink Proofer (Electric) 0



About us

Gravure Ink Proofer (Electric) 1

Gravure Ink Proofer (Electric) 2

Gravure Ink Proofer (Electric) 3

Gravure Ink Proofer (Electric) 4

Gravure Ink Proofer (Electric) 5

Package and Shipping

Gravure Ink Proofer (Electric) 6

Gravure Ink Proofer (Electric) 7

RFQ

Q: Are you a factroy or trading company?
We are a professional manufacturer and provide OEM services to customers. Welcome to visit our company and factory.

Q:Why choose us?
A: We are a professional OEM manufacturer with l5 years of experience in R&D and production of polymer plastic testing instruments, and can provide production and processing customization.

Q: How can we guarantee the quality?
A: Always a pre-production sample before mass production and always a final inspection-before shipment.

Q: What is your delivery time ?
A: The test machine are most in stock, so we can delivery within 3-5 working days after received the payment. We can also accept the urgent order for prompt shipment.

Q: What is the shipping method?
A: lt could be shipped by sea,by air or by expreSS(EMS,UPS,DHL,TNT,FEDEX and ect)Please confirm with us before placing orders.

Q:What about the after-sale service?
A: Every machine from our factory has 12 months warranty. And we also provide life-long paid repair or service.




Tags:

ink rub tester

ink proofer

ink abrasion tester
