UV Climat Laboratary Accelerated Aging Chamber accept customized

Name: UV Climat Laboratary Accelerated Aging Chamber accept customized
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-UV-B
Availability: InStock

Brand Name:	GC
Model Number:	GC-UV-B
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-UV-B

Trademark:

Origin:

China

Package Size:

146.00cm * 75.00cm * 170.00cm

Package Gross Weight:

200.000kg

Customization:

Available

Transport Package:

Wooden Packaging

Specification:

45*117*50cm

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Product Description

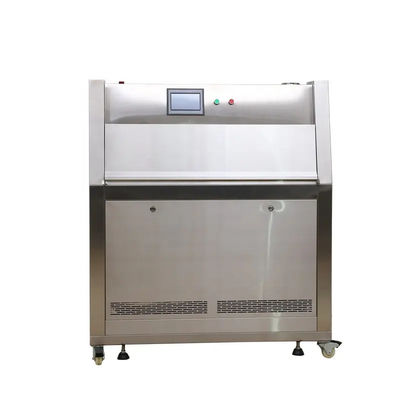

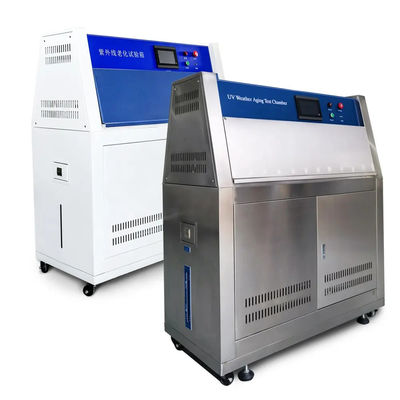

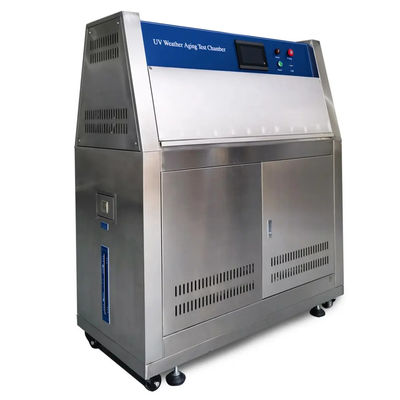

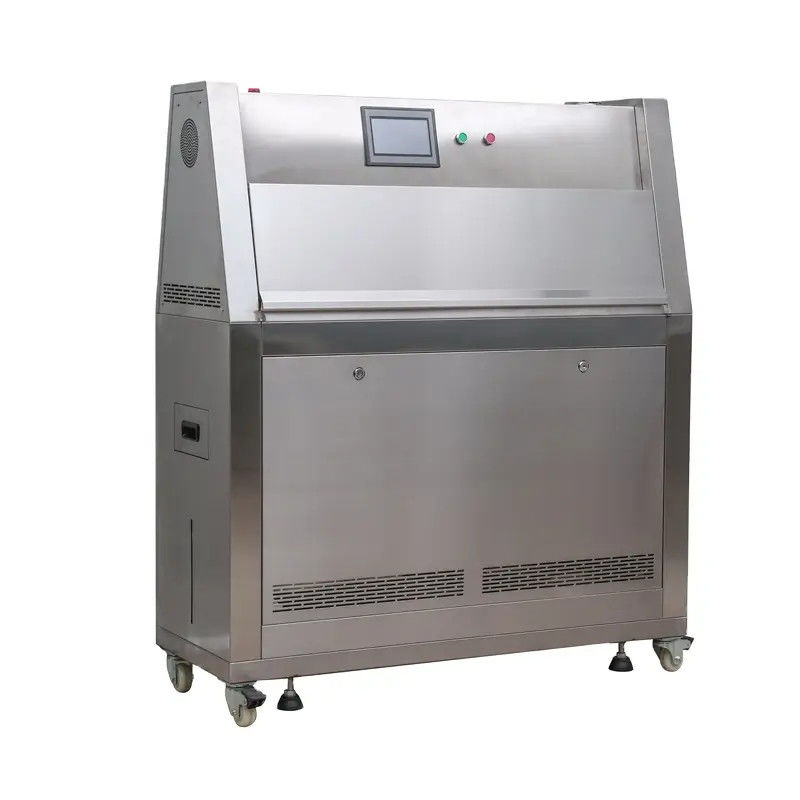

UV Aging Test Chamber

Product Introduction

The test equipment simulates the damage caused by the sun's ultraviolet light, and the weather resistance test is carried out on the material by exposing the tested material to light under controlled high temperature. It uses ultraviolet lamps to simulate the radiation of sunlight, and simulates dew and rain through condensation and water spraying. In just a few days or weeks, the ultraviolet irradiation equipment can reproduce the effects of outdoors that take months or even years. Damage that takes time to occur, including fading, color change, tarnish, chalking, cracking, cracks, wrinkling, blistering, embrittlement, strength reduction, oxidation, etc. The test results can be used to select new materials and improve existing There is a change in the material, or the formulation of the evaluation material.

Test Standards

1. GB/T14552-2008 "National Standard of the People's Republic of China--Plastic, Coating, Rubber Materials for Mechanical Industry Products-Artificial Climate Accelerated Test Method" a, Fluorescence UV/condensation test method.

2. GB/T16422.3-1997 GB/T16585-96 related analysis methods.

3. GB/T16585-1996 "National Standard of the People's Republic of China - Test Method for Artificial Weathering of Vulcanized Rubber (Fluorescent UV Lamp)".

4. GB/T16422.3-1997 "Plastic laboratory light source exposure test method" and other corresponding standard items design and manufacture standards.

5. Comply with international testing standards: ASTM D4329, ISO 4892-3, ISO 11507, SAE J2020 and other current UV aging test standards.

Model: GC-UV-B

Model		GC-UV-B
Dimensions of the working chamber (cm)		4511750CM
Boundary dimension(cm)		70135145CM
Power		4.0(KW)
Performance index	Temperature range	Rt+10ºC~70ºC
	Humidity range	≥95%R.H
	Distance between lamps	35mm
	Distance between sample and lamp	50mm
	Support quantity of the sample	Length 300mm* width 75mm, about 48 pieces
	Ultraviolet wavelengths	290nm~400nm UV-A340,UV-B313,UV-C351( instructions at time of order )
	Lamp power	40W
Control system	Controllor	touch screen microcomputer controller
	Illumination heating system	Fully independent system, nickel-chromium alloy electric heating heater
	Condensation humidification system	All stainless steel shallow surface evaporative humidifier
	Blackboard temperature	Bimetal blackboard thermometer
	Water supply system	Automatic control for humidification and water supply
	Exposure method	Exposure to moisture condensation, exposure to light radiation
Safety protection		Leakage, short circuit, over temperature, water shortage, over current protection
