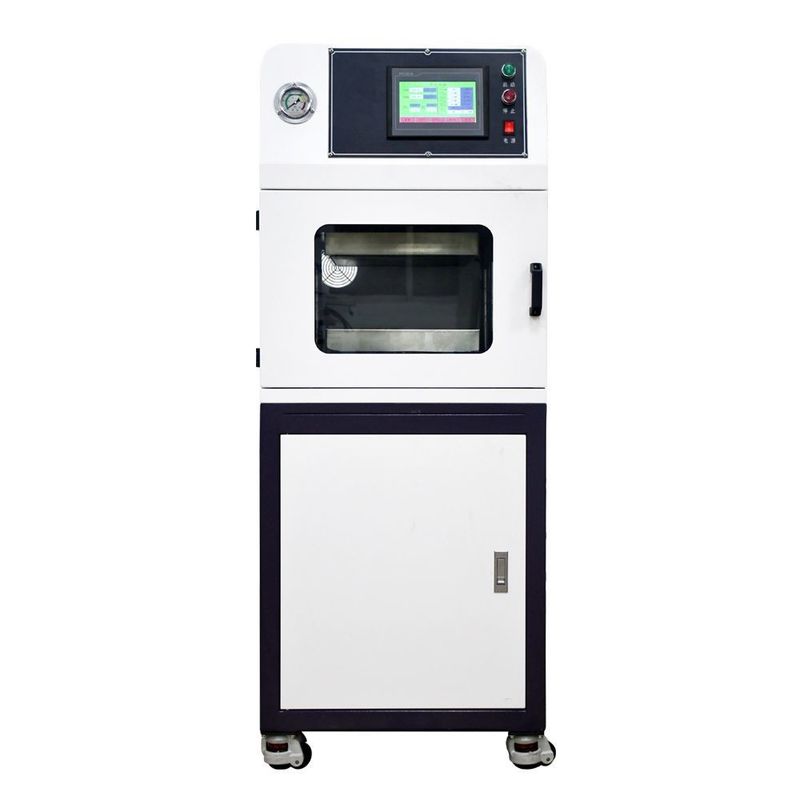

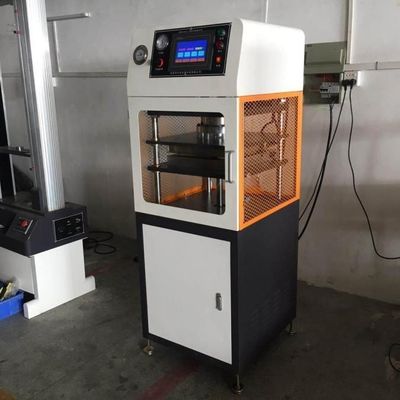

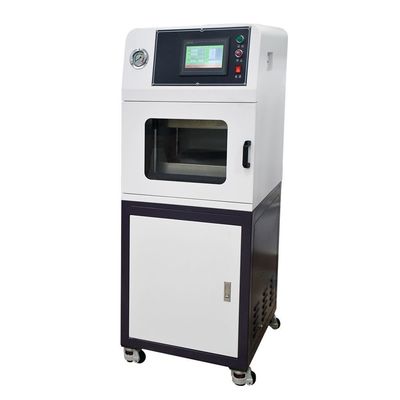

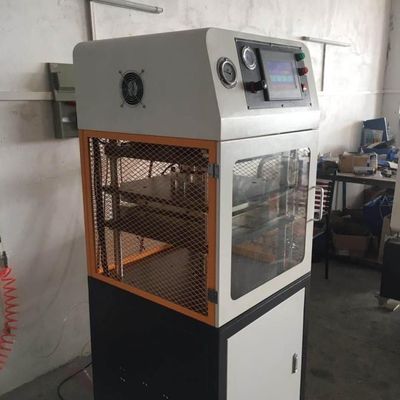

Four Column Three Plate Pneumatic Tablet Press Machine For Industrail Use

Name: Four Column Three Plate Pneumatic Tablet Press Machine For Industrail Use
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-RY-5
Availability: InStock

Brand Name:	GC
Model Number:	GC-RY-5
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-RY-5

Trademark:

Origin:

Guangdong

Supply Ability:

100PCS/Month

Customization:

Available

Transport Package:

Wooden Packages

Specification:

About 1KG

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Industrail Use Tablet Press Machine

Four Column Tablet Press Machine

Pneumatic Tablet Press Machine

Product Description

Pneumatic Tablet Press Machine

Model: GC-LX-D

Product Introduction:

It is suitable for the production and use of thermoforming, vulcanization sample preparation , and press-in products. For example: membrane switch, speaker film and other concave-convex hot stamping molding, thermal bonding and crimping of thin films, crimping and molding of electrical products, etc., especially suitable for plastic products, trademarks, epoxy products, electronics, packaging and printing, textile factories Special machinery for molding, press-fitting and assembling of various products.

Applications:

*Hot stamping of concave and convex surfaces such as membrane switch and horn film;
*Plastic granule pressure sheet test, thin film thermal bonding crimping;
*Suitable for the production and use of large-area thermoformed products.

Features:

* Four column and three plate steel structure is adopted, the movable plate is parallel to the working surface and the four-column is matched with precision guide bushing, so the precision is high;
*Pressure, stroke, speed, pressure holding time, etc. can be adjusted according to the requirements of the pressing process;
* The temperature of the upper and lower heating plates is controlled separately, using RKC intelligent temperature controller, the temperature control is accurate ± 1 ºC;
*Taiwan brand air pressure, electrical components and Japanese NOK seals are used, which are durable;
* Two-handed operation, with an emergency stop button, easy to install and adjust the mold, high safety;
*There are casters and foot cup holders under the workbench, which are easy to move, labor-saving and efficient;
* Optional safety photoelectric protection device, humanized, safer work;
*Special requirements such as non-standard table size and large pressure models can be customized.

Technical parameters:

Machine capacity	5 ton
Cylinder pressure	Within 8KG
Platen area	350*350mm
Platen flatness	0.03mm
Maximum strok	150 mm
Opening height	150 mm
Heating time	0-30 min
Temperature range	Room temperature -300±1 ºC
Uniform temperature	±1.5ºC
Electric heating tube power	4.8KW
Motor Power	1.5KW
Using electric	220V
Weight (reference)	80KG
