50HZ Digital Display Charpy Impact Testing Machine PLC Computer Control

Name: 50HZ Digital Display Charpy Impact Testing Machine PLC Computer Control
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-JZL-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-JZL-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-JZL-A

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Impact Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Control:

Computer Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Trademark:

Origin:

China

Package Size:

89.00cm * 40.00cm * 74.00cm

Package Gross Weight:

85.000kg

Customization:

Available

Warranty:

1 Year

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

50HZ Impact Testing Machine

PLC Impact Testing Machine

PLC charpy impact test machine

Product Description

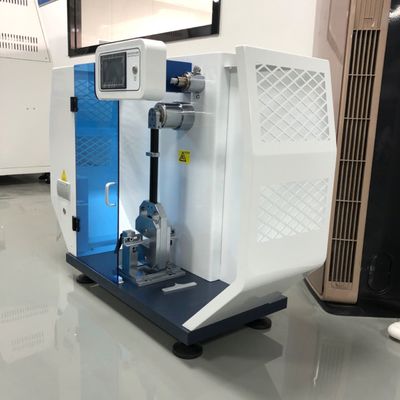

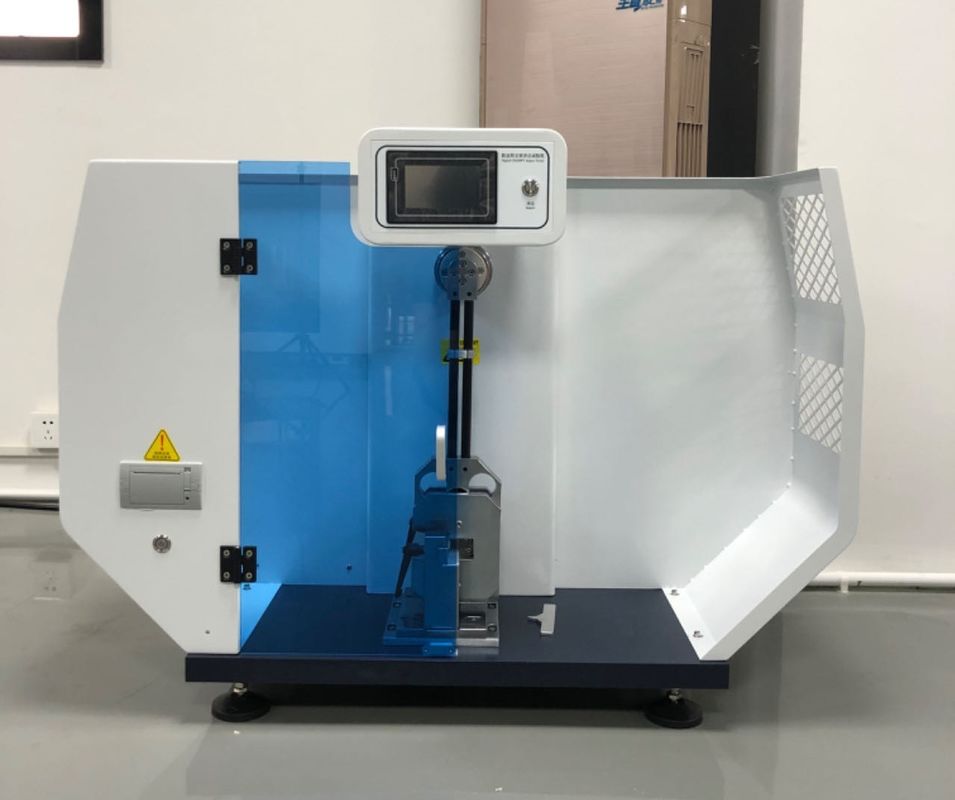

Digital Display Charpy Impact Testing Machine Computer Control

-The digitdl Izod impact testing machine is a device used to measure the impact strength or toughness of a material. It is commonly used in engineering and manufacturing industries to assess the ability of a material to withstand sudden impacts or shocks.The results of Izod impact tests are crucial for ensuring the safety and reliability of products in various applications, such as automotive components, structural elements, and consumer goods.

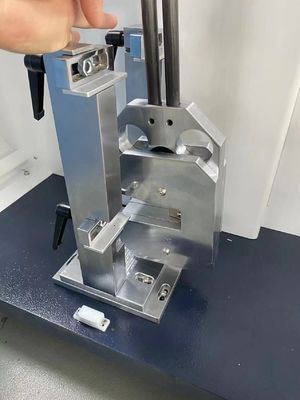

-The machine consists of a pendulum with a striking edge, which is released from a certain height to strike a notched sample of the material being tested. The pendulum's energy at the point of impact is measured, and this value is used to calculate the material's impact strength.

50HZ Digital Display Charpy Impact Testing Machine PLC Computer Control 0

Product Name	Digital Izod Impact Test Machine
Item	IZOD
The pendulum energy	11J 12J
Display mode	Color touch screen
Cutting method	Hand automatic integration
Pendulum pre-evaluation angle	150ºC
Impact velocity	3.5m/s
Angle accuracy	0.01J
Distance between Pendulum and the impact blade	335mm
Distance between impact blade to upper mouth	22mm
Blade fillet radius	R=0.8±0.2mm
Output method	Printout
Power	220V,50HZ
The Pendulum Energy	1j, 2.75j, 5.5j
Cutting Method	Hand Automatic Integration
Angle Accuracy	0.01J
Package	Wooden package
Display	Digital

Guangce main products are: melt flow index tester, pendulum impact testing machine, tensile testing machine, thermal deformation Vicat softening point testing machine, constant temperature and humidity test chamber, thermal shock test chamber, high and low temperature test chamber, xenon aging test chamber, ozone aging test chamber, high and low temperature tensile testing machine, combustion test chamber and other testing machines.

50HZ Digital Display Charpy Impact Testing Machine PLC Computer Control 3

50HZ Digital Display Charpy Impact Testing Machine PLC Computer Control 9

50HZ Digital Display Charpy Impact Testing Machine PLC Computer Control 11
