Lab DIN Fabric Abrasion Resistance Tester Machine 110V 40rpm

Name: Lab DIN Fabric Abrasion Resistance Tester Machine 110V 40rpm
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-NM-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-NM-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-NM-A

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Abrasion Resistance Tester

Maxcapacity:

>1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Control:

Manual Control

Weight:

0-100Kg

Power Source:

AC110V

Roller Length:

460 Mm

Roller Speed:

40rpm

Wear Stroke:

40mm(20 Mm)

Transport Package:

Wooden Package

Specification:

95*66*31CM

Trademark:

Origin:

China

Package Gross Weight:

50.000kg

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Lab Abrasion Resistance tester

110V Abrasion Resistance tester

Lab fabric abrasion tester

Product Description

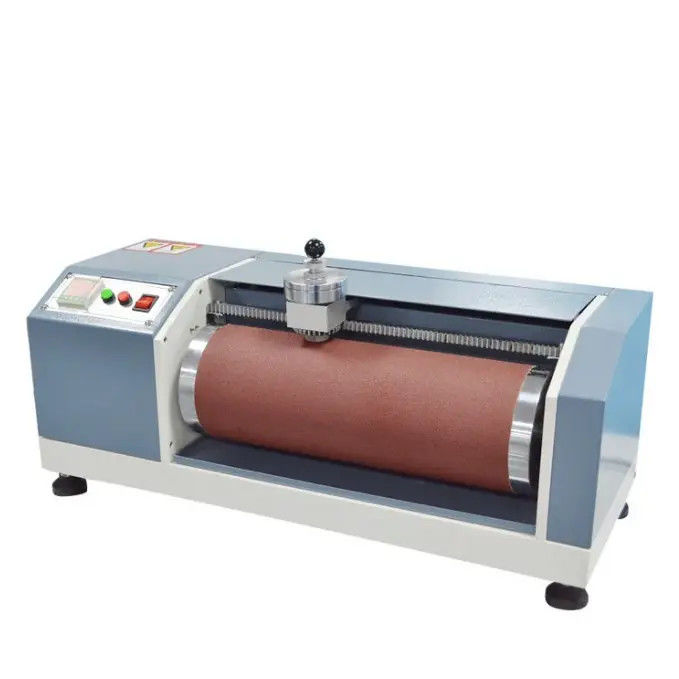

DIN Abrasion Resistance Tester abrasion test machine for lab use

The DIN Abrasion Resistance tester works by rubbing a rotating wheel, typically made of specified abrasive materials like sandpaper or a diamond disc, against a test sample at a constant speed. The abrasion resistance is measured by comparing the condition of the test sample before and after the abrasion test. The number of cycles or rotations required for a specific level of wear indicates the material's durability under simulated wear conditions.

This test is commonly used in industries such as automotive, construction, aerospace, and fashion to assess the suitability of materials for applications where resistance is crucial. Results from the DIN abrasion resistance tester can help manufacturers optimize their product design, select appropriate materials, or ensure that coatings and finishes meet the desired performance standards.

Roller diameter	φ150mm
Roller length	460 mm
Roller speed	40rpm
Wear stroke	40mm(20 mm)
Wear rate	0.32 m/S
Inclination	3°
Test piece diameter	φ16 mm
Thickness	6~15 mm
Test load	2.5N,5N
Fixture lateral displacement	4.2 mm/roller per turn
Volume	956631cm
Power supply	220V 50HZ
Weight	About 50kg
Dimension	956631CM
Package	Wooden Package

Lab DIN Fabric Abrasion Resistance Tester Machine 110V 40rpm 0

Lab DIN Fabric Abrasion Resistance Tester Machine 110V 40rpm 1

Guangdong Guangce Instrument Technology Company Limited, located in Dongguan City, is a technology-based private enterprise engaged in research and development, production, OEM and sales of scientific and technological equipment manufacturing.

The company has 15 years of production experience, has various software and hardware design and research and development capabilities, and also have experienced and high-quality technical team and professional sales team.

Lab DIN Fabric Abrasion Resistance Tester Machine 110V 40rpm 2

Lab DIN Fabric Abrasion Resistance Tester Machine 110V 40rpm 8

Lab DIN Fabric Abrasion Resistance Tester Machine 110V 40rpm 10
