Electronic Climatic Environmental Test Chambers Cold Thermal Shock machine

Name: Electronic Climatic Environmental Test Chambers Cold Thermal Shock machine
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-CJ-80
Availability: InStock

Brand Name:	GC
Model Number:	GC-CJ-80
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-CJ-80

Warranty:

1 Year

Transport Package:

Wooden Package

Specification:

140*185*150cm

Trademark:

Origin:

China

Package Size:

140.00cm * 185.00cm * 150.00cm

Package Gross Weight:

220.000kg

Customization:

Available

After-sales Service:

1 Year

Power Supply:

220V

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Electronic Environmental Test Chambers

Climatic Environmental Test Chambers

Climatic thermal shock machine

Product Description

Electronic Cold And Thermal Shock Climatic Chamber Environment chamber

A thermal shock test machine is a testing equipment used to subject materials or products to rapid changes in temperature to determine their resistance to thermal shock.
The machine has two chambers, one hot and one cold, and a mechanism to quickly transfer the test sample between the two chambers. The hot chamber can reach temperatures up to 200°C, while the cold chamber can reach temperatures as low as -80°C.
The rapid temperature changes can cause thermal stress, which can lead to cracks, fractures, or other failures in the material or product being tested. The thermal shock test machine is commonly used in industries such as aerospace, automotive, electronics, and materials science to evaluate the durability and reliability of products and materials under extreme temperature conditions.

Product Name	Thermal Shock Test Chamber
Internal size	80L:W500H400D400mm(Can be customized according to customer needs)
External size	80L:W1400H1850D1500mm(Can be customized according to customer needs)
Temperature shock range	High temperature +60ºC~ +150ºC Low temperature -40ºC~ -10ºC
Preheating temperature range	60ºC--200ºC
High temperature tank heating time	RT~+200ºC≤30min (RT:+10~+30ºC)
Precooling temperature range	(-10)ºC~ (-70)ºC
Low temperature tank cooling time	RT~-70ºC≤50min (RT:+10~+30ºC)
Temperature fluctuation	±1.0ºC
Temperature uniformity	±2.0ºC
Throttle conversion time	≤5S
Impact recovery time	(-40)ºC~(+150)ºC≤5min
Heating system	Fin-type radiating tube-shaped stainless steel electric heater 1, high temperature tank 9KW 2, low temperature tank 6KW
Compressor	Original imported French "Taikang" brand fully enclosed compressor
Evaporator	Multi-stage automatic load capacity adjustment of bullying fins
Expansion valve	Danvers imported original components from Denmark

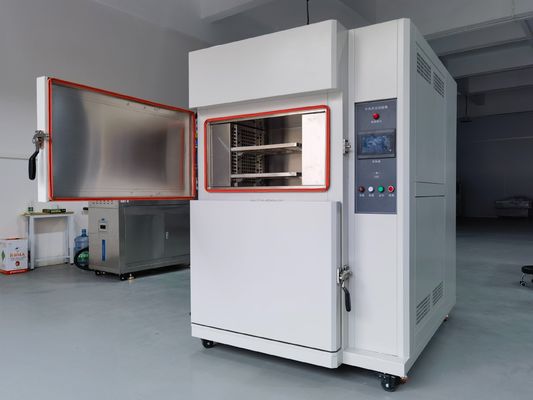

Electronic Climatic Environmental Test Chambers Cold Thermal Shock machine 1

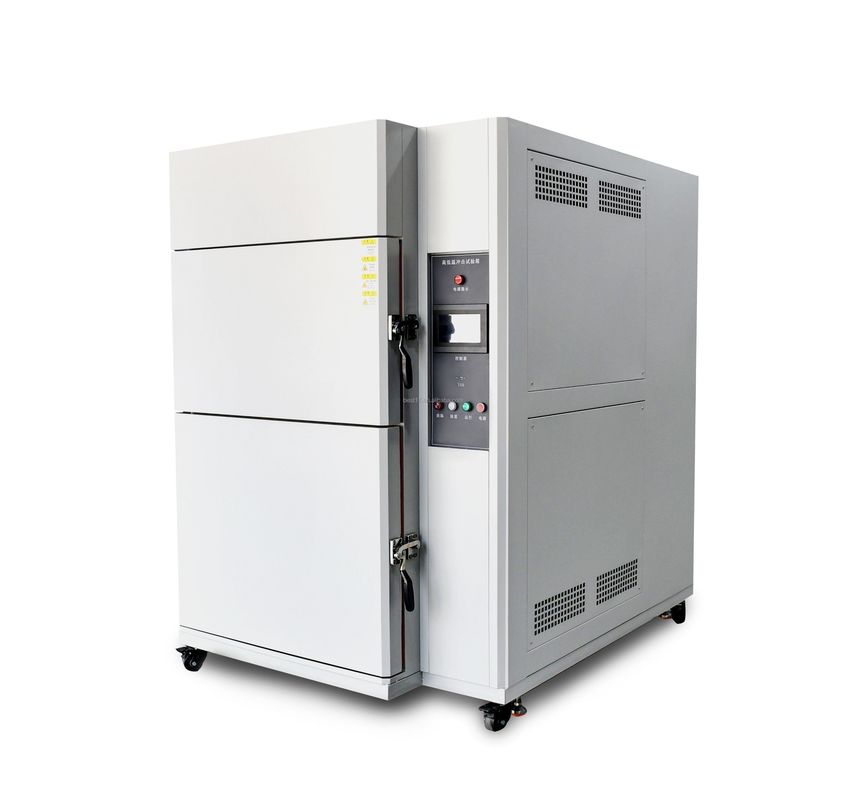

Electronic Climatic Environmental Test Chambers Cold Thermal Shock machine 2
