Automatic Electric Charpy V Notch Cutter Machine Precision Sample Processing

Name: Automatic Electric Charpy V Notch Cutter Machine Precision Sample Processing
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-QK-E
Availability: InStock

Brand Name:	GC
Model Number:	GC-QK-E
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-QK-E

Type:

Notch Sample Machine

Maxcapacity:

<1000KN

Weight:

0-100Kg

Power Source:

AC220V

Oil Cylinder Position:

Table Stroke:

>160mm

Feed Speed:

30mm/Min

Transport Package:

Wooden Box Packaging

Specification:

45*45*42

Trademark:

Origin:

Guangdong, China

Package Size:

45.00cm * 45.00cm * 42.00cm

Package Gross Weight:

40.000kg

Customization:

Available

After-sales Service:

Online Guidance

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Automatic v notch cutter

Sample Processing v notch cutter

Electric charpy v notch cutter

Product Description

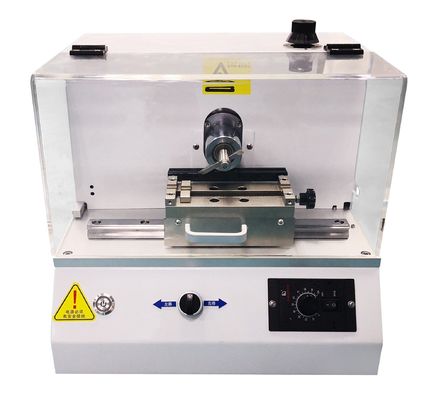

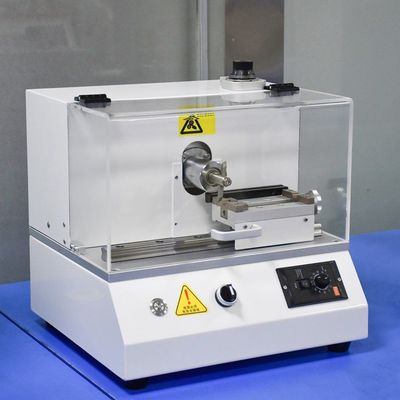

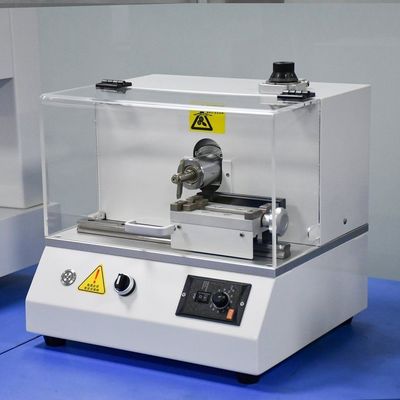

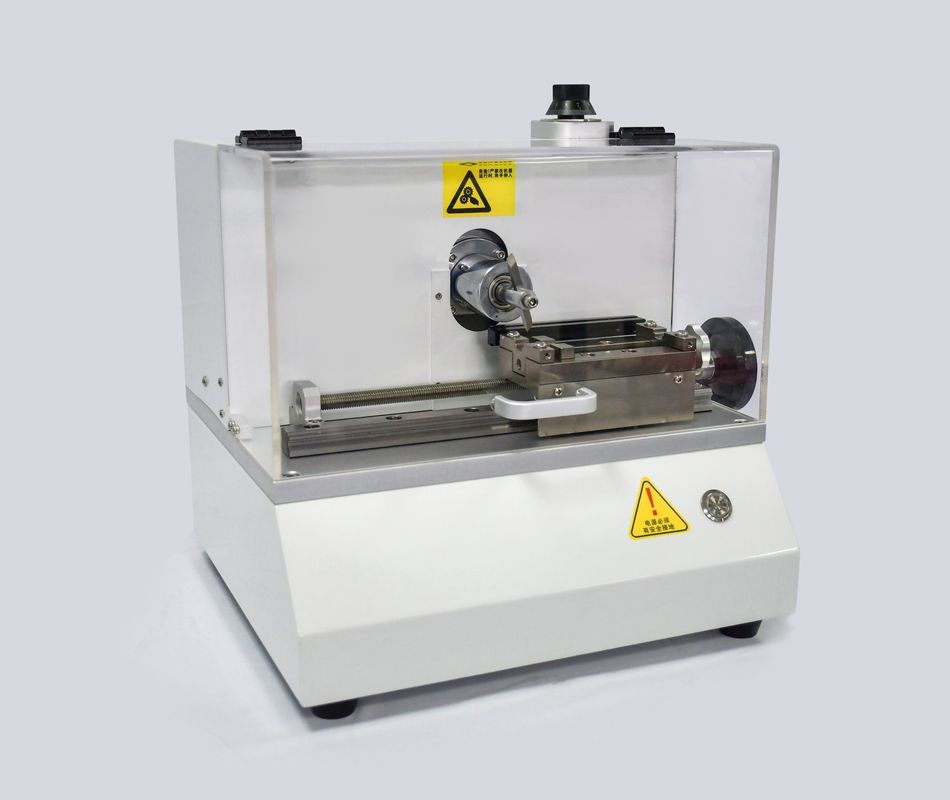

Electronic Sample Impact Notch Machine

Model: GC-QK-E

Product introduction

The plastic electric notch prototype machine(BST-QK-D) is a sample making equipment used in the impact toughness test of non-metallic materials by IZOD and simply supported beam impact testing machine. Laboratories of scientific research institutions, colleges and universities, non-metallic materials manufacturers and other units to make notched samples can use the impact notching machine.

Reference standard for tool notch of prototype

ISO180-2000 Plastics - Hard materials - Determination of IZOD impact strength
GB/T1843-2008 Rigid plastics - IZOD impact testing machine
JB/T8761-1998 Impact test machine for plastic IZOD
ASTM D256-2010 Test Method for Determining IZOD Pendulum Impact Strength of Plastics
ISO179-2000 Determination of Impact Strength of Plastic-Hard Material Simply Supported Beams
GB/T1043-2008 Impact Test Method for Rigid Plastic Simply Supported Beam
JB/T8762-1998 Plastic Simply Supported Beam Impact Testing Machine

Technical index

Table stroke: >160mm
Feed speed:30mm/min
Sample type: Type 1, Type 2, Type 3
Gap type: Type A, Type B (optional), Type C (optional)

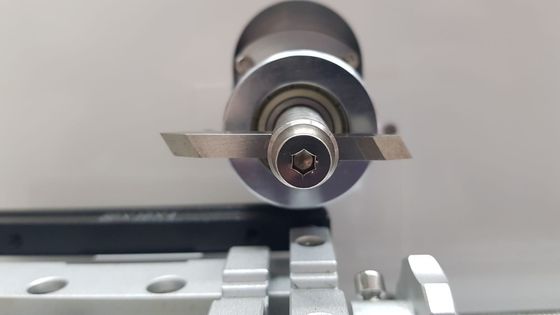

Tool parameters of plastic notch prototype machine

TypeA	45±1° r=0.25±0.025
TypeB	45±1 r=1.0±0.025
TypeC1	45±1 r=0.1±0.02
TypeC2	thickness 1=2±0.1 r<=0.1
TypeC3	thickness 2=0.8±0.1 r=0.2±0.05

Automatic Electric Charpy V Notch Cutter Machine Precision Sample Processing 0
