Plastic Granules Indentation HRC Hardness Testing Machine Tester Meter Analyzer

Name: Plastic Granules Indentation HRC Hardness Testing Machine Tester Meter Analyzer
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-HQY-96
Availability: InStock

Brand Name:	GC
Model Number:	GC-HQY-96
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-HQY-96

Transport Package:

Wooden Box Packaging

Specification:

60 Kg

Trademark:

Origin:

Guangdong

Supply Ability:

100psc/Month

Customization:

Available

After-sales Service:

Online Guidance

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Plastic Granules Hardness Testing Machine

HRC Hardness Testing Machine

Indentation hrc hardness tester

Product Description

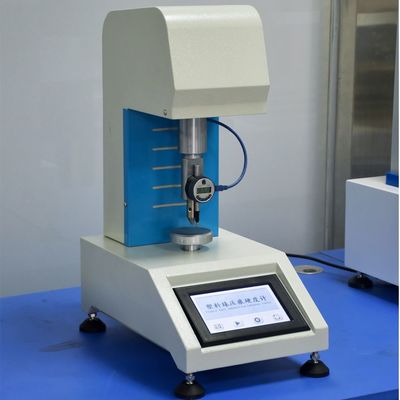

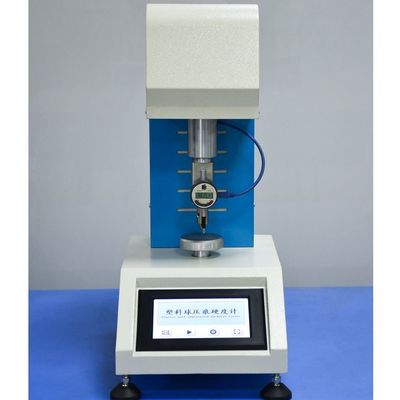

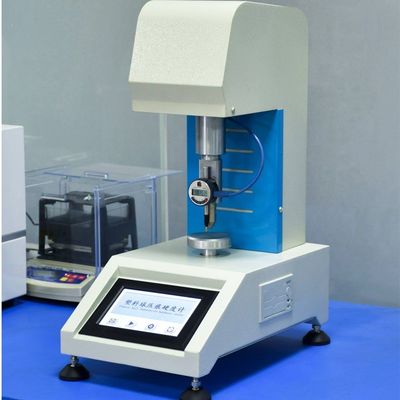

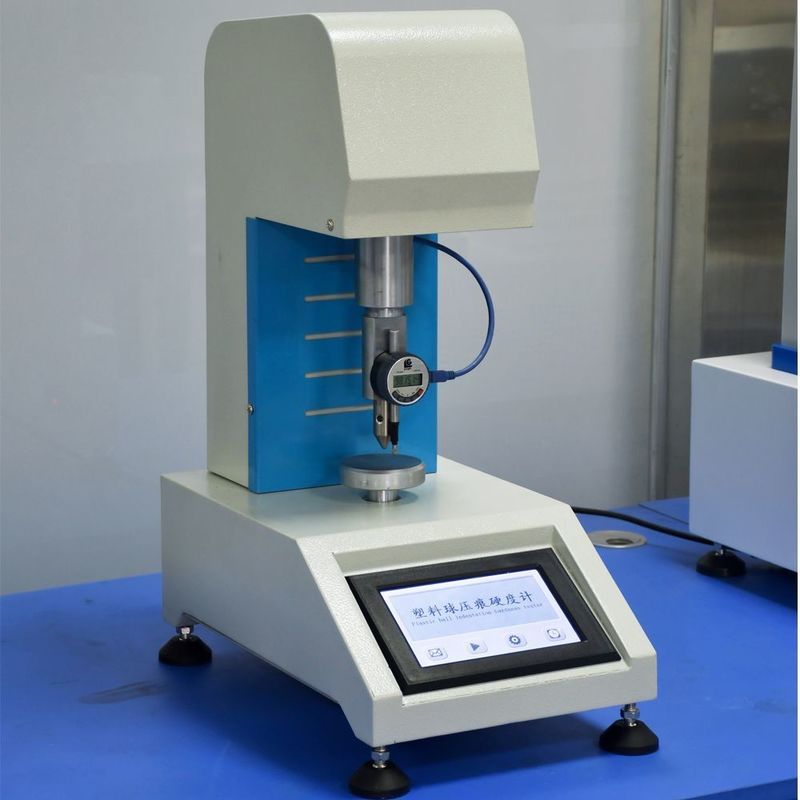

Plastic Ball Indentation Hardness Tester

Model: GC-HQY-96

A. Features:

1. This instrument adopts micro-processing control and integrated and digital measurement and control technology. Procedural setting according to the standard test procedure.

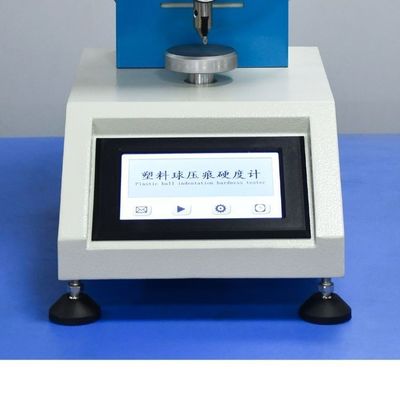

2. Chinese color crystal display, touch screen operation, easy to understand.

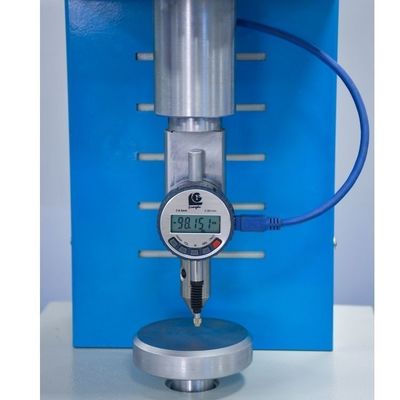

3. It adopts digital display dial indicator, high-precision force value measurement system, high measurement and control
precision and stable control.
4. Micro-printer for data printing.
5. The instrument is upgraded to touch screen control, which is novel, convenient and easy to operate, and more humanized.
6.Using a large-size 65535 true color screen, the visual effect is better, and the interface displays more information.
7. Improve the calculation function of the test results, keep decimals, and round the results to make the calculation results more accurate.
8.Various parameter settings can be set arbitrarily, which is more convenient for the testers to operate flexibly and meet more test requirements
9. Any step in the test can be skipped manually, which is convenient for testing

B. Hardness test method:

The plastic ball indentation hardness test is to use a steel ball with a specified diameter to press vertically into the surface
of the sample under the action of the test load, and keep it for a certain period.
Then read the indentation depth value. Get its hardness value by calculation or look-up table.

1. The thickness of the sample is not less than 4mm, the adjustable range of loading speed is within 2-7 seconds, usually 4-6 seconds, and the loading time is 30 seconds or 60 seconds; We should select the load size according to the expected hardness of the sample. If the hardness is higher, a larger load can be selected; otherwise, a smaller load should be selected. If unpredictable it must gradually upgrade The hardness of the sample from a small load, so as not to damage the steel ball indenter and the sample; They can carry the test out by selecting the load.

2. Ball indentation hardness means that a steel ball with a specified diameter is vertically pressed into the surface of the sample under the action of the test load and kept for a certain period. Finally, the average pressure per unit area is expressed in Kgf/mm2 or N/mm2.
Its expression is: H=0.21p/0.25πD (h-0.04) (kg/mm2)
P-load (kg)
h-indentation depth (mm)
D-Steel ball diameter (mm)
π - pi
Note: h=h1-h2
h1: Indentation depth of sample load (mm);
h2: The frame deformation of the instrument under the test load (mm)
3. The distance between the center of the measurement point and the edge of the sample is not less than 10mm, and the distance between the centers of two adjacent measurement points is not less than 10mm
