Keystroke Glow Wire Combustion Flame Test Chamber Workpieces Vertical Flammability Tester

Name: Keystroke Glow Wire Combustion Flame Test Chamber Workpieces Vertical Flammability Tester
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-ZRS-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-ZRS-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-ZRS-A

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Flame Retardant Test Chamber

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Manual Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Under

Timer:

0-99 Minutes

Temperature Tolerance Error:

500~750º

Glow Wire Moving Speed:

10mm/S-25mm/S

Glow Wire U-Shaped Head:

4mm Imported Nickel/Chromium (80/20) Wire

Transport Package:

Wooden Package

Specification:

110*65*125cm

Trademark:

Origin:

China

Package Size:

110.00cm * 65.00cm * 125.00cm

Package Gross Weight:

220.000kg

Customization:

Available

Warranty:

1 Year

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Keystroke Flame Test Chamber

Workpieces Flame Test Chamber

Keystroke vertical flammability tester

Product Description

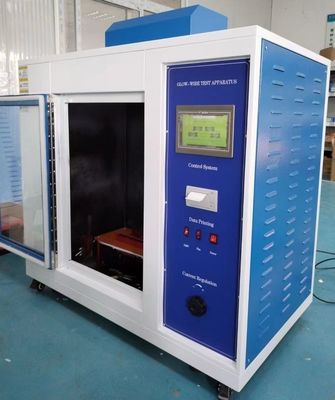

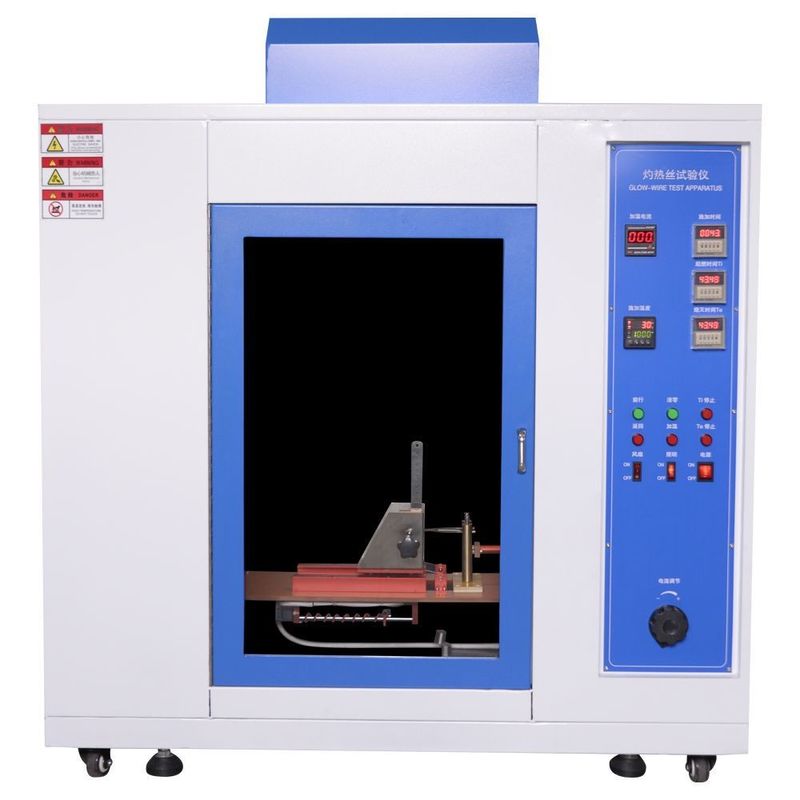

Keystroke Glow Wire Combusting Chamber for Workpieces

-The electronic glow wire flame test machine is a device used to test the flammability of materials. It is particularly useful in determining the fire resistance of electrical and electronic products.
-The electronic glow wire flame test machine is widely used in industries such as electronics, automotive, and aerospace to ensure compliance with safety standards and regulations. It helps manufacturers identify potential fire hazards and design products that are safe and reliable.
-The machine consists of a metal wire, known as the glow wire, which is heated to a specified temperature. The sample material is then brought into contact with the glow wire for a predetermined period of time. During this time, the behavior of the sample material is observed and recorded.

Tset Standrad:

IEC60695-2-10/11/12/13 Fire hazard test methods for electronic and electrical products
IEC60884-1-2002 Plug sockets for home and similar purposes
GB2099.1-2008 Plug sockets for home and similar purposes
IEC60335-1 Safety of household appliances and similar appliances
GB4706.1-2005 Safety of household appliances and similar appliances
VDE0620-2010 General requirements for household and similar plugs and sockets
GB/T5169.10-11-2006 Glow wire device and general test method

Product name	Glow Wire Test Apparatus
Control mode	Keystroke Printout
Outer box dimensions	11065125(cm)
Glow wire temperature	Adjust from room temperature to 1100°C
Glow wire moving speed	10mm/s-25mm/s
Box volume	≥0.5m³,With glass observation door
Fuel	Butane
Thermocouple	1.0mm nickel-chromium armored (K type) imported thermocouple
Temperature tolerance error	500~750ºC±5ºC;750~960ºC±10ºC
Glow wire U-shaped head	4mm imported nickel/chromium (80/20) wire
Glow wire moving speed	10mm/s-25mm/s

Keystroke Glow Wire Combustion Flame Test Chamber Workpieces Vertical Flammability Tester 2
