ODM Plastics UL94 Flame Test Chamber Equipment For Flammability Testing

Name: ODM Plastics UL94 Flame Test Chamber Equipment For Flammability Testing
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-UL-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-UL-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-UL-A

Specification:

110*650*125(cm)

Trademark:

Origin:

Guangdong

Supply Ability:

100PCS/Month

Customization:

Available

Warranty:

1 Year

Transport Package:

Wooden Box Packaging

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

ODM Flame Test Chamber

plastics Flame Test Chamber

plastics flammability test equipment

Product Description

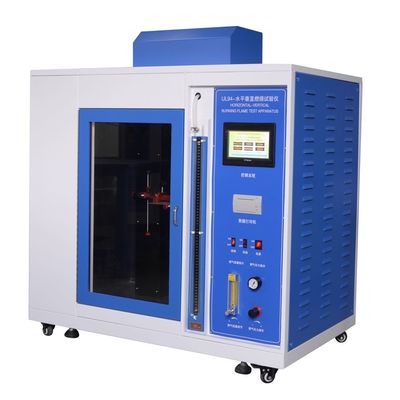

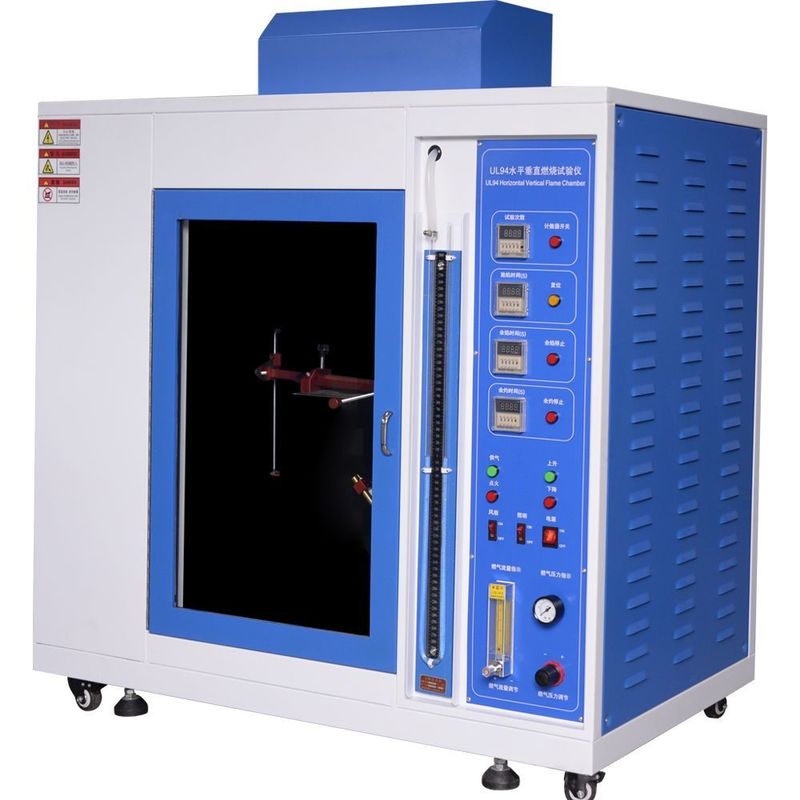

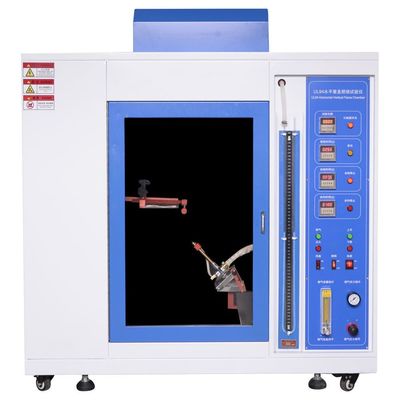

UL94 Horizontal Vertical Flame Retardant Test Chamber

Model: GC-UL-A

Product Introduction

This testing machine is suitable for detecting and evaluating the combustion characteristics of plastic materials, and performing horizontal and vertical flammability tests on the plastic parts of equipment and appliances. It is equipped with a gas flow meter to adjust the flame size and is driven by a motor. The operation is simple and safe. This instrument can evaluate the flammability of materials or foam plastics such as: V-0, V-1, V-2, HB, 5VA, 5VB, VTM-0, VTM-2.

Test Standards

1. UL94 Fire testing
2. GBT2408-2008 The horizontal and vertical methods for measuring the combustion properties of plastics
3. IEC60695-11-10 Combustion fire test

Specifications

Model	GC-UL-A
Control mode	Keystroke control
Outer box dimensions	110650125(cm)
Box volume	≥0.5m³,With glass observation door
Flame time	0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
Residual flame time	0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
The rest of the burining time	0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
Test gas	More than 98% methane/37MJ/m³ natural gas (coal gas is also available)
Burner size parameters	Adopt imported lamp, the inner diameter of spray can is 9.5±0.3mm, and the effective length of spray tube is 100±10mm
Flame height	It can be adjusted from 20mm to 175mm as required by standard
Flowmeter	105ml/min
Gas leak detection	Gas alarm device (optional)
Power	AC220V, 50Hz
