Automatic Combustion Testing Equipment IEC60332 Flammability Test Chamber

Name: Automatic Combustion Testing Equipment IEC60332 Flammability Test Chamber
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-DRS-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-DRS-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Outer Dimension:

600mm X 600mm X 1200mm

Power Supply:

220V/50Hz

Safety Features:

Over Temperature Protection, Over Current Protection

Thermocouple:

K Type

Material:

Stainless Steel

Inner Chamber Size:

300mm X 300mm X 300mm

Heating Rate:

0-20°C/min

Temperature Control:

PID Control

Temperature Range:

Room Temperature To 1200°C

Heating Method:

Electric Heating

Temperature Accuracy:

±1°C

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Flammability combustion testing equipment

IEC60332 combustion testing equipment

IEC60332 flammability test chamber

Product Description

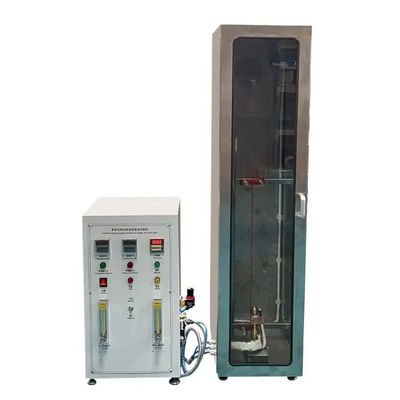

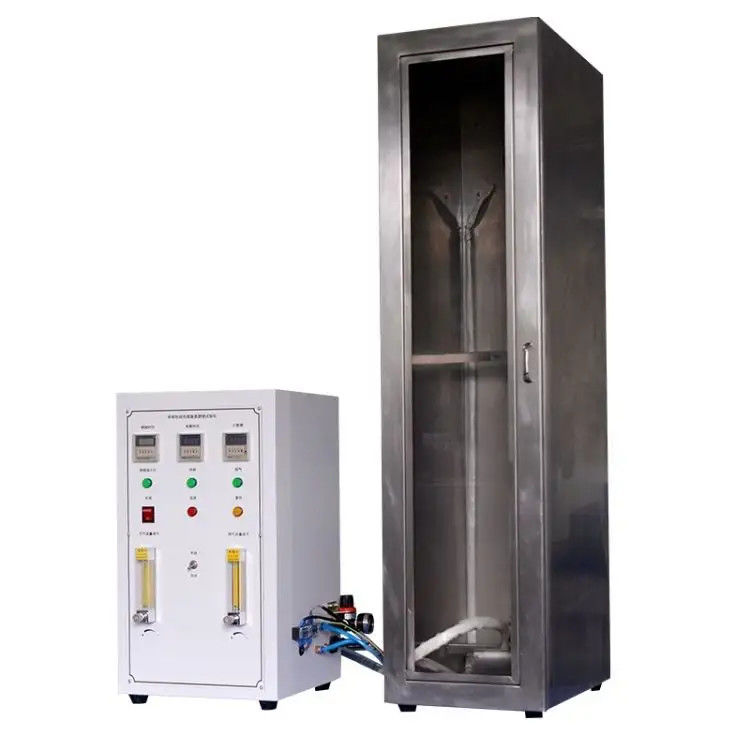

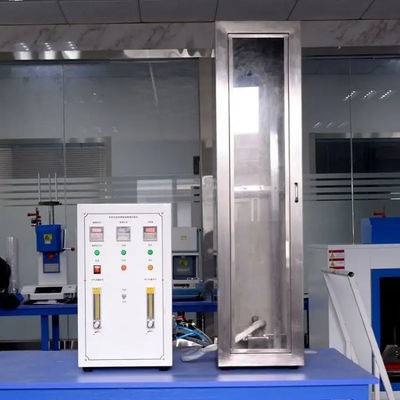

Vertical Burning Testing Machine for Single Wire and Cable

Model: GC-DRS-A

1. Product Introduction
BST-DRS-A single wire and cable vertical burning tester is suitable for measuring the vertical burning non-spreading performance of single plastic wire, control wire, cross-linked, elevator, ship, mining cable, etc. It can also be used for vertical burning test of high self-extinguishing low-smoke halogen-free flame-retardant olefin irradiated insulating material.

2. Test Standards
GB/T 18380.11-2008 Combustion test of cables and fiber optic cables in flame conditions Part XI
GB/T 18380.12-2008 Combustion test of cables and fiber optic cables in flame conditions Part XII
IEC60332-1-2:2004 Optical cable burning test
IEC60332-1-3:2004 Insulated wire dripping test
IEC60332-2-1:2004 Test of cables and optical cables under fire conditions
IEC60332-2-2:2004 Cable and optical cable test in fire environment
En50265-1 VDE low smoke halogen-free flame retardant test standard
GB/T5169.14-2007 Fire hazard test of electric and electronic products Part 14
IEC60695-11-2:2003 Fire Hazard Test - Part 12

3. Specifications

Product Name	Vertical Burning Testing Machine for Single Wire and Cable
Burning box	3012045(WHD)
Burning blowtorch	1KW combustion nozzle, blue flame height is 50 to 60mm, the total height of the flame is 170 to 190mm
Gas	Using high-purity 95% technical grade propane gas
Sample length	600±25mm
Sample bracket	The distance between the lower edge of the upper bracket and the upper edge of the lower bracket of the two horizontal brackets is 550mm
Fire time	0.1-999.9s continuous setting

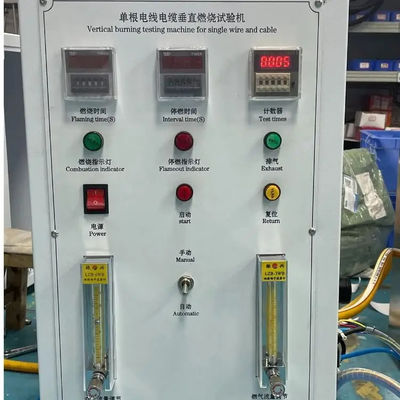

Control function	Choose manually or automatically
Gas flow range	100-1000ml/min
Air flow range	1-10L/min
Pressure gauge	0~0.75kpa (adjustable)
Ignition method	High-voltage automatic ignition
Power	AC220V, 50Hz

Automatic Combustion Testing Equipment IEC60332 Flammability Test Chamber 0

Automatic Combustion Testing Equipment IEC60332 Flammability Test Chamber 1

Automatic Combustion Testing Equipment IEC60332 Flammability Test Chamber 6

Automatic Combustion Testing Equipment IEC60332 Flammability Test Chamber 7

Automatic Combustion Testing Equipment IEC60332 Flammability Test Chamber 9
