Flame Chamber Needle flame testing machine

Name: Flame Chamber Needle flame testing machine
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-ZY-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-ZY-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Heating Element:

Electric Resistance Wire

Material:

Stainless Steel

Safety Features:

Overheat Protection, Door Interlock

Dimensions:

50cm X 50cm X 50cm

Temperature Range:

0-1000°C

Door Type:

Single Door

Power Supply:

220V, 50Hz

Warranty:

1 Year

Application:

Flame Test For Materials

Temperature Accuracy:

±1°C

Certifications:

CE, ISO9001

Control System:

PID Temperature Controller

Weight:

20kg

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Needle Flame leakage checking machine

UL1694 leakage checking machine

UL1694 Needle Flame Test Apparatus

Product Description

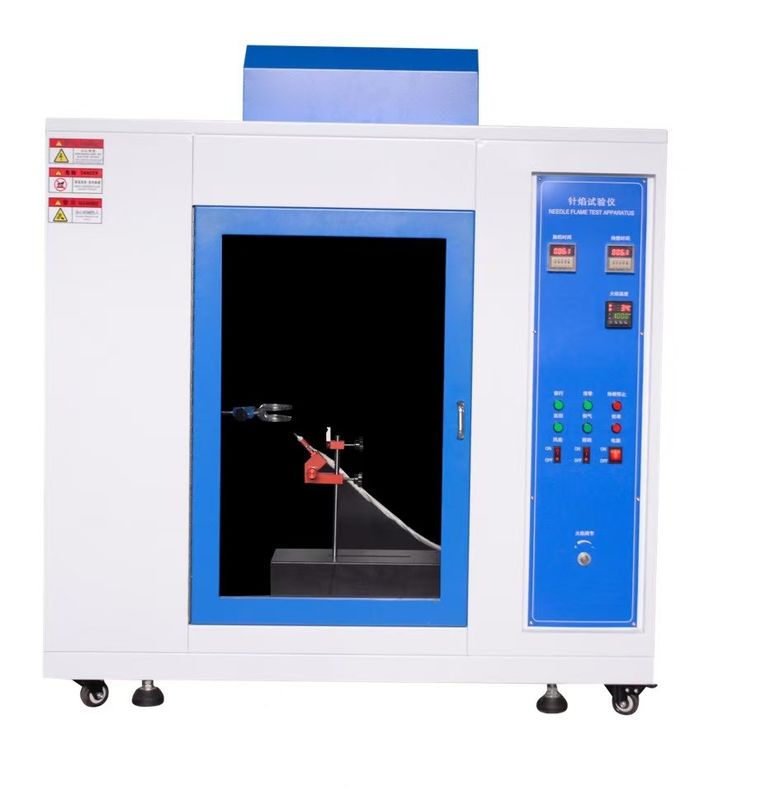

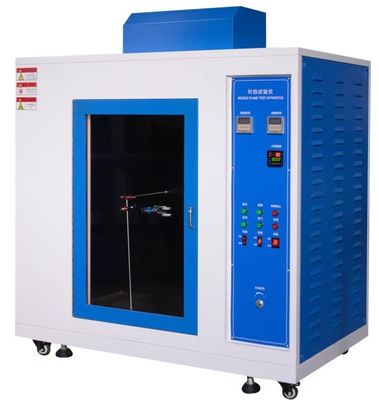

Needle Flame Test Apparatus

Model: GC-ZY-A

A. Product Introduction

The needle flame test machine is suitable for simulating small flames generated inside the product under fault conditions in electronic and electrical products, and uses simulation technology to evaluate the fire hazard. It is suitable for electronic and electrical products, components and parts of household appliances, such as: wiring boards, centrifugal switches, rice cooker sockets

B. Test Standards

IEC884-1 Standard electrical accessories power load cabinet GB2099.1-2008 Plug sockets for home and similar purposes.

Part 1:General requirements IEC335-91 Safety of household appliances and similar appliances.

Part 1:General requirements GB4706.1-2005 Safety of household appliances and similar appliances.

Part 1:General requirements GB5169.5-2008 Fire hazard test methods for electronic and electrical products-Test flame-Needle flame test method UL1694 Burning test method

Product Name	Needle Flame Test Apparatus
Control mode	Keystroke control
Outer box dimensions	11065125(cm)
Box volume	≥0.5m³,With glass observation door
Timer	0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
Fuel	Butane
Burner specification	The length is more than 35mm, the inner diameter is 0.5mm±0.1mm, and the outer diameter does not exceed 0.9mm
Flame height	12mm±1mm adjustable
Flame humidity	The time from 100℃ to 700℃ is within 23.5±1s
Gas leak detection	Gas alarm device (optional)
Power	AC220V, 50Hz
