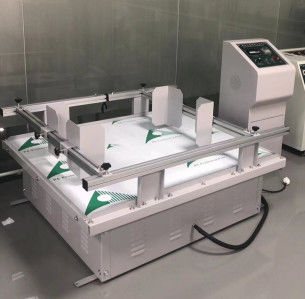

Simulated Transportation Vibration Test Bench for Packaging Material test

A. Introduction

The simulated transportation vibration table is also called a " vibration table ". It simulates the damage caused to products by bumps during transportation to identify whether the product can withstand environmental vibration. It is suitable for various industries such as electronics, electromechanical, optoelectronics, automobiles, motorcycles, toys, etc. Research, development, quality control and manufacturing. It is a rare testing machine for you to improve product quality and reliability.

The simulated transportation vibration test bench is suitable for vibration testing of toys, electronics, furniture, gifts, ceramics, communications, equipment, computers and automobile parts, etc., to observe their transportation resistance or durability uniformity.

This machine is modified based on similar equipment in Europe and the United States, with rotary vibration, conforms to European and American transportation specifications, and complies with EN71 ANSI, UL, ASTM, ISTA and other test standards.

B. Purpose

This machine performs a series of controllable vibration simulations in experiments to test whether the product can withstand the test of transportation or vibration environmental factors during its life cycle. It can also determine the requirements for product design and function. Statistics show that improving the design level by 3% will increase recycling by 20% and reduce unnecessary expenditures by 18%.

1. The strength of the structure.

2. Loosening of the bond.

3. Protects materials from wear and tear.

4. Damage to components.

5. Poor contact of electronic components.

6. The circuit is short-circuited and intermittent.

7. The standard value of each piece is offset.

8. The simulated transportation vibration table screens out defective parts in advance.

9. Find the resonance relationship between parts, structure, packaging and transportation process, and improve its resonance factors.

The requirements of the simulated transportation vibration test bench are to confirm the reliability of the product, screen out defective products in advance before leaving the factory, and evaluate the failure analysis of the defective products in order to become a high-level, high-reliability product.

C. Features

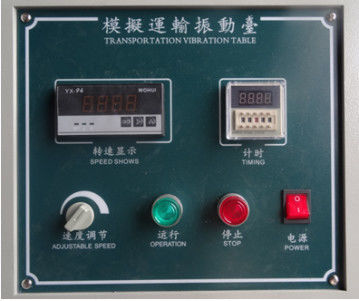

1. A digital instrument is used to display the vibration speed, and the speed can be adjusted according to needs;

2. Synchronous silent belt drive has low noise;

3. The sample clamping adopts guide rail type, which is easy and safe to operate;

4. The base of the machine is made of heavy-duty channel steel with vibration-absorbing rubber pads, which is easy to install and runs smoothly (if the test speed requires high-speed operation for a long time, it is recommended to install anchor screws to fix it);

AC variable frequency motor has adjustable speed, stable operation and strong load capacity.

D. Main Parameters

1. load : 0-100kg

2. Frequency range: 100～300rpm

3. Amplitude range: 1 inch (25.4mm)

4. Vibration mode: rotary type (commonly known as horse racing type)

5. Simulated vehicle speed: 25～40km/h

6. Work surface size: 1000 * 1200mm

7. Control motor: speed regulating motor

8. Power supply voltage: AC 22 0V 50Hz

9. Machine weight: about 320kg
