Single Wire Cable Vertical Burning Flame Test Chamber Flammability Machine

Name: Single Wire Cable Vertical Burning Flame Test Chamber Flammability Machine
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-DRS-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-DRS-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Sample Holder:

Quartz Tube

Dimensions:

1000mm X 1000mm X 1000mm

Temperature Range:

Room Temperature To 1200°C

Weight:

100kg

Sample Size:

100mm X 100mm

Certifications:

CE, ISO

Ignition Source:

Piezoelectric Igniter

Flame Detection:

Thermocouple

Power Supply:

220V, 50Hz

Warranty:

1 Year

Safety Features:

Over-temperature Protection, Gas Leak Detection

Gas Supply:

Propane, Butane, Or Natural Gas

Heating Element:

Electric Resistance Wire

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Wire Cable Flame Test Chamber

Vertical Flame Test Chamber

Vertical flammability testing machine

Product Description

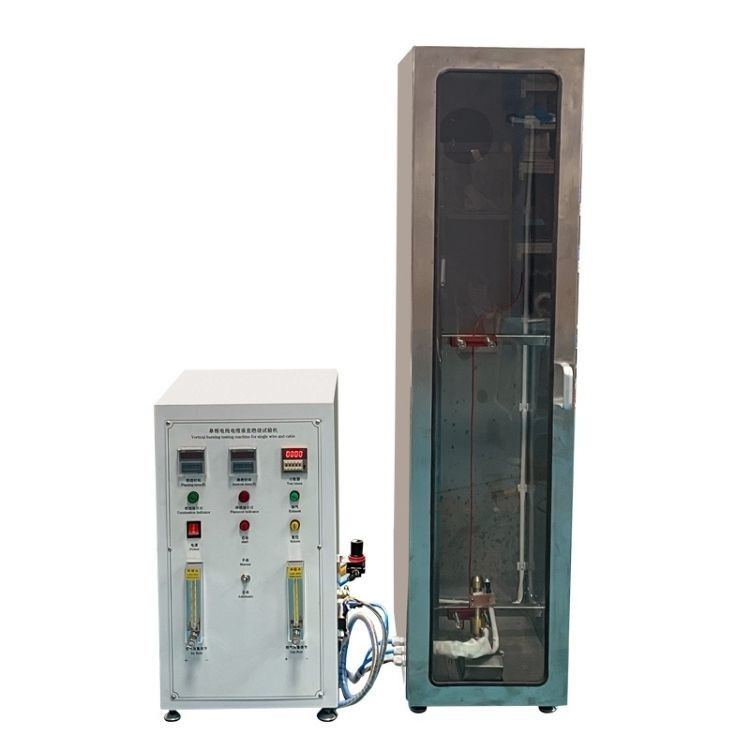

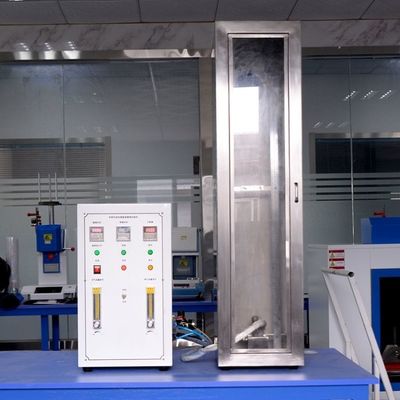

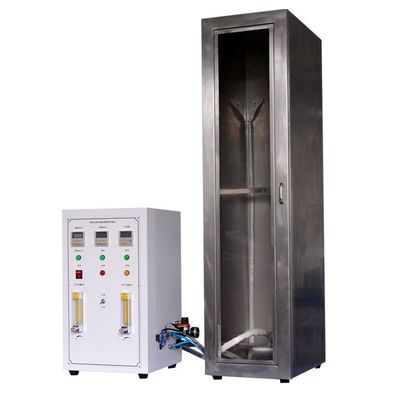

Single Wire and Cable Vertical Burning Testing Machine

Product description:

GC-DRS-A single wire and cable vertical burning tester is suitable for measuring the vertical burning non-spreading performance of single plastic wire, control wire, cross-linked, elevator, ship, mining cable, etc. It can also be used for vertical burning test of high self-extinguishing low-smoke halogen-free flame-retardant olefin irradiated insulating material.

Test Standards

GB/T 18380.11-2008 Combustion test of cables and fiber optic cables in flame conditions Part XI

GB/T 18380.12-2008 Combustion test of cables and fiber optic cables in flame conditions Part XII

IEC60332-1-2:2004 Optical cable burning test

IEC60332-1-3:2004 Insulated wire dripping test

IEC60332-2-1:2004 Test of cables and optical cables under fire conditions

IEC60332-2-2:2004 Cable and optical cable test in fire environment

En50265-1 VDE low smoke halogen-free flame retardant test standard

GB/T5169.14-2007 Fire hazard test of electric and electronic products Part 14

IEC60695-11-2:2003 Fire Hazard Test - Part 12

Technical Parameter

Model	GC-DRS-A
Burning box	3012045(WHD)
Burning blowtorch	1KW combustion nozzle, blue flame height is 50 to 60mm, the total height of the flame is 170 to 190mm
Gas	Using high-purity 95% technical grade propane gas
Sample length	600±25mm
Sample bracket	The distance between the lower edge of the upper bracket and the upper edge of the lower bracket of the two horizontal brackets is 550mm
Fire time	0.1-999.9s continuous setting

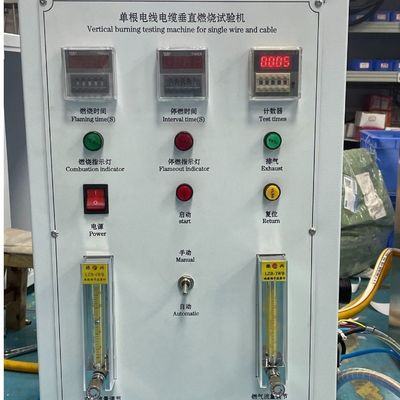

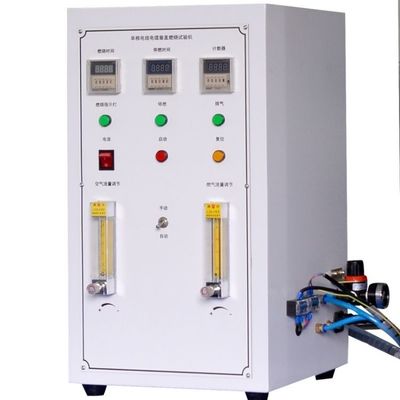

Control function	Choose manually or automatically
Gas flow range	100-1000ml/min
Air flow range	1-10L/min
Pressure gauge	0~0.75kpa (adjustable)
Ignition method	High-voltage automatic ignition
Power	AC220V, 50Hz

Introduction of Guangdong Guangce Instrument Technology Co.,Ltd
