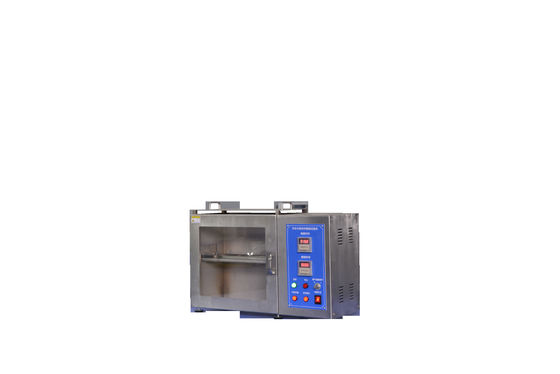

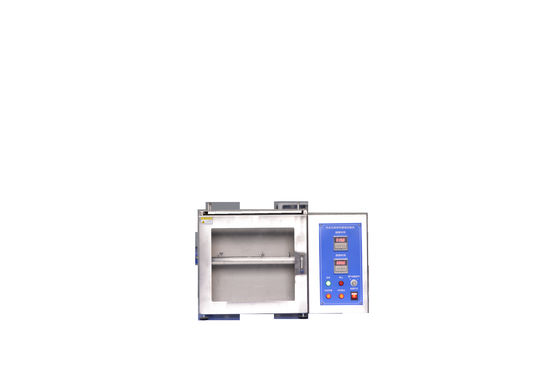

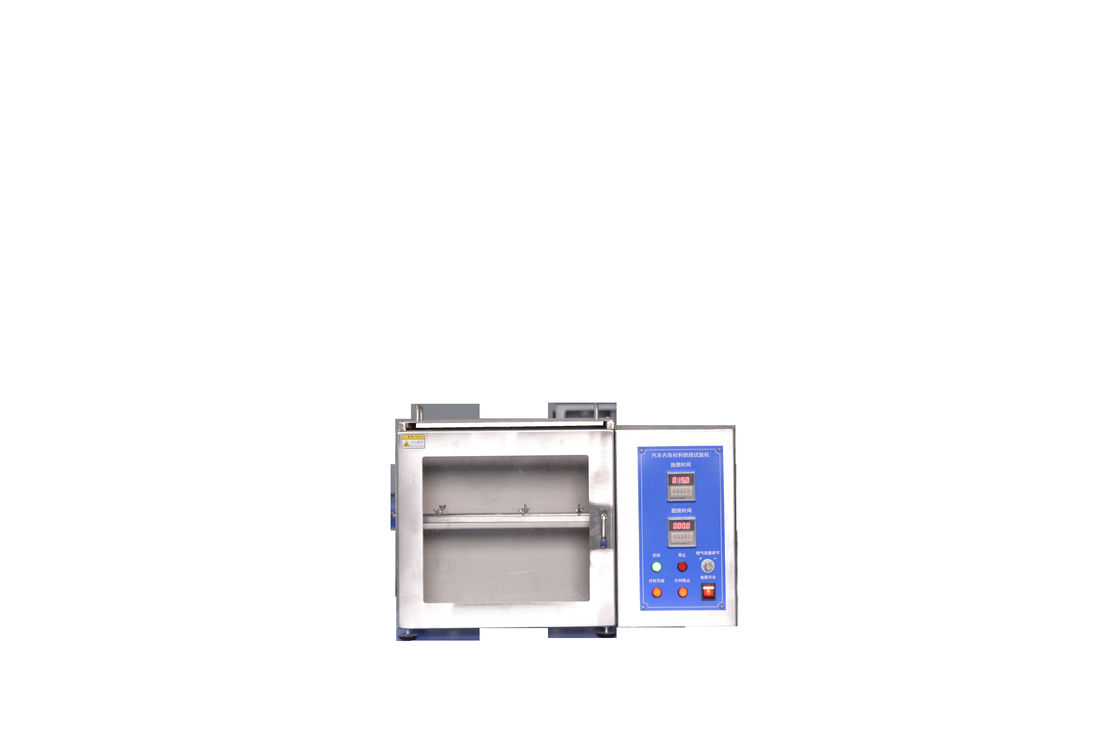

Automobile Interior Combustion Electronic Test Instrument Horizontal Flammability Tester

Name: Automobile Interior Combustion Electronic Test Instrument Horizontal Flammability Tester
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-NS-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-NS-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Flame Height:

10-100mm

Temperature Range:

Room Temperature To 1000°C

Power Supply:

220V/50Hz

Chamber Size:

300mm X 300mm X 300mm

Timer:

0-99 Minutes

Ignition Source:

Propane Burner

Safety Features:

Over-temperature Protection, Gas Leakage Alarm

Heating Element:

Kanthal A1 Wire

Chamber Material:

Stainless Steel

Gas Flow Rate:

0-10L/min

Sample Size:

50mm X 50mm

Certifications:

CE, ISO 9001:2015

Temperature Control Accuracy:

±1°C

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Automobile electronic test instrument

Horizontal electronic test instrument

Automobile horizontal flammability tester

Product Description

Automobile Interior Combustion Test Machine

Product description:

The GC-NS-A combustion tester is suitable for the horizontal combustion characteristics of automotive interior materials, mainly refers to the automotive products used in the interior modification of the car, involving all aspects of the interior of the car, such as car sunscreen film, car handshake cover, car floor mat, Car anti-skid pads, cushions, etc.

Test Standards
GB8410-2006 Combustion characteristics of automotive interior materials
ASTM D5132-2004 Standard Test Method for the Horizontal Burning Rate of Polymeric Materials Used in the Passenger Compartment of Motor Vehicles

Technical Parameter

Model	GC-NS-A
Box size	602240(cm)
Flame time	0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
Residual flame time	0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
Burning angle	90°
Burner size parameters	The inner diameter of the nozzle is 9.5mm, the effective length of the nozzle is 100mm, and there are air-conditioning holes
Flame height	It can be adjusted from 20mm to 100mm as required by standard
Thermometer	150℃,accuracy: 1℃
Steel ruler	length: 500mm, accuracy: 1mm
Burning gas	High purity liquefied gas

Introduction of Guangdong Guangce Instrument Technology Co.,Ltd
