Leakage Tracing Flame Test Chamber Ul 94 Test Equipment For Electrical Products

Name: Leakage Tracing Flame Test Chamber Ul 94 Test Equipment For Electrical Products
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: LD-A
Availability: InStock

Brand Name:	GC
Model Number:	LD-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Chamber Size:

300mm X 300mm X 300mm

Temperature Accuracy:

±1°C

Power Supply:

220V/50Hz

Chamber Material:

Stainless Steel

Product Type:

Laboratory Equipment

Flame Height:

Adjustable

Certifications:

CE, ISO9001

Temperature Control:

PID Digital Temperature Controller

Temperature Range:

Room Temperature To 1000°C

Air Pressure:

0.2-0.3MPa

Gas Flow Rate:

0-10L/min

Flame Source:

Propane Gas

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Leakage Tracing Flame Test Chamber

Ul 94 Flame Test Chamber

electrical ul 94 test equipment

Product Description

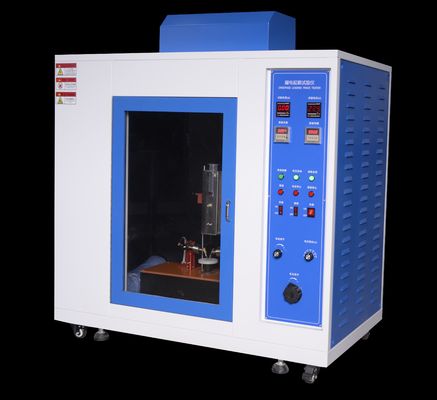

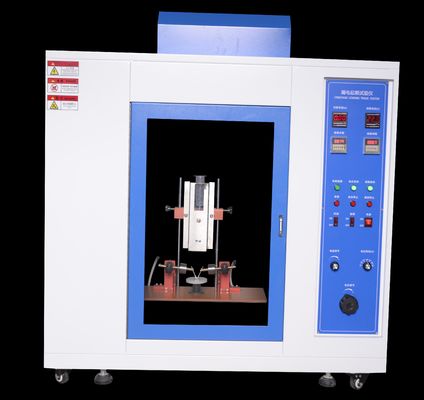

Leakage Tracing Test Machine

Product description:

Leakage tracing testing machine is suitable for electrical products affected by moisture and impurities, and different polarity between live parts or charged parts and ground metal parts may cause leakage on the insulation, resulting in an arc to the electrical appliances caused by a short circuit or due to discharge caused material erosion, or even ignited leading to fire. It is suitable for electrical and electronic products, solid electrical insulation materials for household appliances and their products, such as relay sockets, transfer switch covers, contactor bodies, etc.

Test standards

EN60335-1-2012 General requirements for the safety of household and similar electronic appliances

GB4706.1-2008 Common requirements for the first part of a plug socket for home and similar purposes

IEC60884-1-2002 Common requirements for the first part of a plug socket for home and similar purposes

GB2099.1-2008 Common requirements for the first part of a plug socket for home and similar purposes

GB/T4207-2012 Measuring method of tracking insulation material

IEC60112-2003 Method for measuring tracking resistance index and comparative tracking index of solid insulating materials

Machine Specifications

Model	GC-LD-A	GC-LD-C
Control mode	Keystroke control	Touch screen control + print output
Outer box dimensions	11065125(cm)	11565125(cm)
Box volume	≥0.5m³,With glass observation door
Timer	0-99 minutes and 99 seconds can be set, accuracy ±0.1 second
Ammeter	Test current 0-200A with an accuracy of ±0.1A
Electrical load voltage	The test voltage is adjustable from 100 to 600V
Electrode	Platinum electrode with rectangular cross-section (5±0.1) mm (2±0.1) mm with an edge of 30 °± 2 ° slope
Two levels of force on the specimen	1.0N±0.05N
The electrical spacing	4.0mm±0.1mm
Electrod angle	60°±5°
Drop height	35mm±5mm(adjustable)
Drip interval	30S±5S(adjustable)
Power	AC220V, 50Hz
