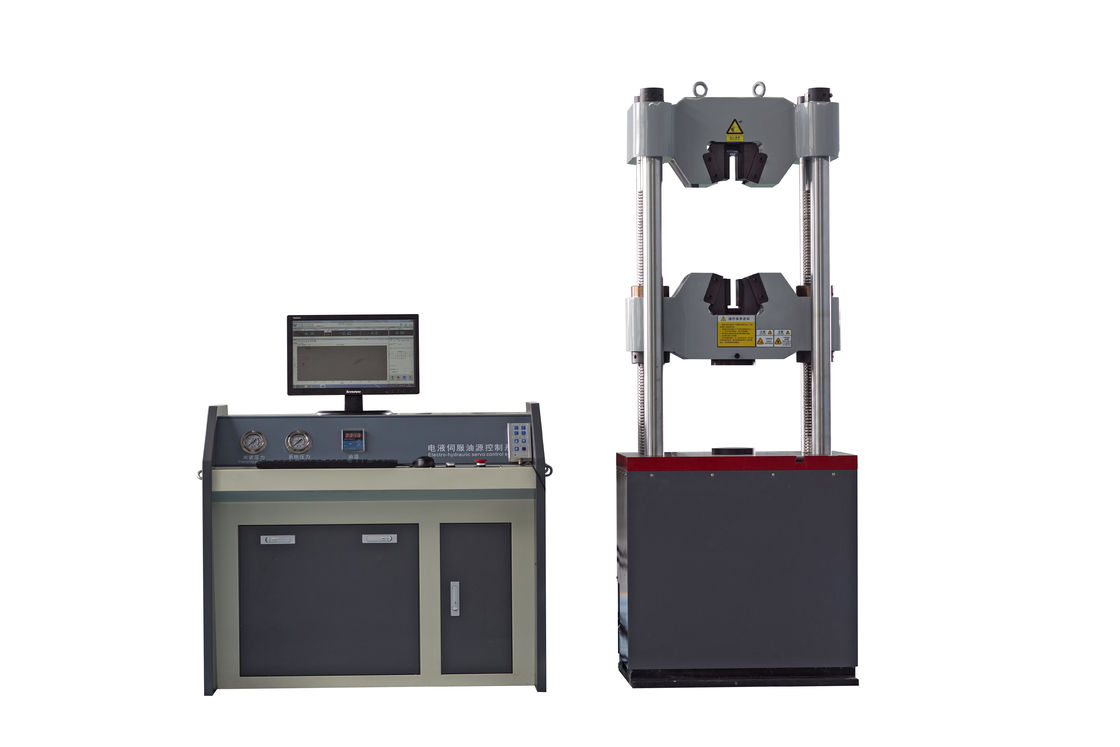

Electro UTM Hydraulic Universal Testing Machine Microcomputer Controlled

Name: Electro UTM Hydraulic Universal Testing Machine Microcomputer Controlled
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-WAW-2000D
Availability: InStock

Brand Name:	GC
Model Number:	GC-WAW-2000D
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Load Range:

0.4%～100%F·S

Equipment Weight:

140kg

Tensile Test Space:

550mm

Structure:

Single Column Double Spaces

Capacity:

100kn

Customized:

OEM;ODM

Resolution:

1/250000

Stroke Resolution:

0.001mm

Force Decomposition:

1/200 000

Load Accuracy:

±0.5%

Resolution Ratio:

0.001lbf/in²

Test Speed:

0~1000mm/min

Transmission Rod:

High Accuracy Ball Screw

Dimensions:

1200mm X 800mm X 2000mm

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

Electro hydraulic universal testing machine

Microcomputer hydraulic universal testing machine

Electro utm testing machine

Product Description

Electro-Hydraulic Servo HydraulicUniversal Testing Machine

Product description:

The GC-WAW-2000D microcomputer-controlled electro-hydraulic servo hydraulic universal testing machine adopts a cylinder-mounted mainframe structure, which is mainly used to do the task of mechanical properties test for tensile, compression, bending, etc. of metal materials, non-metal materials, product parts, components, structural parts, standard parts.

This series of testing machines can also be used for material tensile, compression and bending tests in this environment if the environmental device is added. For example: high temperature tensile, low temperature stretching, compression and other tests.

Product manufacturing and inspection standards:

1. GB2611 "General technical requirements for testing machines"

2. JJG139 "Tie, Pressure and Universal Testing Machine"

Applicable test method standard:

The test operation and data processing meet the requirements of GB/T228 "Metal Material Tensile Test Method", GB/T7314 "Metal Material Room Temperature Compression Test Method", GB/T232 "Metal Material Bending Test Method" and other hundreds of standard requirements. Data processing methods that meet different standards can be configured according to customer requirements.

Technical parameters:

Serial number	project name	parameter
1	Maximum test force kN	2000
2	Test force indication relative error	±1% of the indicated value
3	Test force measurement range	2% to 100% of the maximum test force
4	Constant velocity stress control range (N/mm 2 ·S -1 )	2~60
5	Constant velocity control range	0.00025/s~0.0025/s
6	Constant velocity displacement control range (mm/min)	0.5~50
7	Clamping method	Hydraulic clamping
8	Round specimen clamping diameter range mm	Φ1 5 ～Φ 70
9	Flat specimen clamping thickness range mm	0~40
10	Flat specimen clamping width mm	80
11	Maximum tensile test space mm	900
12	Maximum compression test space mm	700
13	Control cabinet dimensions mm	1100620850
14	Mainframe dimensions mm	1 30 0* 90 0*35 00
15	Motor power kW	4
16	Host quality kg	7500
17	Column clearance (mm)	6 00
18	Upper and lower platen size mm	200*200
19	Curved stick spacing mm	600
20	Bending rod width mm	150
21	Allowable bending mm	100
22	Maximum piston stroke mm	200
23	Piston maximum moving speed mm/min	About 65
24	Test space adjustment speed mm/min	About 150
