150kgf Digital Rockwell Hardness Testing Machine Manual tester

Name: 150kgf Digital Rockwell Hardness Testing Machine Manual tester
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-HRS150
Availability: InStock

Brand Name:	GC
Model Number:	GC-HRS150
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Dimensions:

600mm X 250mm X 800mm

Minimum Measuring Unit:

0.00125mm

Measuring Device Type:

D, DL, DC, D+15 Or C

Power:

AC220V,50/60Hz

Mobility:

Desktop

Usage:

Hardness Tester

Test Resolution:

0.01µm

Force Error:

＜0.5%

Dwell Time:

1~99S, Each Step Is 1 Second

Measuring Range:

20-88HRA,20-100HRB,20-70HRC

Operating Conditions:

Temperature:0~45ºC Humidity:<90%RH

Lcd:

128×64 Matrix With Back-light

Hardness Value Range:

HRA:20~88 HRB:20~100 HRC:20~70

Special Application:

General Test

Ambient Temperature:

0～40℃

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

150kgf Hardness Testing Machine

Rockwell Hardness Testing Machine

150kgf digital hardness tester

Product Description

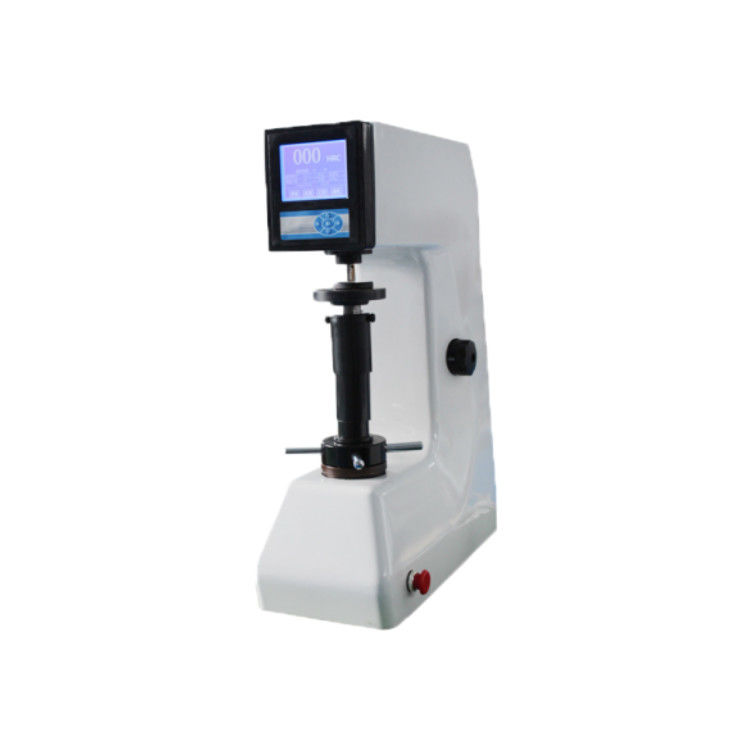

Manual Superficial Digital Touch Screen Rockwell Hardness Tester

Model: XHRS-150

1. Product Information

XHRS-150 Digital Display Plastic Rockwell Hardness Tester is a high-tech product with high precision and stable performance. The interface is menu-based, and the operation is simple, intuitive and convenient. The measuring device adopts grating displacement sensor and ARM32-bit chip control system. It is directly displayed on the screen, which is a mechanical and electrical integration hardness testing instrument.

2. Products Advantages

a. Adopt grating displacement sensor measurement device: display the results through the LCD screen, and can display and set the test scale, test force, indenter type, dwell time, conversion unit, etc.

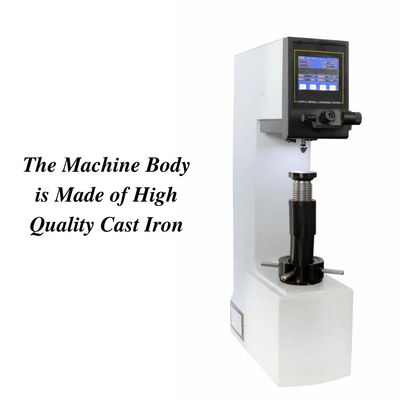

b. The fuselage is made of high-quality cast iron by one-time casting, and is treated with car paint, so the appearance is round and beautiful.

c. Test force: 588.4, 980.7, 1471N (60, 100, 150kgf) three kinds of test force can be changed at will.

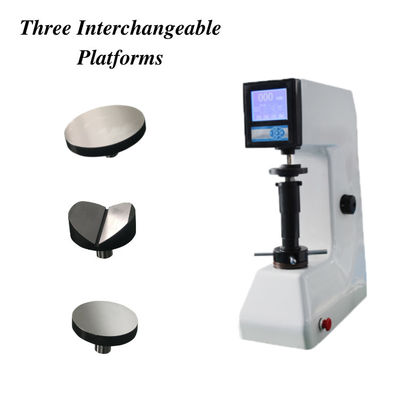

d. Three kinds of interchangeable worktables: equipped with large flat, V-shaped and small flat worktables, which are convenient for measuring the hardness of different workpieces.

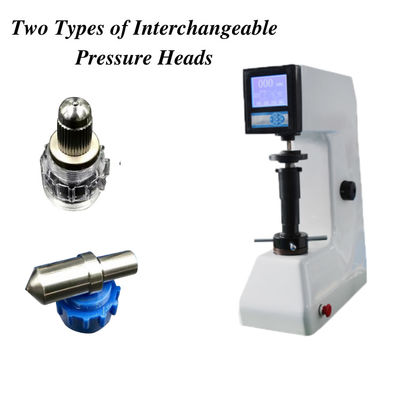

e. Two kinds of interchangeable indenters: equipped with diamond indenter and 1.5875mm indenter, can measure different hardness

3. Specifications

Test Force	60,100,150kgf
Measuring Range	70-100HREW,50-115HRLW,50-115HRMW,50-115HRRW
Maximum Height	200mm
The distance from the center of the indenter to the machine wall	130mm
Hardness Resolution	0.1HR
Dimensions	510290730mm
Weight	80kg
Power Supply	AC220V,50Hz

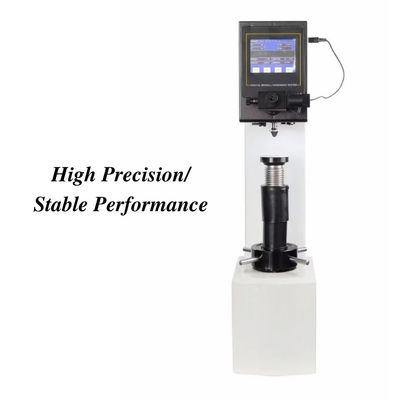

150kgf Digital Rockwell Hardness Testing Machine Manual tester 0

150kgf Digital Rockwell Hardness Testing Machine Manual tester 1

150kgf Digital Rockwell Hardness Testing Machine Manual tester 2

Packaging & Shipping

150kgf Digital Rockwell Hardness Testing Machine Manual tester 3
