UL 1581 Wire And Cable Flame Test Chamber Leakage Test Machine

Name: UL 1581 Wire And Cable Flame Test Chamber Leakage Test Machine
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-UL-1581
Availability: InStock

Brand Name:	GC
Model Number:	GC-UL-1581
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Safety Features:

Over Temperature Protection, Emergency Stop Button

Product Type:

Laboratory Equipment

Control System:

PID Temperature Controller

Chamber Size:

300mm X 300mm X 300mm

Power Supply:

220V, 50Hz

Temperature Range:

Room Temperature To 1200°C

Warranty:

1 Year

Application:

Flame Testing

Heating Method:

Electric Heating

Certifications:

CE, ISO

Chamber Material:

Stainless Steel

Display:

Digital Display

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

UL 1581 Flame Test Chamber

Leakage Flame Test Chamber

Flame leakage test machine

Product Description

UL1581 High Accuracy Stable Reliable Wire and Cable Burning Test Machine

-The UL1581 Wire and Cable Burning Test Machine is a specialized equipment used to assess the flammability characteristics of wires and cables. This machine is designed to perform the burning test as per the UL1581 standard, which is a widely recognized test method for evaluating the fire resistance of wires and cables.
-The machine consists of a test chamber with controlled temperature and airflow, a sample holder, and an ignition source.During the test, the wire or cable sample is securely mounted in the sample holder and exposed to a controlled flame generated by the ignition source. The temperature and airflow conditions within the test chamber can be adjusted to simulate various real-life scenarios.

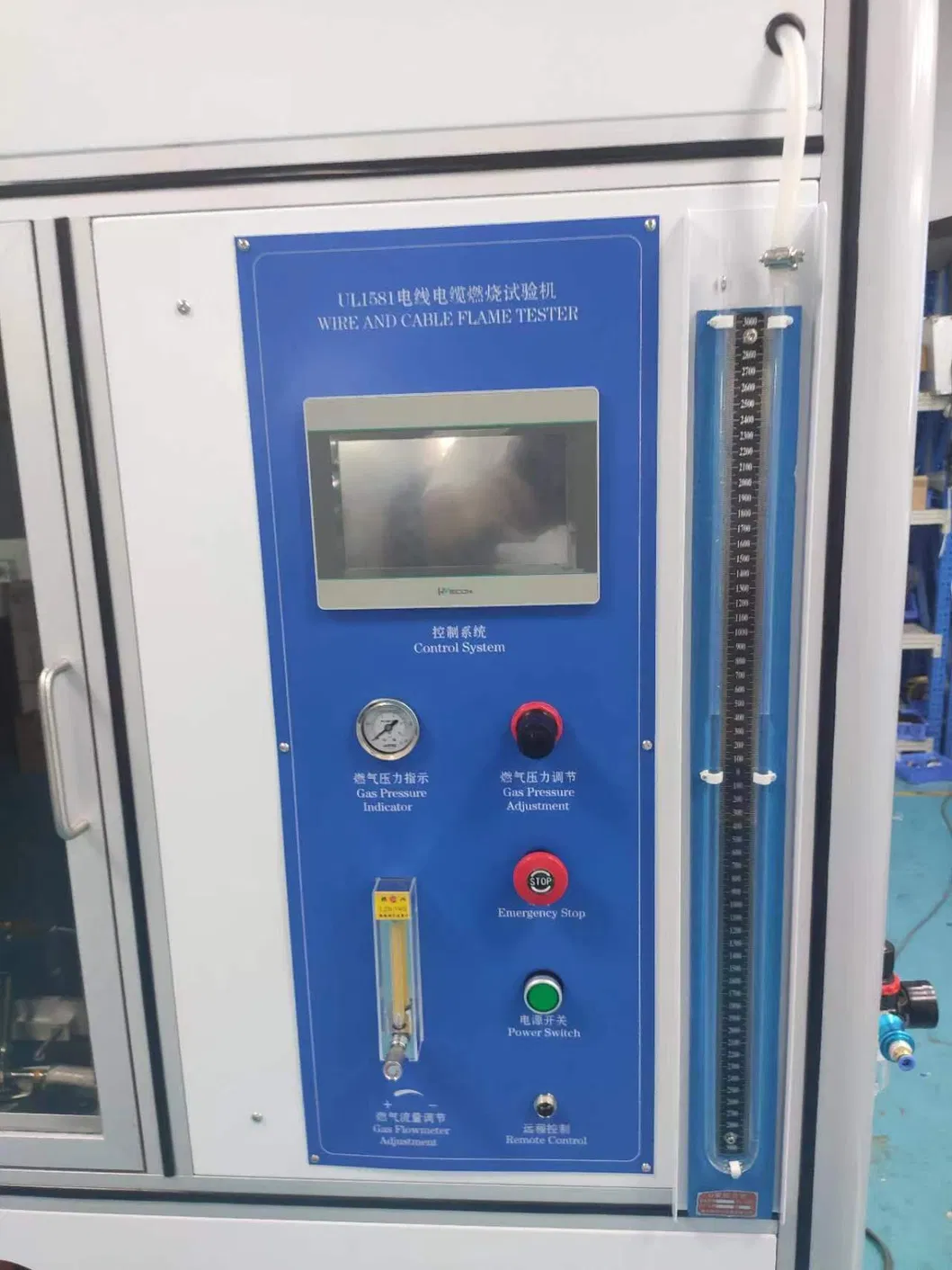

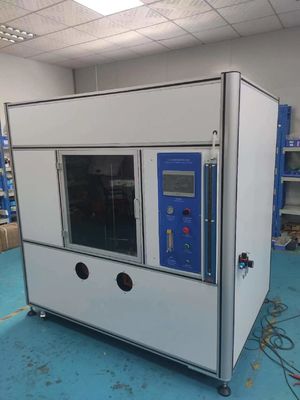

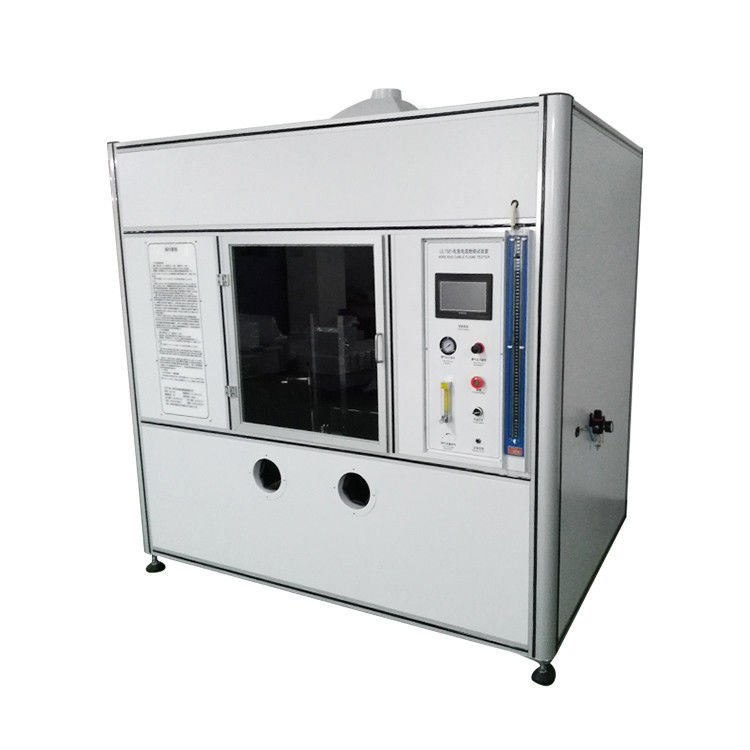

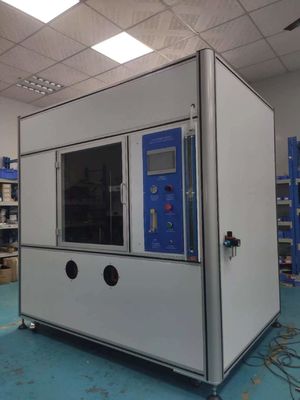

UL 1581 Wire And Cable Flame Test Chamber Leakage Test Machine 0

UL 1581 Wire And Cable Flame Test Chamber Leakage Test Machine 1

Product Name	UL1581 Wire and Cable Burning Test Machine
Box volume	≥4.0 m³. There are lights in the box and the system is controlled by a switch or a switch outside the box
Timer	0-99 minutes and 99 seconds can be set, and the minimum resolution is up to 0.01s
Main fixtures	Test stand and burning torch

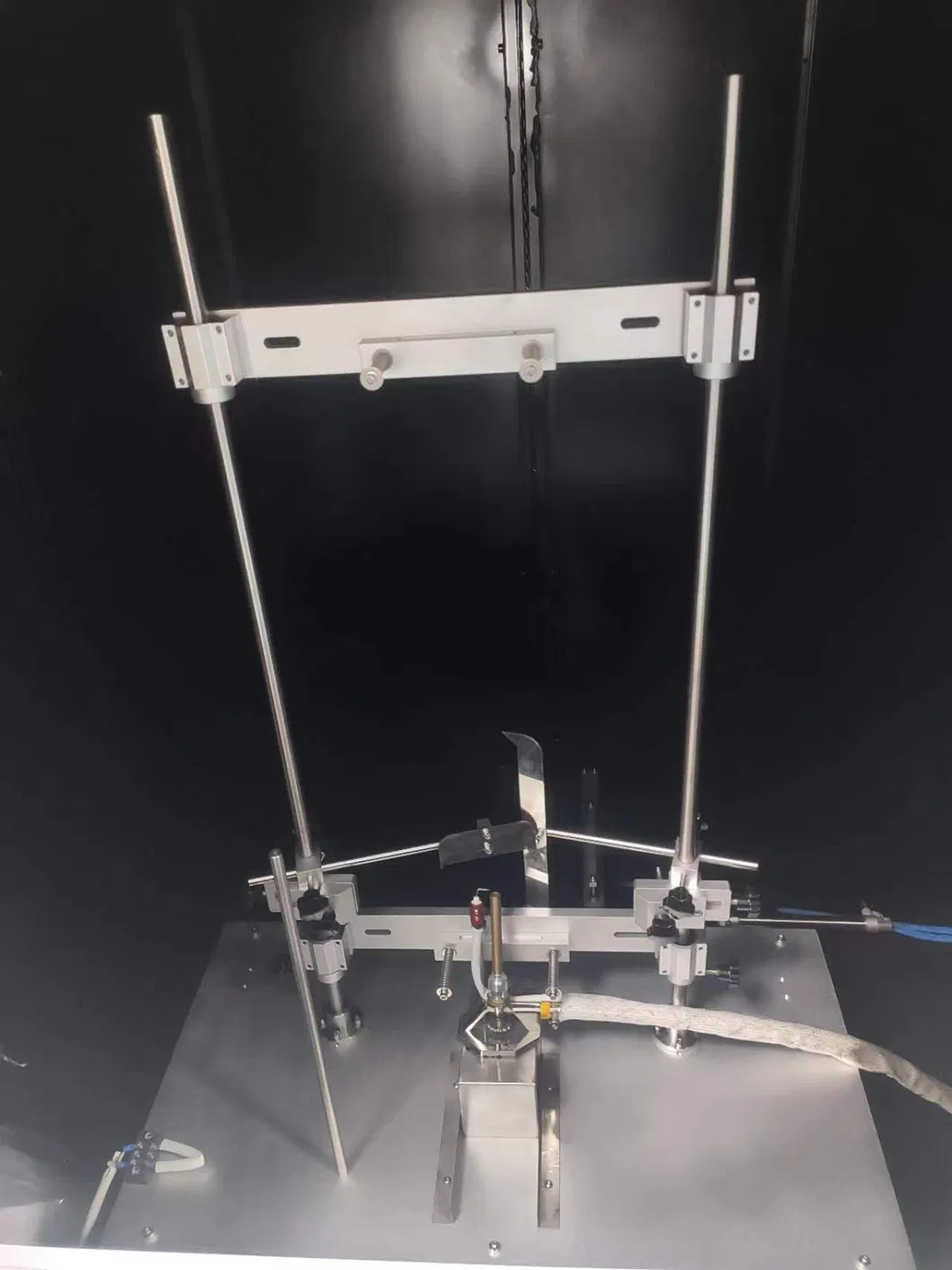

Test stand	Made of SUS304 stainless steel, divided into FT2 horizontal bracket and VW-1/FT1 vertical combustion test stand

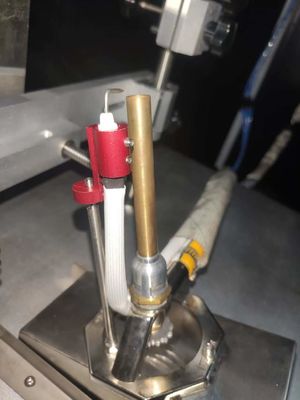

Combustion blow torch	Imported blowtorch, meet the requirements of ASTM D5025-05
Standard power	500W
Diameter of fire nozzle	0.90±0.03mm
Length of fire nozzle	1.60±0.05mm
Inner diameter of nozzle	9.5mm
Height of nozzle from air inlet	100mm±10mm
Gas	At least 98% methane purity
Flow meter range	1000ml/min

UL 1581 Wire And Cable Flame Test Chamber Leakage Test Machine 2

UL 1581 Wire And Cable Flame Test Chamber Leakage Test Machine 7

UL 1581 Wire And Cable Flame Test Chamber Leakage Test Machine 8

UL 1581 Wire And Cable Flame Test Chamber Leakage Test Machine 10
