Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber

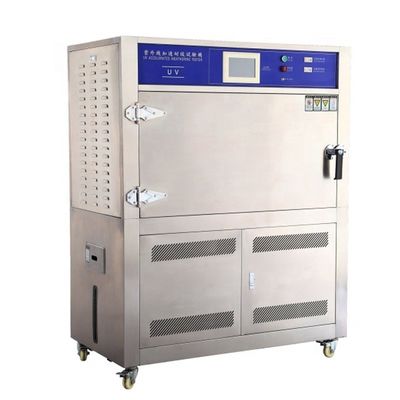

Name: Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-UV-A
Availability: InStock

Brand Name:	GC
Model Number:	GC-UV-A
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Temperature Range:

RT+10℃~70℃

Water Supply:

Automatic Water Supply System

Light Source:

UV-A 340nm, UV-B 313nm

Safety Features:

Emergency Stop Button, Over-temperature Protection

Rotation Speed:

5~10rpm

Irradiance Range:

0.5~1.5W/m²

Air Supply:

Automatic Air Supply System

Power Supply:

220V/50Hz

Specimen Size:

75mm X 150mm

Humidity Range:

50%~98%RH

Control System:

PLC Touch Screen Control

Exposure Time:

1~9999 Hours

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

aerospace Accelerated Weathering Machine

electronics Accelerated Weathering Machine

aerospace accelerated aging chamber

Product Description

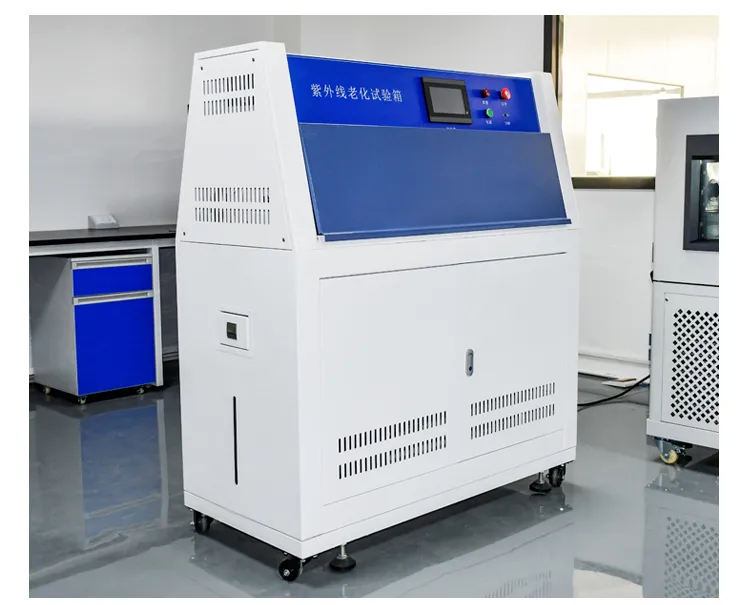

UV Aging Testing Chamber is a piece of equipment used to simulate the effects of long-term exposure to ultraviolet (UV) radiation on materials and products. It is commonly used in industries such as automotive, aerospace, and construction to test the durability and performance of materials, coatings, and products under UV exposure.
The chamber typically consists of a controlled environment where samples can be exposed to UV light, as well as other environmental factors such as temperature and humidity. This allows manufacturers to assess how their products will withstand UV radiation over time, and to make any necessary adjustments to improve their durability and longevity.

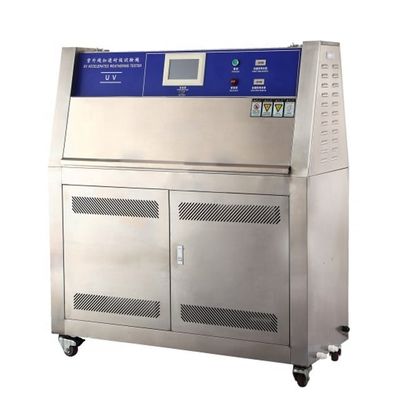

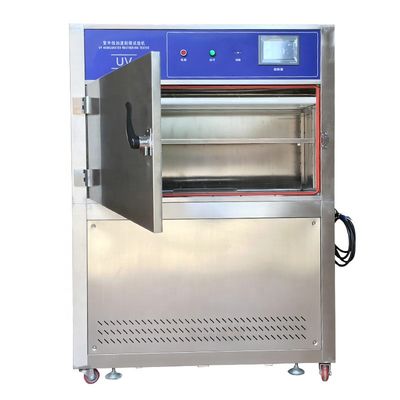

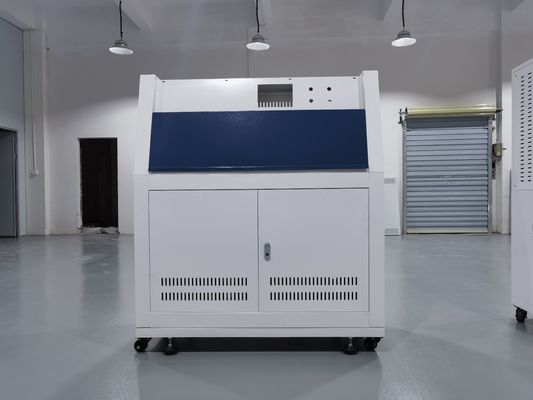

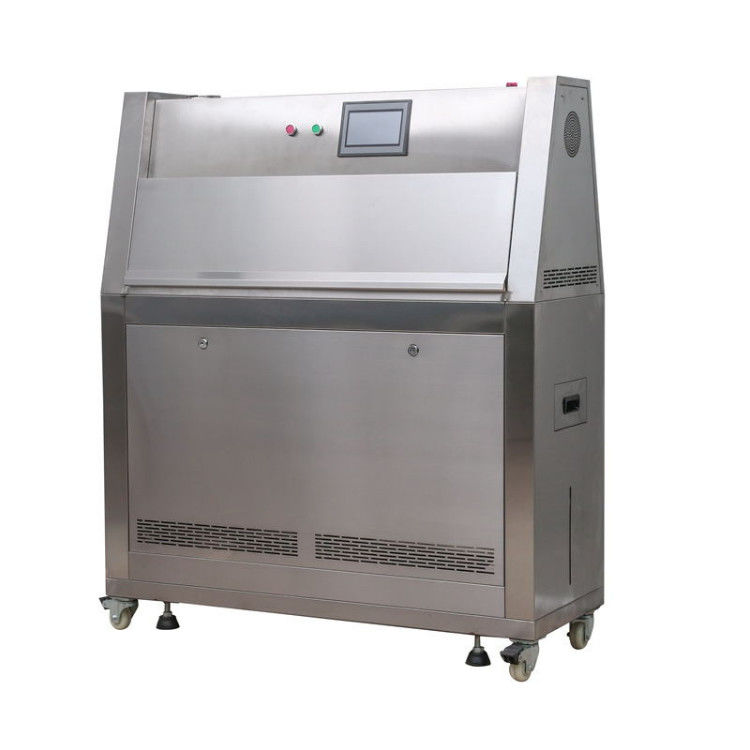

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 0

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 1

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 2

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 3

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 4

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 5

Product Name	UV Aging Test Chamber
Dimensions of the working chamber (cm)	4511750
Boundary dimension(cm)	70135145
Power	4.0(KW)
Temperature range	Rt+10ºC~70ºC
Humidity range	≥95%R.H
Distance between lamps	35mm
Distance between sample and lamp	50mm
Support quantity of the sample	Length 300mm* width 75mm, about 48 pieces
Ultraviolet wavelengths	290nm~400nm UV-A340,UV-B313,UV-C351( instructions at time of order )
Lamp power	40W
Controllor	South Korean ternary touch screen microcomputer controller
Illumination heating system	Fully independent system, nickel-chromium alloy electric heating heater

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 6

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 12

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 13

Aerospace Electronics Accelerated Weathering Machine UV Aging Test Chamber 14
