550W UL1581 Wire Flame Test Chamber Horizontal Burning Tester Customized

Name: 550W UL1581 Wire Flame Test Chamber Horizontal Burning Tester Customized
Brand: Guangdong Guangce Instrument Technology Co., Ltd
SKU: GC-UL-1581
Availability: InStock

Brand Name:	GC
Model Number:	GC-UL-1581
MOQ:	1 Set
Price:	Negotiated
Delivery Time:	In stock
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

GC-UL-1581

Mass Scope Of Workpiece:

<900kg

Type:

Flame Retardant Test Chamber

Maxcapacity:

>1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Static Load

Display:

Digital

Control:

Manual Control

Weight:

100-500Kg

Power Source:

AC220V

Oil Cylinder Position:

Top

Iameter Of Fire Nozzle:

0.90±0.03mm

Length Of Fire Nozzle:

1.60±0.05mm

Gas:

At Least 98% Methane Purity

Standard Power:

550W

Transport Package:

Wooden Package

Trademark:

Origin:

China

Package Size:

1.00cm * 1.00cm * 1.00cm

Package Gross Weight:

220.000kg

Customization:

Available

Warranty:

1 Year

Max Diameter Of Workpiece:

<500mm

Packaging Details:

Wooden package

Supply Ability:

100 Sets

Highlight:

customized Flame Test Chamber

550W Flame Test Chamber

550W horizontal burning tester

Product Description

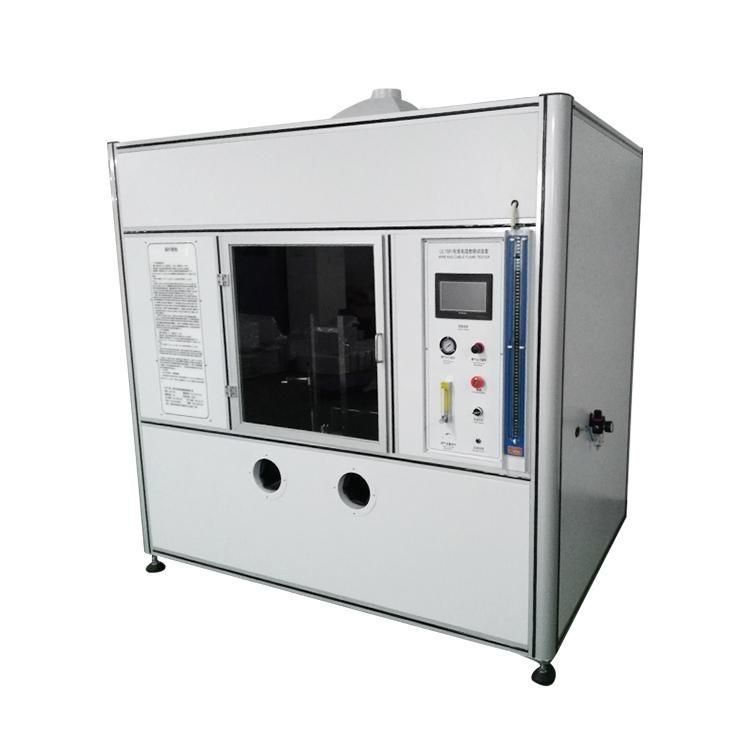

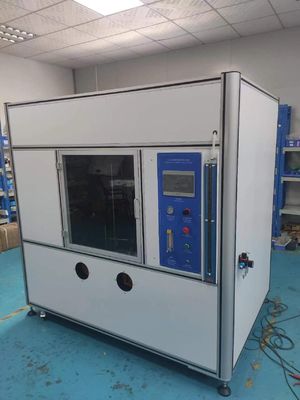

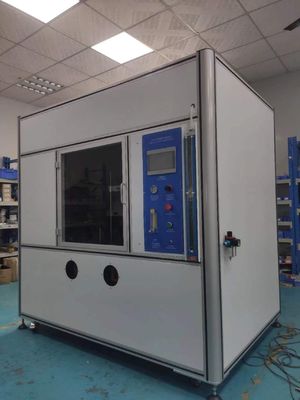

-The UL1581 Wire and Cable Burning Test Machine is a specialized equipment used to assess the flammability characteristics of wires and cables. This machine is designed to perform the burning test as per the UL1581 standard, which is a widely recognized test method for evaluating the fire resistance of wires and cables.
-The machine consists of a test chamber with controlled temperature and airflow, a sample holder, and an ignition source.During the test, the wire or cable sample is securely mounted in the sample holder and exposed to a controlled flame generated by the ignition source. The temperature and airflow conditions within the test chamber can be adjusted to simulate various real-life scenarios.

Product Name	UL1581 Wire and Cable Burning Test Machine
Box volume	≥4.0 m³. There are lights in the box and the system is controlled by a switch or a switch outside the box
Timer	0-99 minutes and 99 seconds can be set, and the minimum resolution is up to 0.01s
Main fixtures	Test stand and burning torch

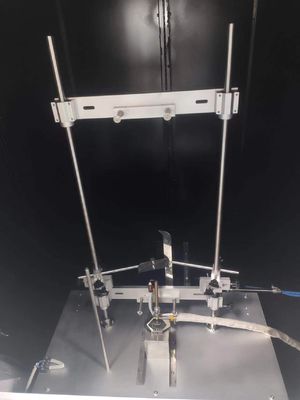

Test stand	Made of SUS304 stainless steel, divided into FT2 horizontal bracket and VW-1/FT1 vertical combustion test stand

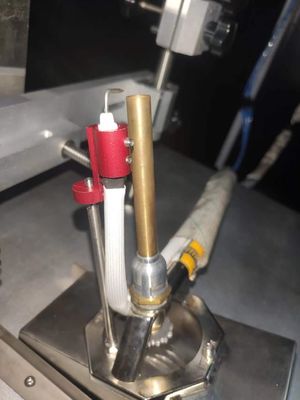

Combustion blow torch	Imported blowtorch, meet the requirements of ASTM D5025-05
Standard power	500W
Diameter of fire nozzle	0.90±0.03mm
Length of fire nozzle	1.60±0.05mm
Inner diameter of nozzle	9.5mm
Height of nozzle from air inlet	100mm±10mm
Gas	At least 98% methane purity
Flow meter range	1000ml/min
